| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 600MHz | |
| ● | 3.0dB Bandwidth | 80MHz (560 ~ 640MHz) | |
| ● | Insertion Loss @ F0 | ≤2.5dB @ 600MHz | |
| ● | VSWR | ≤1.5:1 @ 580 ~ 620MHz | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 510MHz | ≥40dB @ 700 ~ 2000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

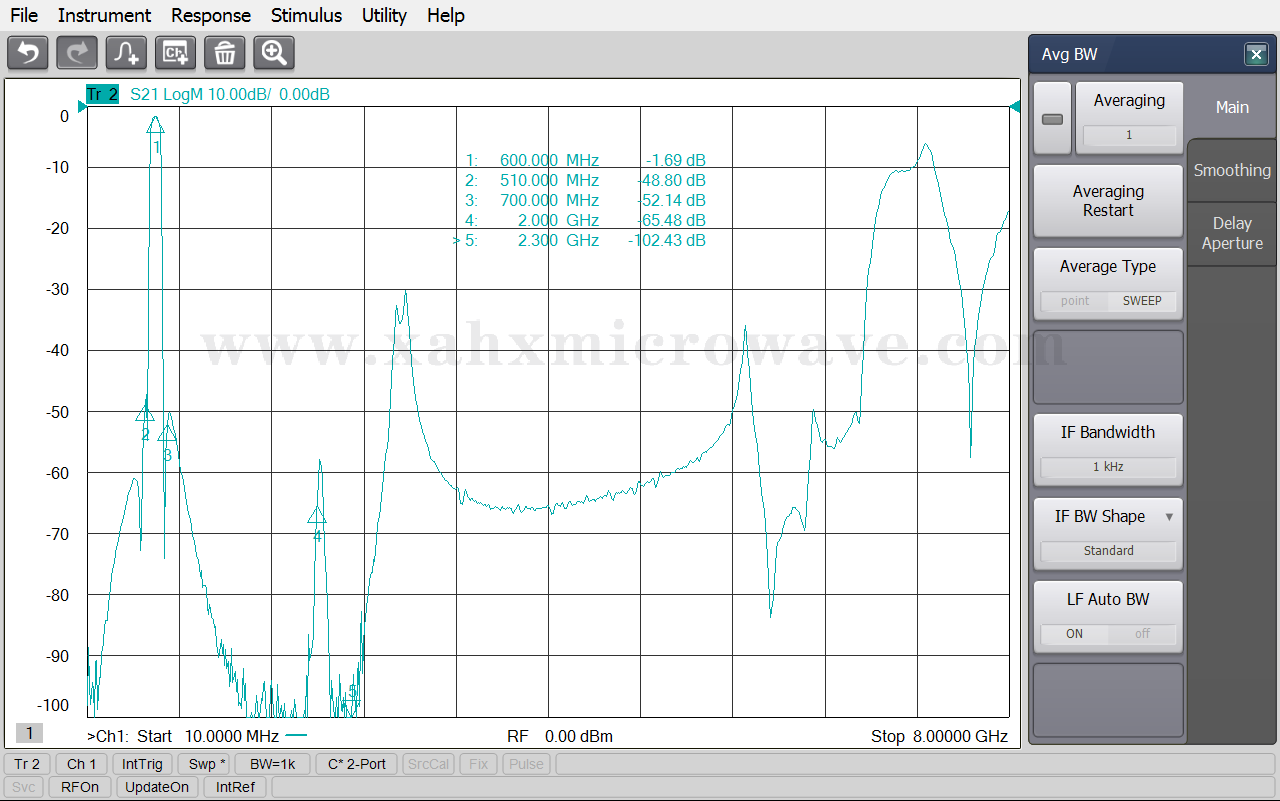

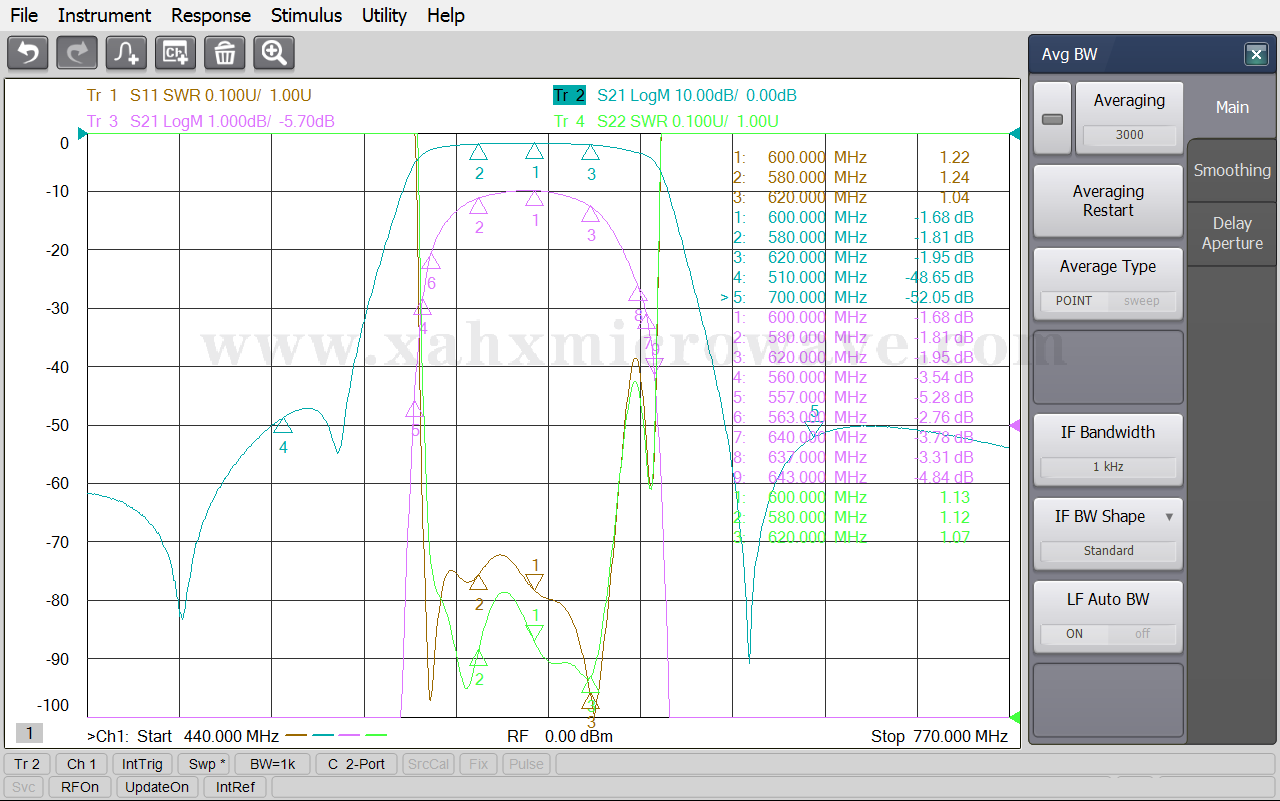

| Test Curve | |||
