| Technical Data Sheet | ||
| ● | Center Frequency(F0) | 7.0GHz |
| ● | Pass Band Bandwidth | ±0.5GHz (6.5 ~ 7.5GHz) |
| ● | Pass Band Insertion Loss | ≤0.7dB |
| ● | Pass Band Ripple | ≤0.3dB |
| ● | Pass Band VSWR | ≤1.15:1 |
| ● | Stop Band Rejection | ≥40dB @ F0±1.0GHz (5.2 ~ 6.0GHz , 8.0 ~ 8.8GHz) |
| ≥80dB @ F0±1.8GHz (DC ~ 5.2GHz , 8.8 ~ 22GHz) | ||
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | -30℃ ~ +70℃ |

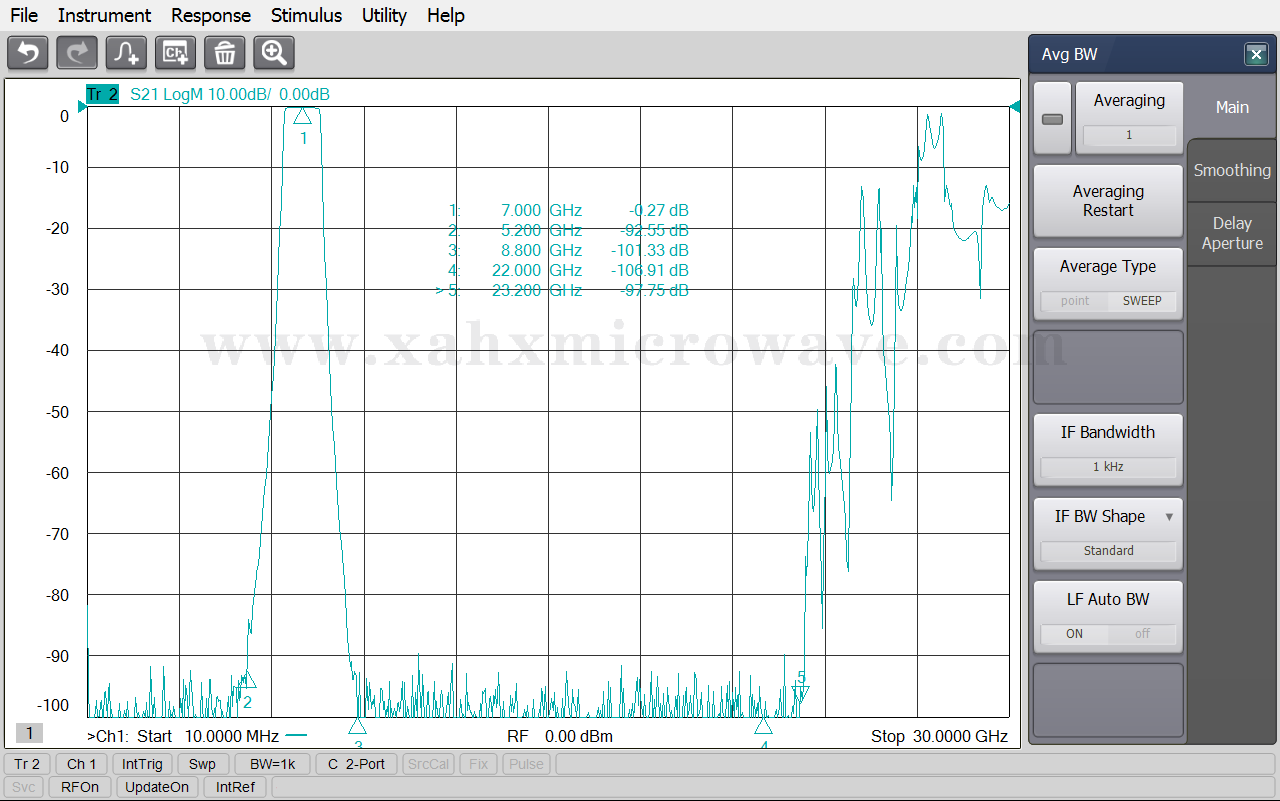

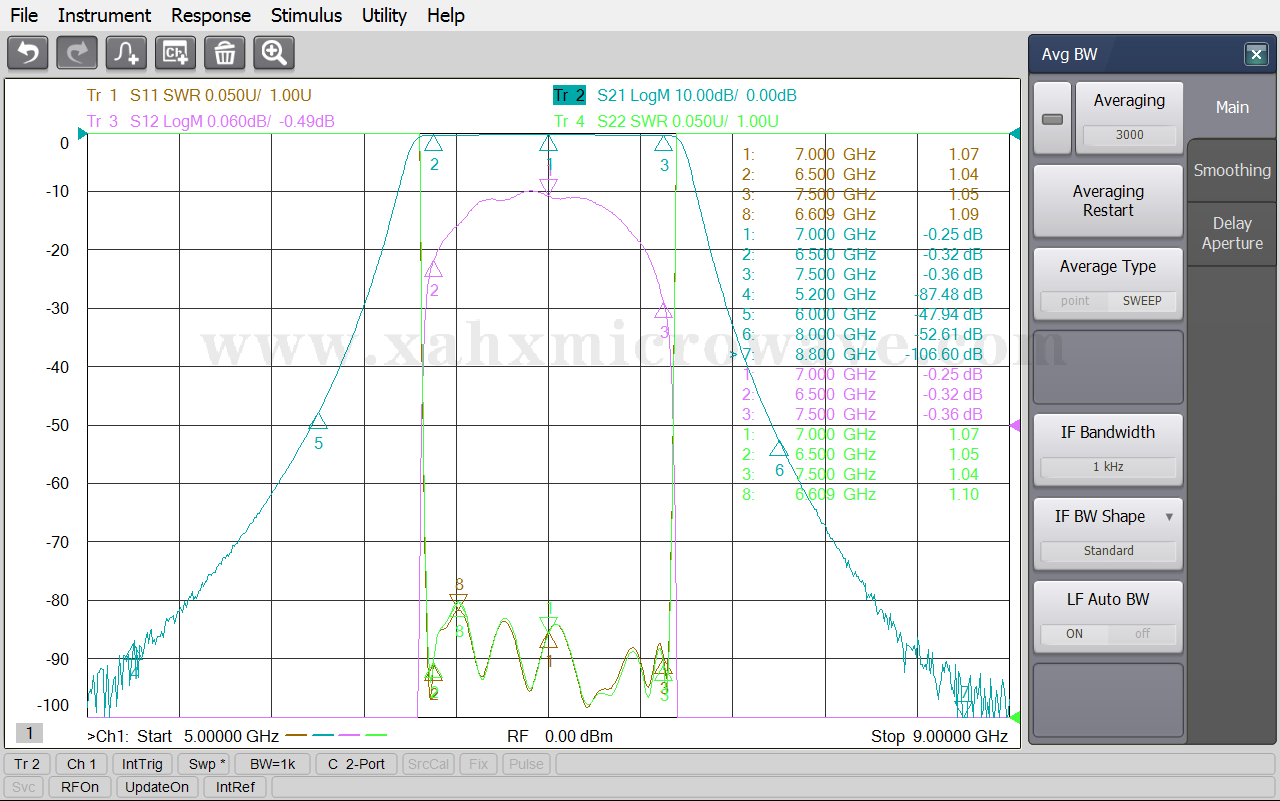

| Test Curve | ||
