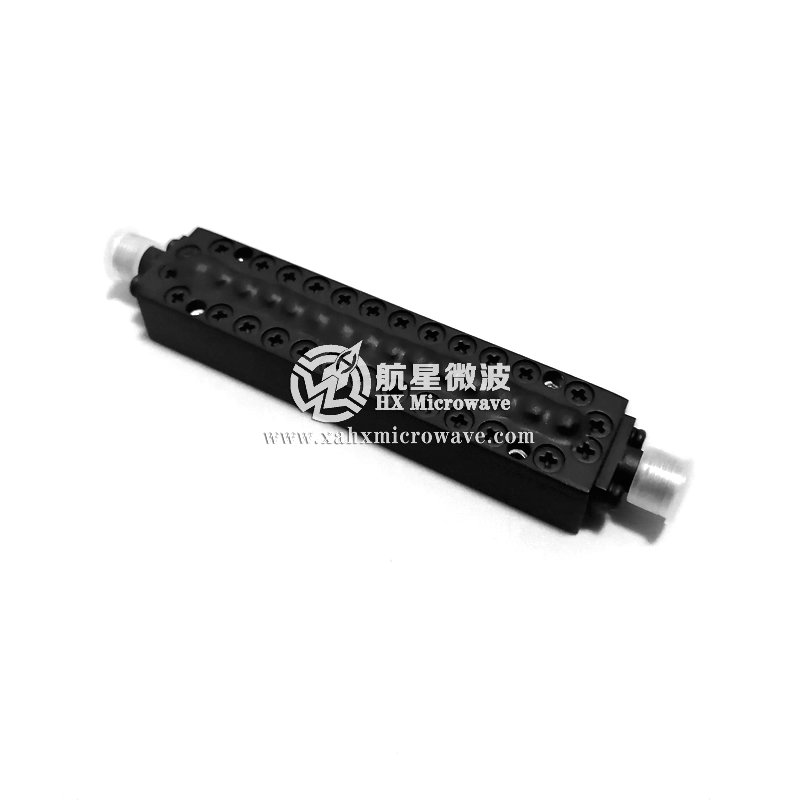

| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 20GHz | |
| ● | 3.0dB Bandwidth | 10GHz (15 ~ 25GHz) | |
| ● | Pass Band Bandwidth | 9.4GHz (15.3 ~ 24.7GHz) | |
| ● | Pass Band Insertion Loss | ≤0.5dB @ 20GHz | ≤0.8dB @ 15.3 ~ 24.7GHz |
| ● | Pass Band Ripple | ≤0.4dB @ 15.3 ~ 24.7GHz | |
| ● | Pass Band VSWR | ≤1.3:1 @ 15.3 ~ 24.7GHz | |
| ● | Stop Band Attenuation | ≥80dB @ DC ~ 12.2GHz | ≥35dB @ 26 ~ 27.5GHz |
| ≥35dB @ 12.2 ~ 14GHz | ≥80dB @ 27.5 ~ 34GHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5W Max. | |
| ● | Connectors | 2.92mm(K)-Female | |
| ● | Surface Finish | Painted Black | |
| Test Curve | |||
