Technical Data Sheet
●	Center Frequency(F0)	21.5GHz
●	Pass Band Frequency	21 ~ 22GHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.25dB
●	Pass Band VSWR	≤1.22:1
●	Stop Band Rejection	≥80dB @ DC ~ 20GHz  ≥80dB @ 23 ~ 40GHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

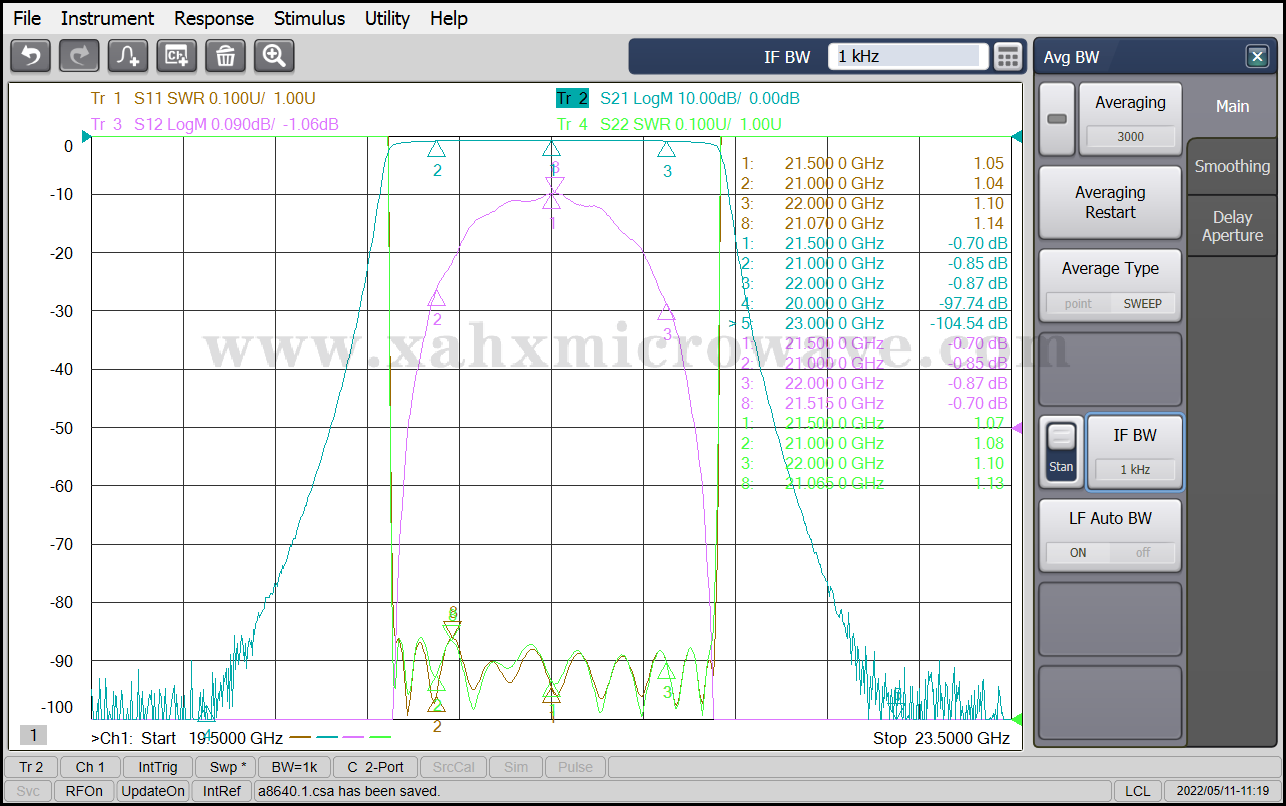

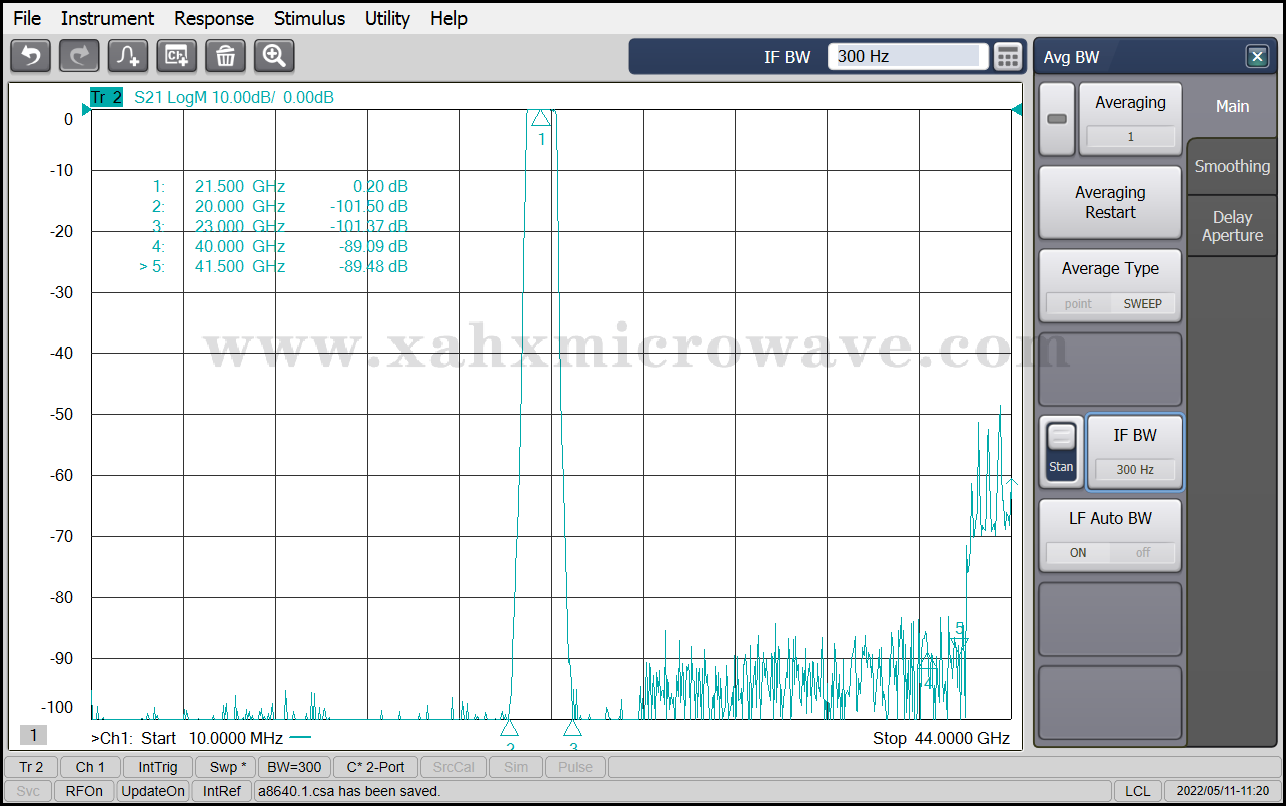

Test Curve
