Technical Data Sheet
●	Pass Band Frequency	DC ~ 300MHz
●	Pass Band Insertion Loss	≤2.5dB
●	Pass Band VSWR	≤1.5:1
●	Stop Band Rejection	≥40dB @ 400 ~ 1000MHz
●	Impedance	50 Ohms
●	Power Handling	1.0W Max.
●	Connectors	SMA-Male / SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

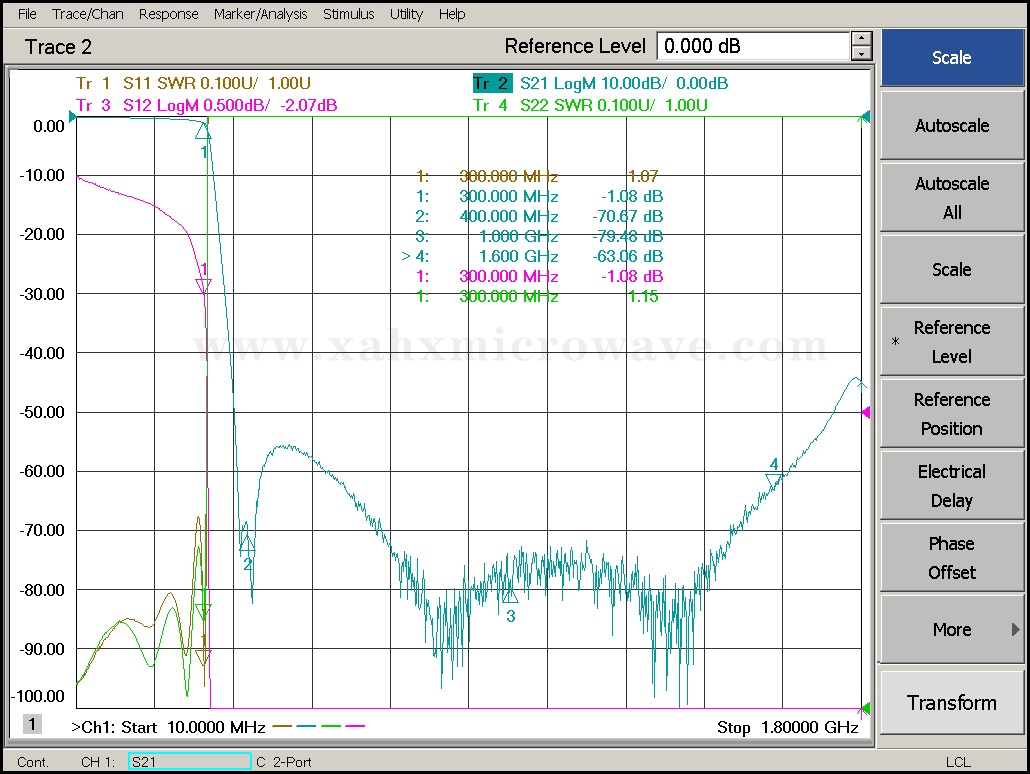

Test Curve
