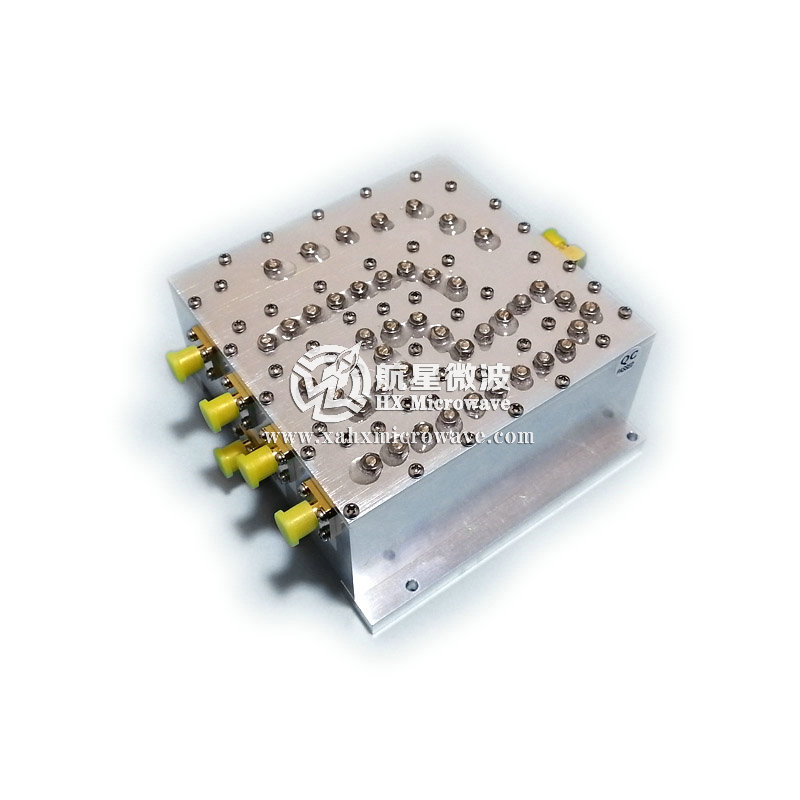

Frequency Combiner/Multiplexer

840-950MHz 1400-1448MHz 1520-1620MHz 2400-2500MHz 5700-5900MHz five-band combiner

P/N：HXHLQ-H5A13
Pass Band Frequency：840-950MHz 1400-1448MHz 1520-1620MHz 2400-2500MHz 5700-5900MHz
Ports Isolation：≥40dB
Connectors：SMA-Female
Product description: ♦isolation of high，high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency Are available upon request all kin
PDF technical index download

Technical Data Sheet
P/N	Parameters	P1	P2	P3	P4	P5
1	Frequency Range	840~950MHz	1400~1448MHz	1520~1620MHz	2400~2500MHz	5700~5900MHz
2	Insertion Loss	≤1.0dB	≤1.5dB	≤1.5dB	≤1.0dB	≤1.0dB
3	Ports Isolation	≥40dB
4	VSWR	≤1.7:1
5	Power Handling	20W
6	Connectors	SMA-Female
7	Ports Impedance	50 OHM
8	Temperature	-10℃~+60℃
9	Surface Finish	Natural Conductive Oxidation
Test Curve
