Cavity Band Rejection Filter

  • 777-787MHz Cavity Band Rejection Filter

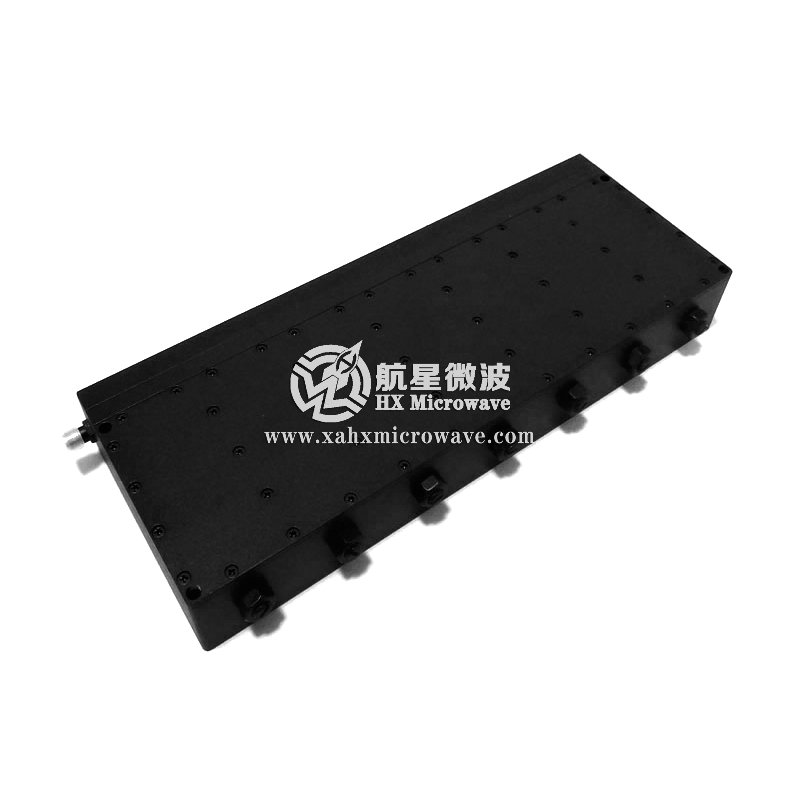

777-787MHz Cavity Band Rejection Filter

777-787MHz Cavity Band Rejection Filter

  • P/N：HXLBQ-DZA108
  • Stop Band Frequency:777-787MHz
  • Stop Band Attenuation：≥50dB
  • Connectors：SMA-Female
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download
Technical Data Sheet
● Stop Band Frequency 777～787MHz
● Stop Band Attenuation ≥50dB
● Pass Band Frequency DC～757MHz & 807～2300MHz
● Pass Band Insertion Loss ≤1.0dB
● Pass Band VSWR ≤1.5:1
● Impedance 50 ohms
● Surface Finish Black Paint
● Power Handling ≤50W
● Connectors SMA-Female
Test Curve
