Cavity Band Rejection Filter

  • 5150-5250MHz Cavity Band Rejection Filter

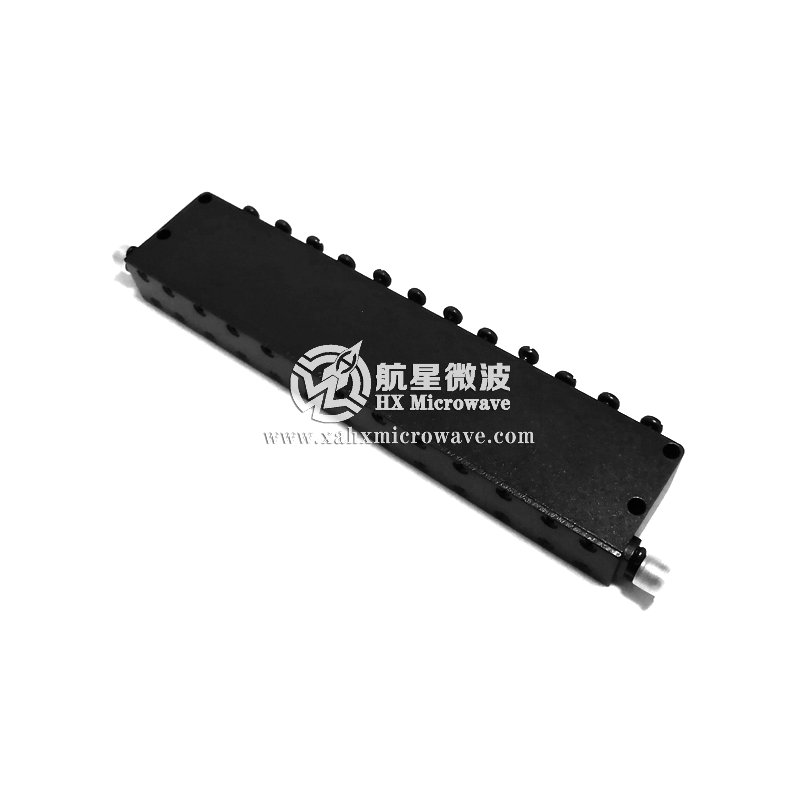

5150-5250MHz Cavity Band Rejection Filter

5150-5250MHz Cavity Band Rejection Filter

  • P/N：HXLBQ-DZA137
  • Stop Band Frequency：5150-5250MHz
  • Stop Band Attenuation：≥45dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Stop Band Frequency 5150～5250MHz
● Stop Band Attenuation ≥45dB
● Pass Band Frequency DC～5125MHz & 5275～8000MHz
● Pass Band Insertion Loss ≤4.0dB
● Pass Band VSWR ≤1.7:1
● Impedance 50 ohms
● Surface Finish Black Paint
● Power Handling ≤50W
● Connectors SMA-Female
Test Curve
