High Pass Filter

  • 2-18.5GHz High Pass Filter

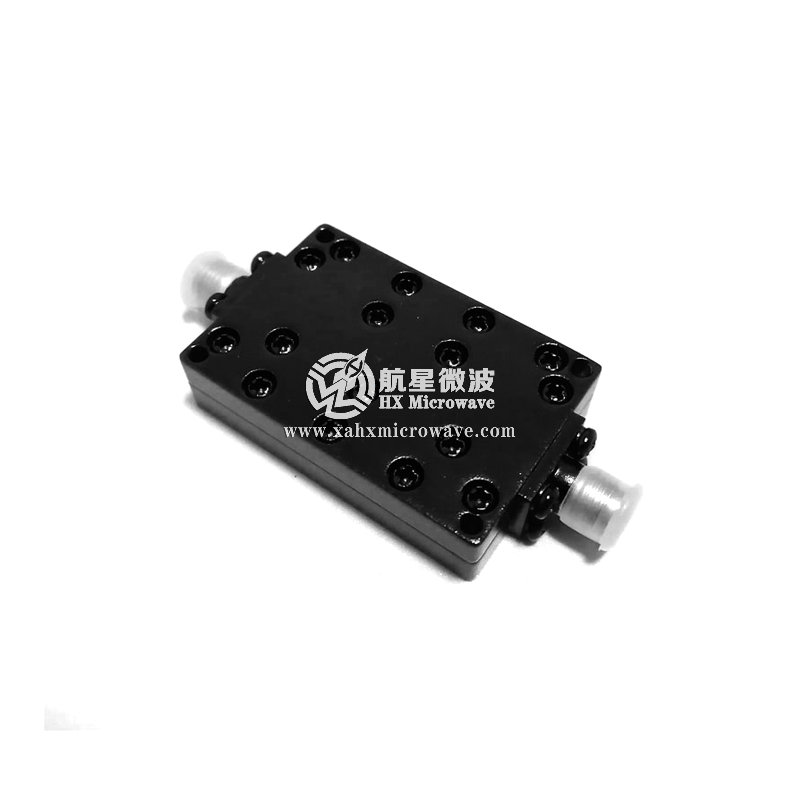

2-18.5GHz High Pass Filter

2-18.5GHz High Pass Filter

  • P/N：HXLBQ-GTA88
  • Pass Band Frequency：2-18.5GHz
  • Stop Band Attenuation：≥50dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Cut Off Frequency 2.0GHz
● Pass Band Frequency 2.0～18.5GHz
● Pass Band Insertion Loss ≤1.5dB @ 2.0～2.1GHz
≤1.0dB @ 2.1～18.5GHz
● Pass Band VSWR ≤1.5:1
● Stop Band Attenuation ≥50dB @ DC～1.52GHz
● Impedance 50 ohms
● Power ≤15W
● Connectors SMA-Female
Test Curve
