Cavity Band Rejection Filter

  • 818-824MHz Cavity Band Rejection Filter

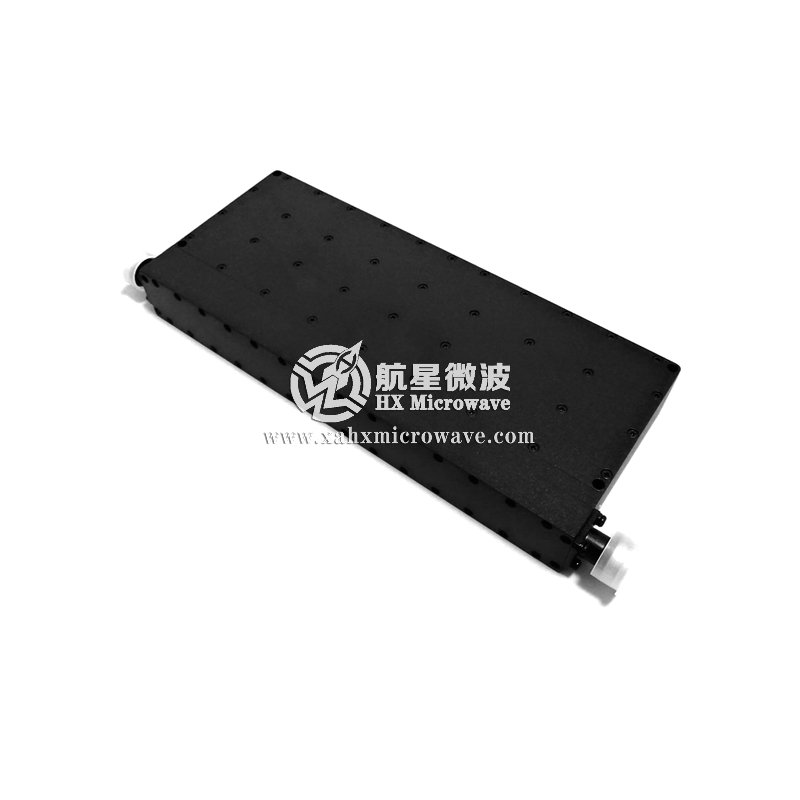

818-824MHz Cavity Band Rejection Filter

818-824MHz Cavity Band Rejection Filter

  • P/N：HXLBQ-DZA142
  • Stop Band Frequency:818-824MHz
  • Stop Band Attenuation：≥40dB
  • Connectors：N-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Stop Band Frequency 818 ~ 824MHz
● Stop Band Attenuation ≥40dB
● Pass Band Frequency DC ~ 800MHz , 842 ~ 2500MHz
● Pass Band Insertion Loss ≤1.0dB (at the corner: 1.5dB Max.)
● Pass Band VSWR ≤1.5:1 @ DC ~ 800MHz , 842 ~ 2300MHz
≤1.7:1 @ 2300 ~ 2500MHz
● Impedance 50 Ohms
● Power Handling 20W Max.
● Connectors N-Female
● Surface Finish Painted Black
Test Curve
