Frequency Combiner/Multiplexer

  • 825-835MHz 870-880MHz 889-915MHz 934-960MHz Four frequency combiner

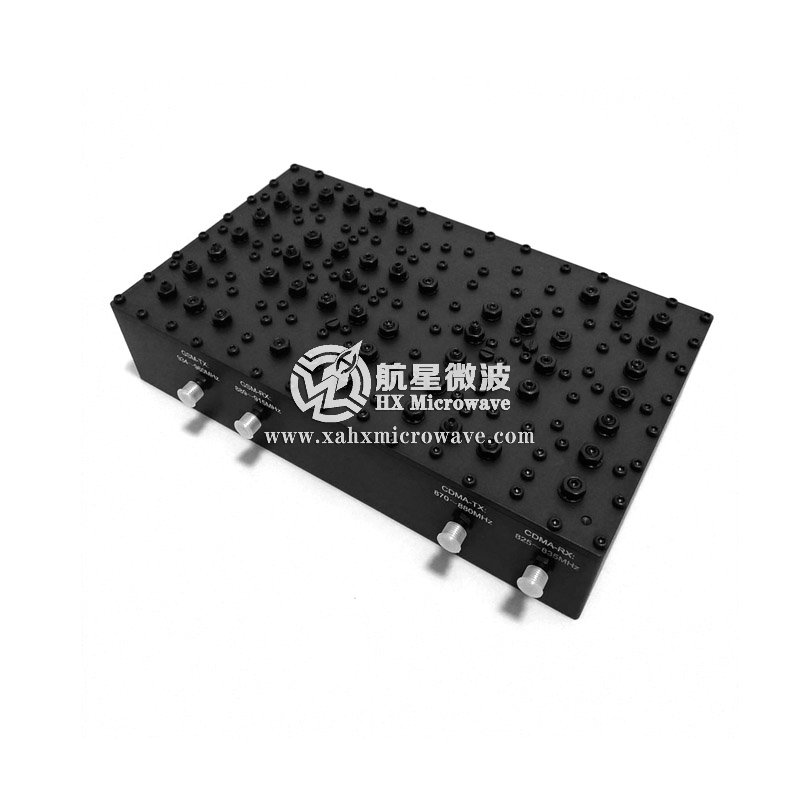

825-835MHz 870-880MHz 889-915MHz 934-960MHz Four frequency combiner

825-835MHz 870-880MHz 889-915MHz 934-960MHz Four frequency combiner

  • P/N：HXHLQ-H4A33
  • Pass Band Frequency：825-835MHz 870-880MHz 889-915MHz 934-960MHz
  • Isolation：≥60dB
  • Connectors：SMA-Female
  • Product description: ♦isolation of high，high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency Are available upon request all kin
  • PDF technical index download
Technical Data Sheet
P/N Parameters CDMA-RX CDMA-TX GSM-RX GSM-TX
1 Frequency Range 825～835MHz 870～880MHz 889～915MHz 934～960MHz
2 Insertion Loss ≤1.8dB ≤1.8dB ≤1.8dB ≤1.8dB
3 VSWR ≤1.3:1 ≤1.3:1 ≤1.3:1 ≤1.3:1
4 Rejection ≥60dB@870～880MHz ≥60dB@825～835MHz ≥60dB@825～835MHz ≥60dB@825～835MHz
≥60dB@889～915MHz ≥60dB@889～915MHz ≥60dB@870～880MHz ≥60dB@870～880MHz
≥60dB@934～960MHz ≥60dB@934～960MHz ≥60dB@934～960MHz ≥60dB@889～915MHz
5 Surface Finish Black Paint
6 Connectors ANT:N-Female ; Other:SMA-Female
Test Curve
