Technical Data Sheet
●	Stop Band Frequency	863 ~ 873MHz
●	Stop Band Attenuation	≥40dB
●	Pass Band Frequency	DC ~ 848MHz , 888 ~ 2600MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band VSWR	≤1.5:1
●	Impedance	50 Ohms
●	Power	30W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

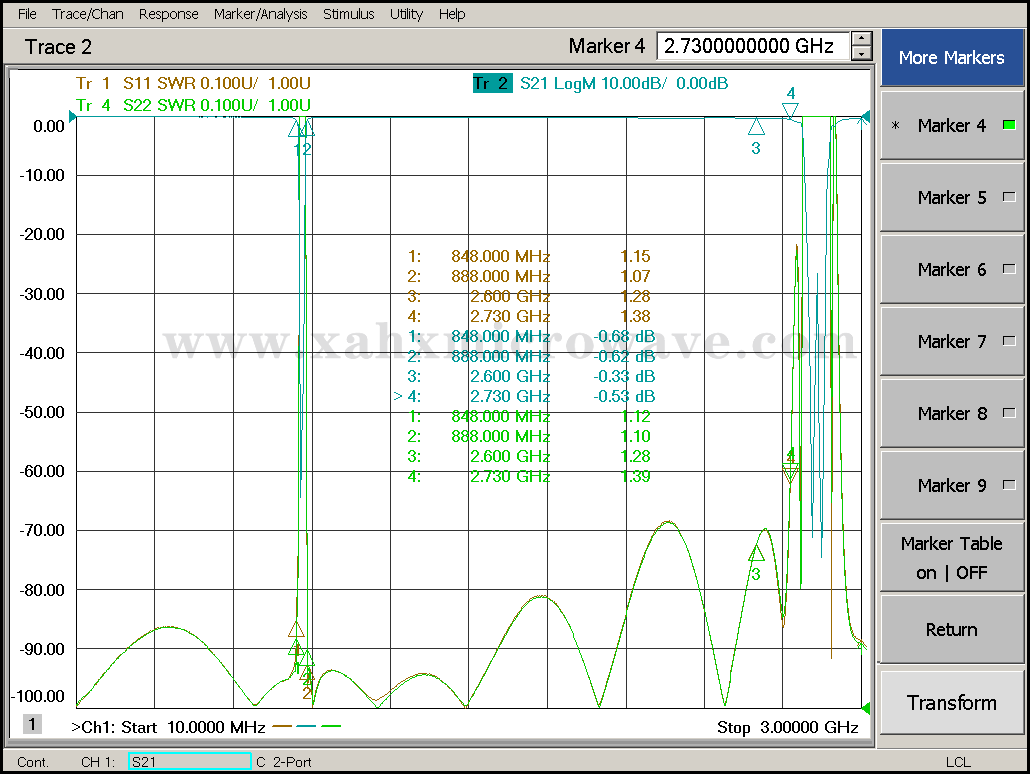

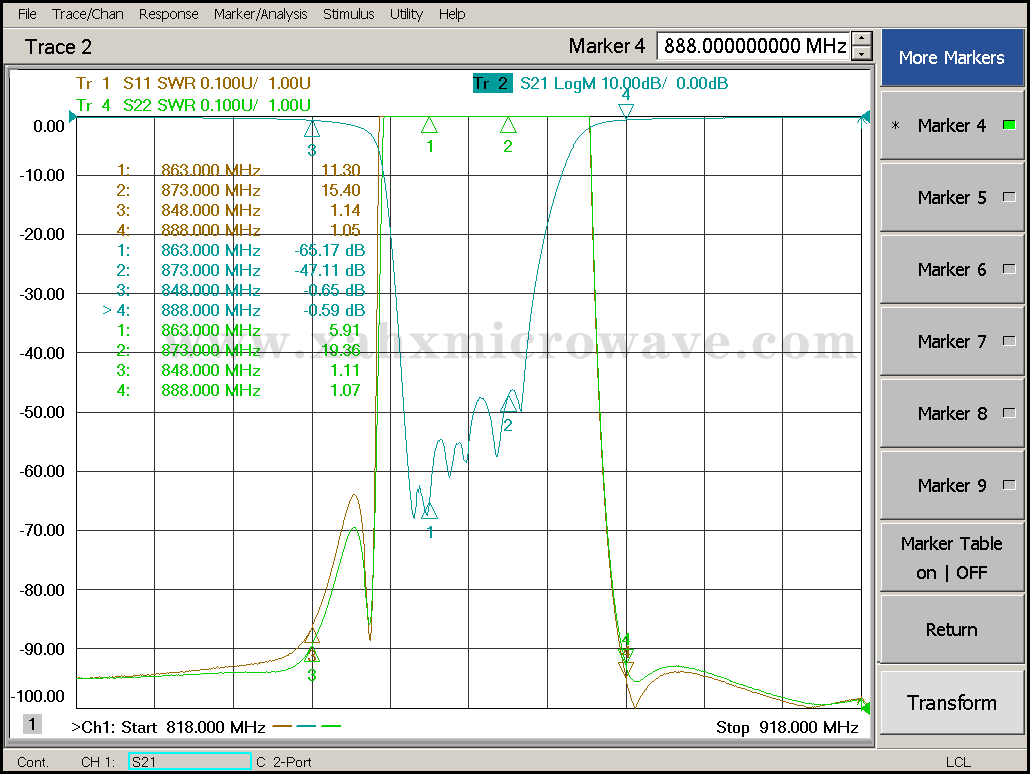

Test Curve
