| Technical Data Sheet | ||
| ● | Stop Band Frequency | 859 ~ 930MHz |
| ● | Stop Band Attenuation | ≥50dB |
| ● | Pass Band Frequency | DC ~ 824MHz , 965 ~ 2700MHz |
| ● | Pass Band Insertion Loss | ≤1.5dB |
| ● | Pass Band VSWR | ≤1.7:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | 0℃ ~ +40℃ |

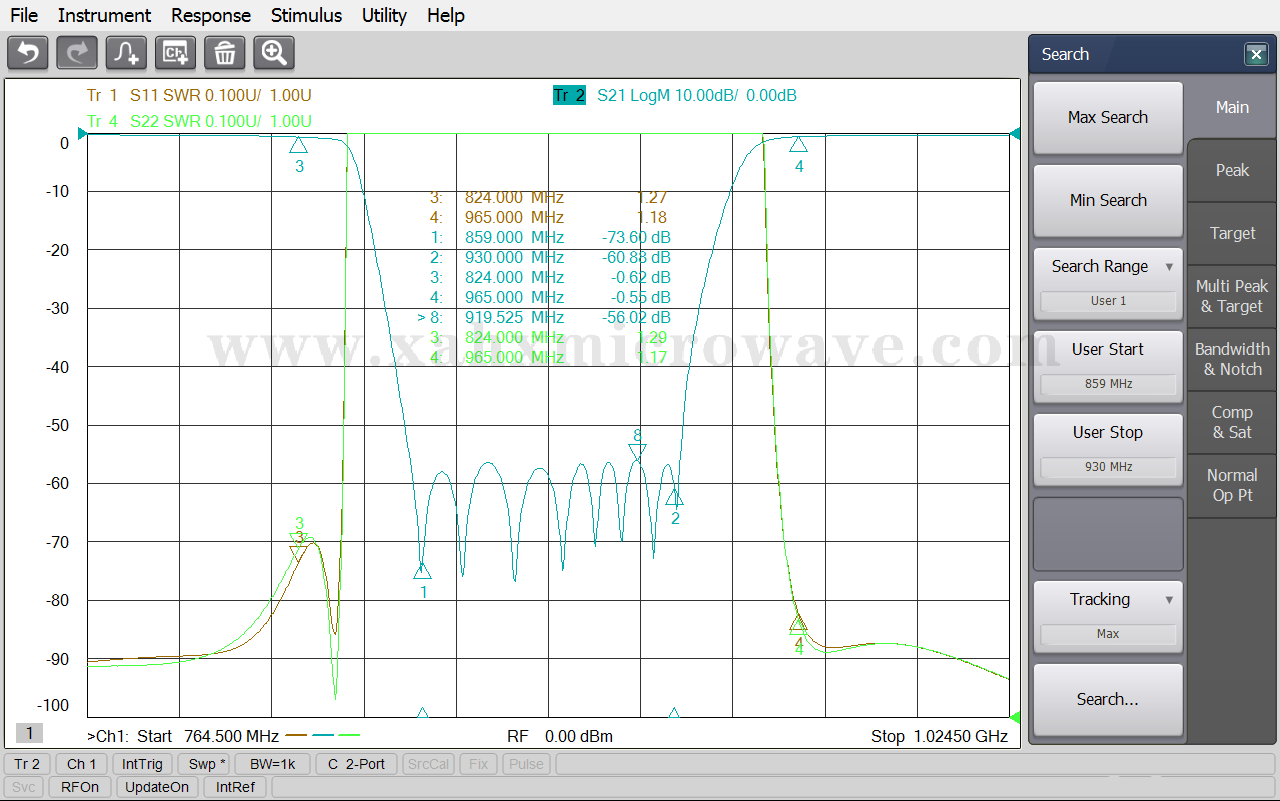

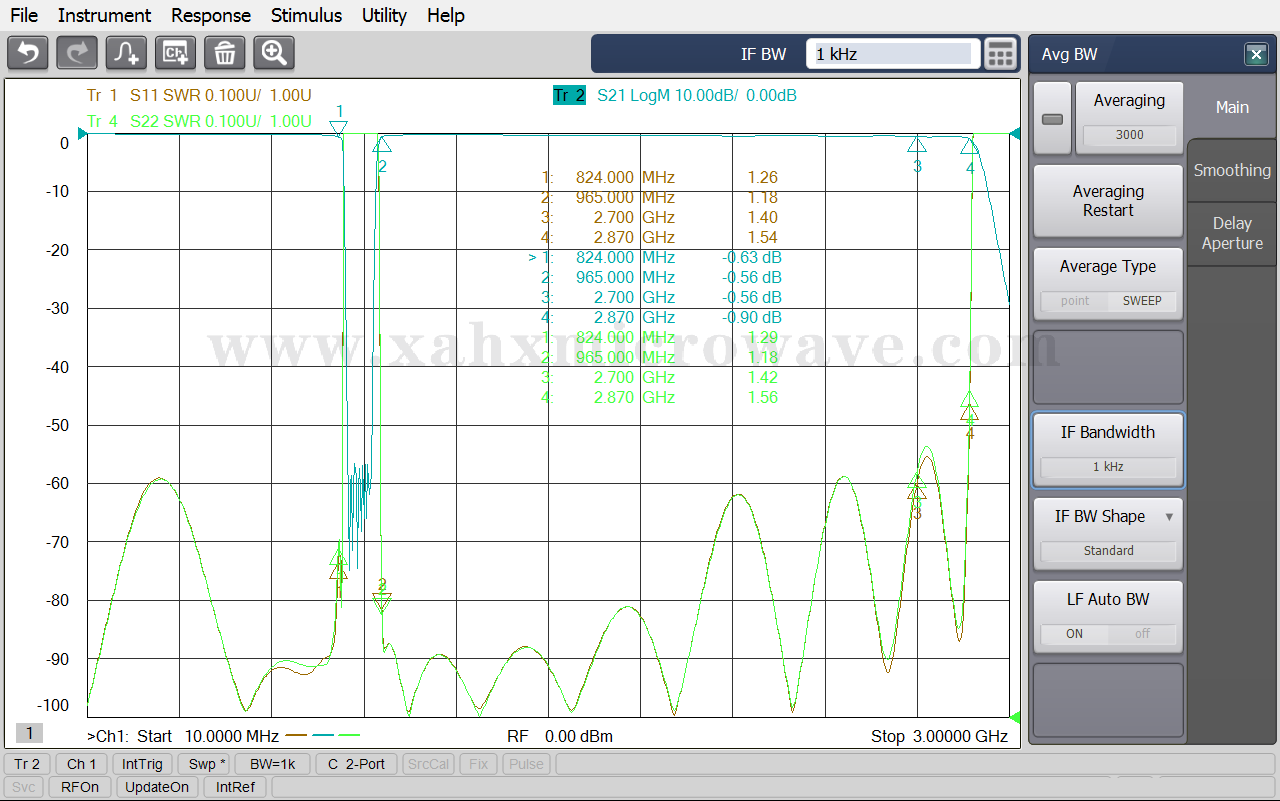

| Test Curve | ||
