| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 10GHz | |
| ● | 3.0dB Bandwidth | 4.0GHz (8.0 ~ 12GHz) | |
| ● | Pass Band Bandwidth | 3.5GHz (8.25 ~ 11.75GHz) | |
| ● | Pass Band Insertion Loss | ≤0.5dB @ 10GHz | ≤0.8dB @ 8.25 ~ 11.75GHz |
| ● | Pass Band Ripple | ≤0.4dB @ 8.25 ~ 11.75GHz | |
| ● | Pass Band VSWR | ≤1.3:1 @ 8.25 ~ 11.75GHz | |
| ● | Stop Band Attenuation | ≥80dB @ DC ~ 5.0GHz | ≥35dB @ 12.6 ~ 13.4GHz |
| ≥35dB @ 5.0 ~ 7.0GHz | ≥80dB @ 13.4 ~ 20GHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

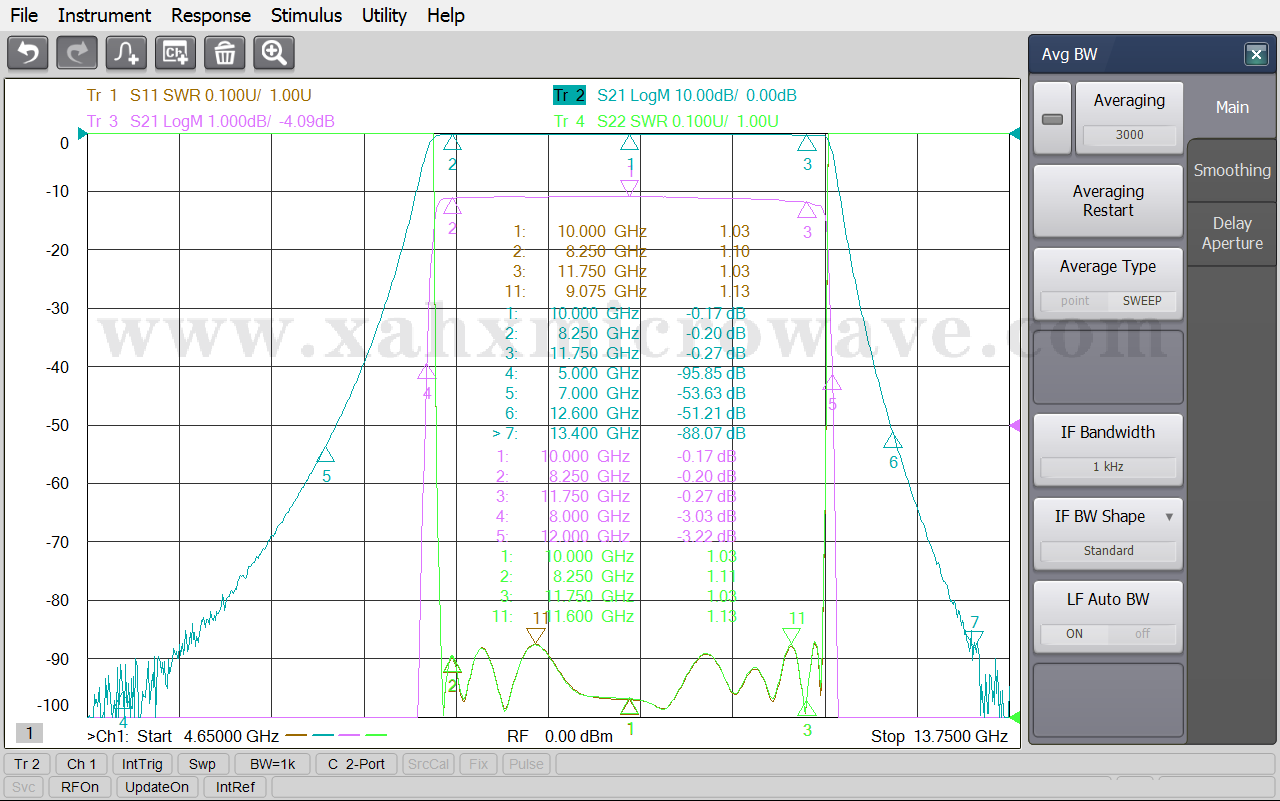

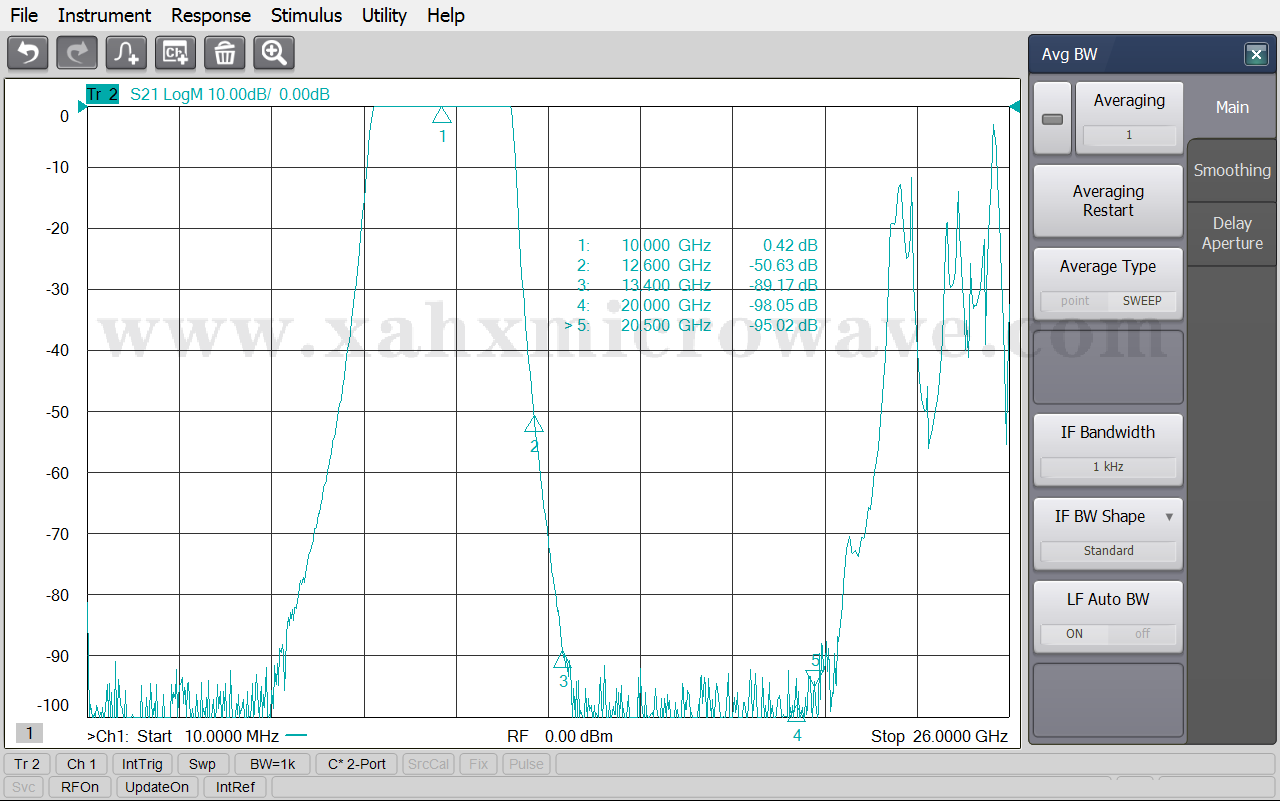

| Test Curve | |||
