Technical Data Sheet
●	Stop Band Frequency	704～746MHz
●	Stop Band Attenuation	≥40dB
●	Pass Band Frequency	DC～654MHz & 796～1500MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band VSWR	≤1.7:1
●	Impedance	50 ohms
●	Power Handling	≤10W
●	Connectors	SMA-Female
●	Surface Finish	Black Paint

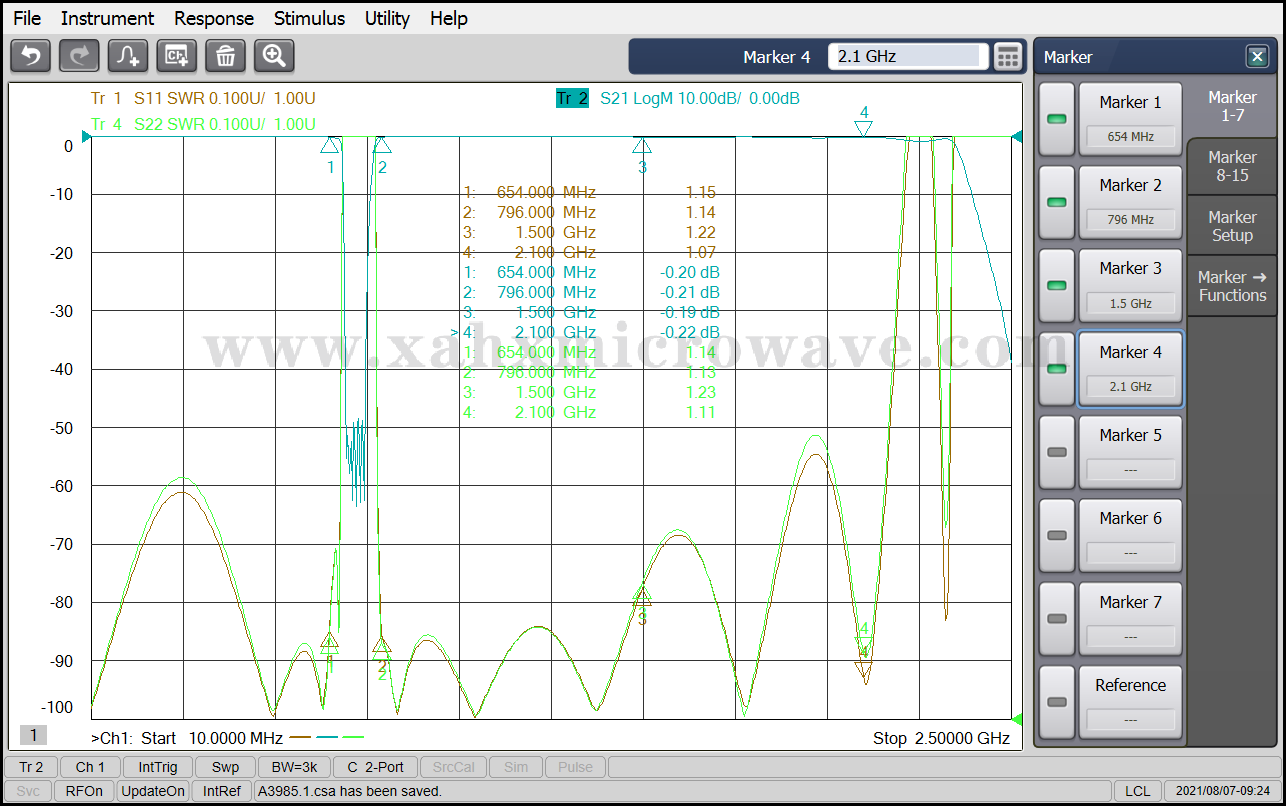

Test Curve
