Cavity Band Rejection Filter

  • 791-821MHz Cavity Band Rejection Filter

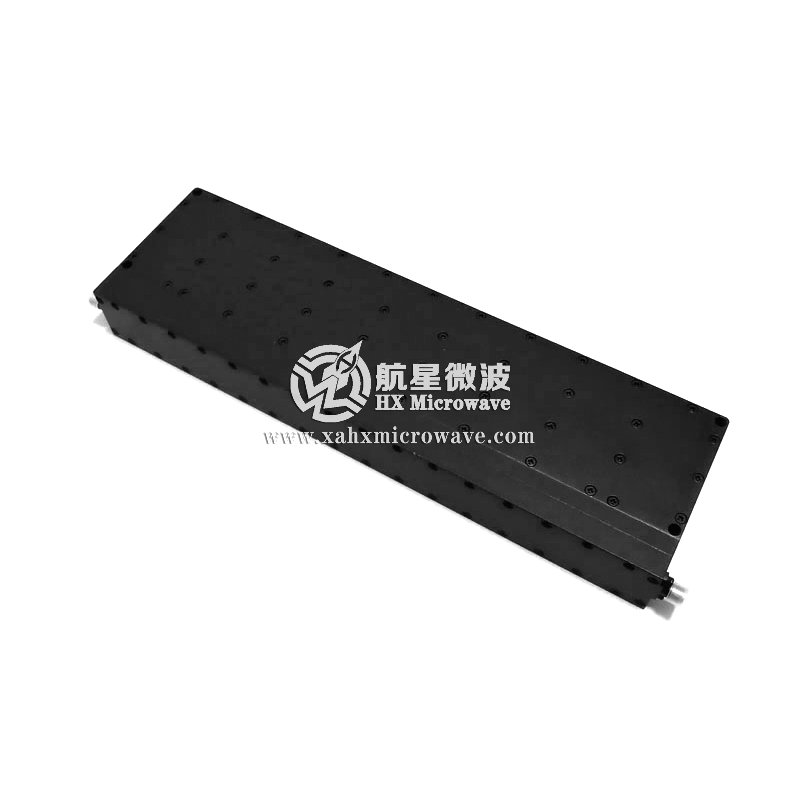

791-821MHz Cavity Band Rejection Filter

791-821MHz Cavity Band Rejection Filter

  • P/N：HXLBQ-DZA84
  • Stop Band Frequency：791～821MHz
  • Stop Band Attenuation：≥50dB
  • Insertion loss：≤1.5dB
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download
Technical Data Sheet
● Stop Band Frequency 791～821MHz
● Stop Band Attenuation ≥50dB
● Pass Band Frequency DC～773MHz & 839～2500MHz
● Pass Band Insertion Loss ≤1.5dB
● Pass Band VSWR ≤1.5:1 @ DC～773MHz、839～2200MHz
≤1.7:1 @ 2200～2500MHz
● Impedance 50 ohms
● Surface Finish Black Paint
● Power Handling ≤50W
● Connectors SMA-Female
Test Curve
