Technical Data Sheet
●	Center Frequency(F0)	8.0GHz
●	Pass Band Frequency	6.0～10GHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band VSWR	≤1.6:1
●	Stop Band Rejection	≥60dB @ DC～5.2GHz
		≥60dB @ 10.8～13GHz
●	Impedance	50 ohms
●	Power	≤2W
●	Surface Finish	The Original Silver Color or Black Paint
●	Connectors	SMA-Female
●	Temperature Range	-40℃～+70℃

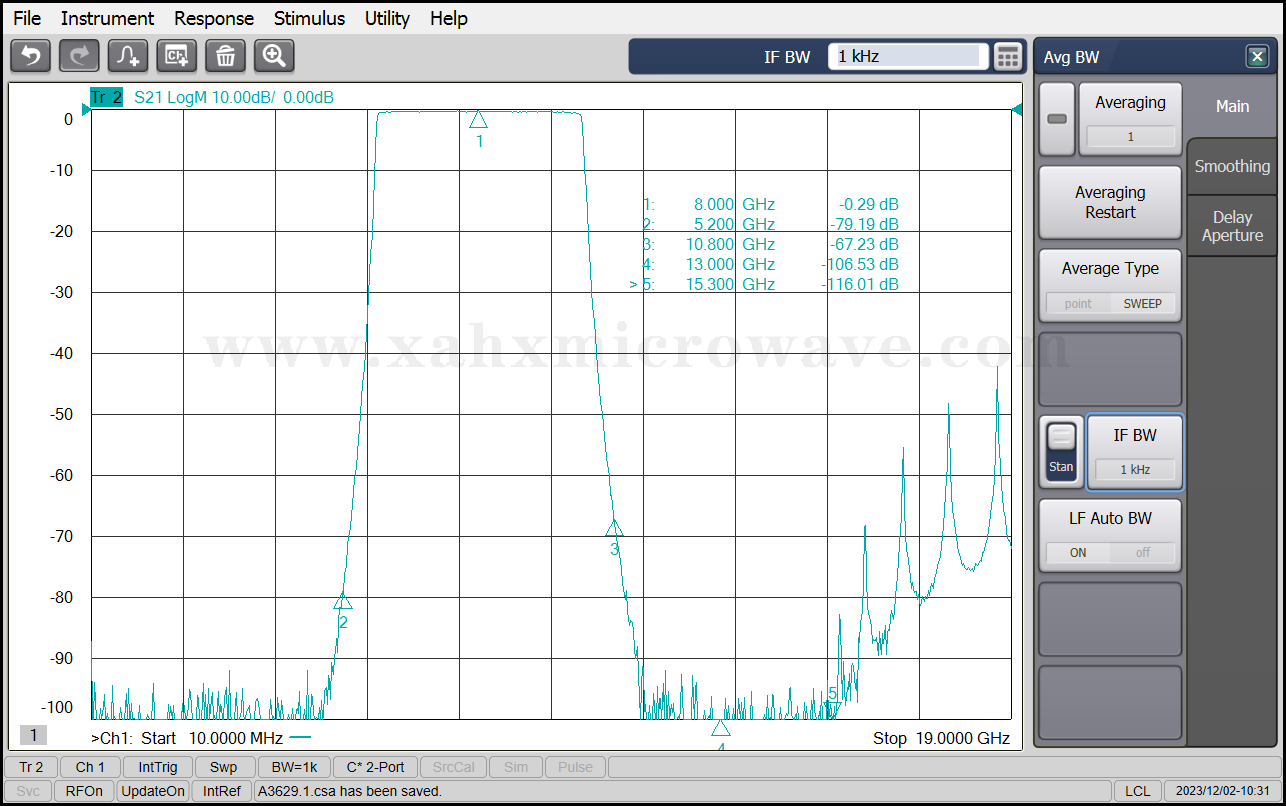

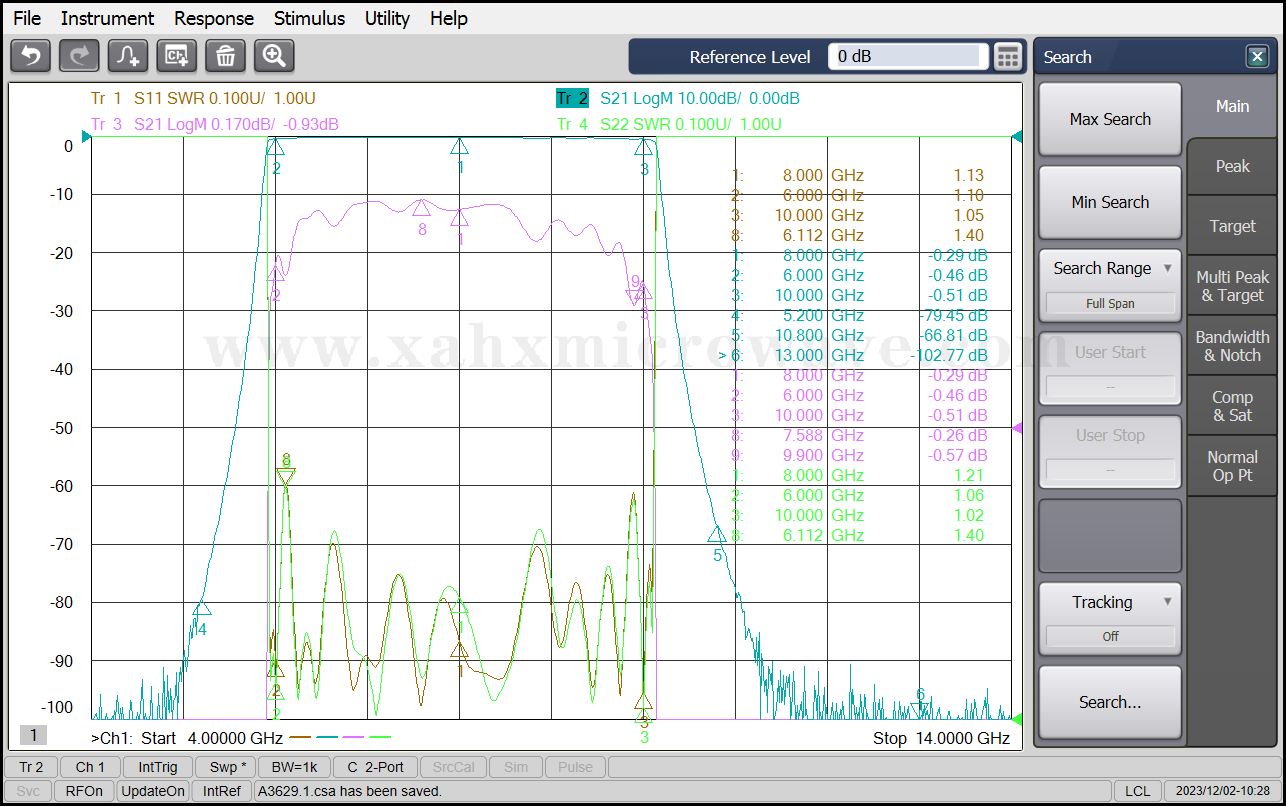

Test Curve
