Technical Data Sheet
●	Way	2
●	Frequency Range	7～9GHz
●	Insertion Loss	≤3.5dB (Contain theory loss 3 dB)
●	VSWR	≤1.3:1
●	Isolation	≥20dB
●	Amplitude Balance	≤±0.3dB
●	Phase Balance	≤±3°
●	Power Handling	Forward ≤10Watt  ;  Reversed ≤0.5Watt
●	Operating Temperature	-55～+85℃
●	Surface Finish	Black Paint
●	Connectors	SMA-Female
●	Impedance	50 ohms

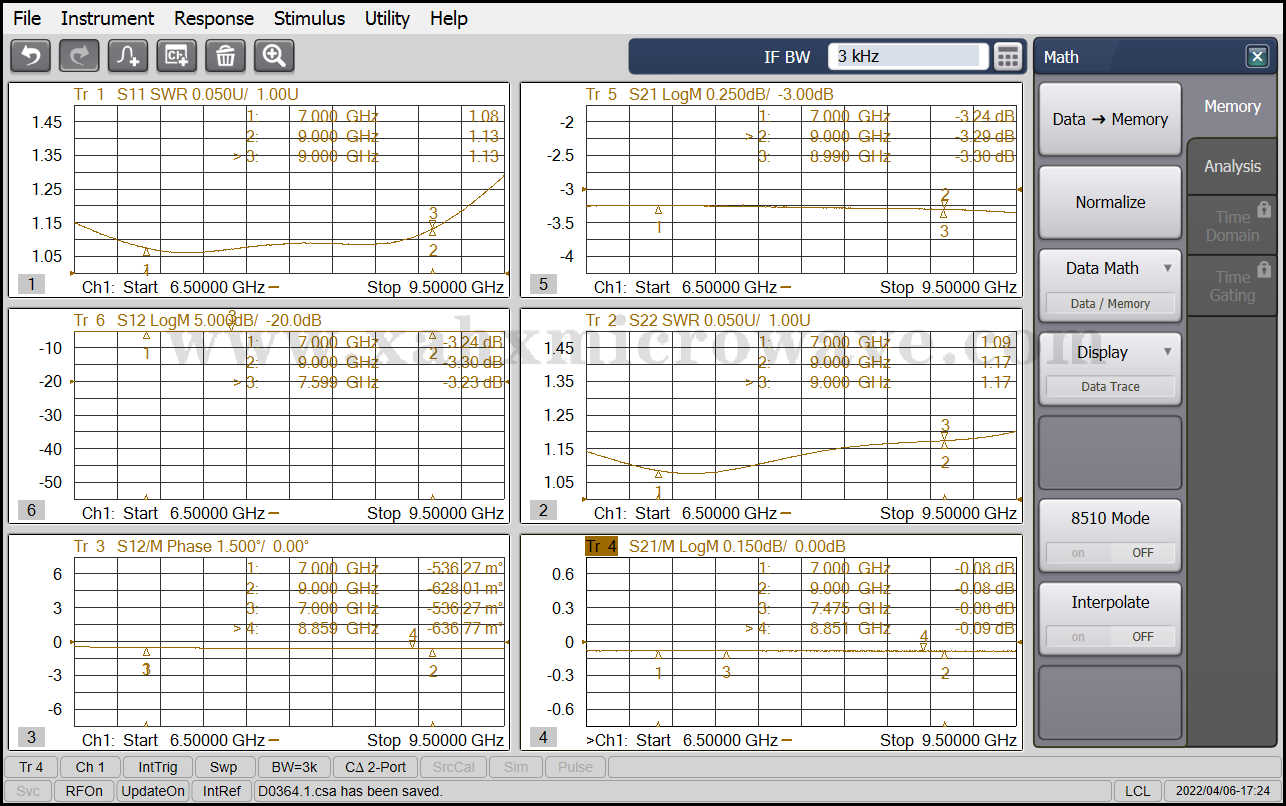

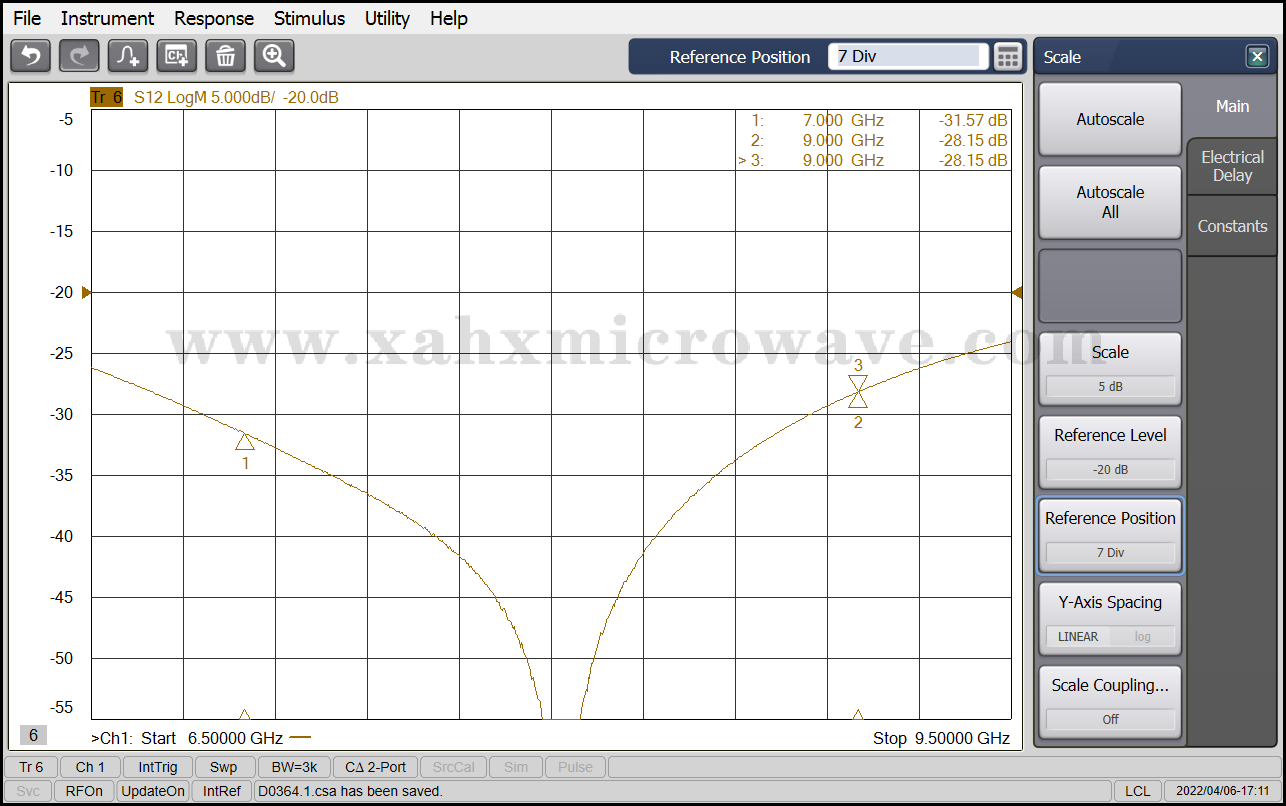

Test Curve
