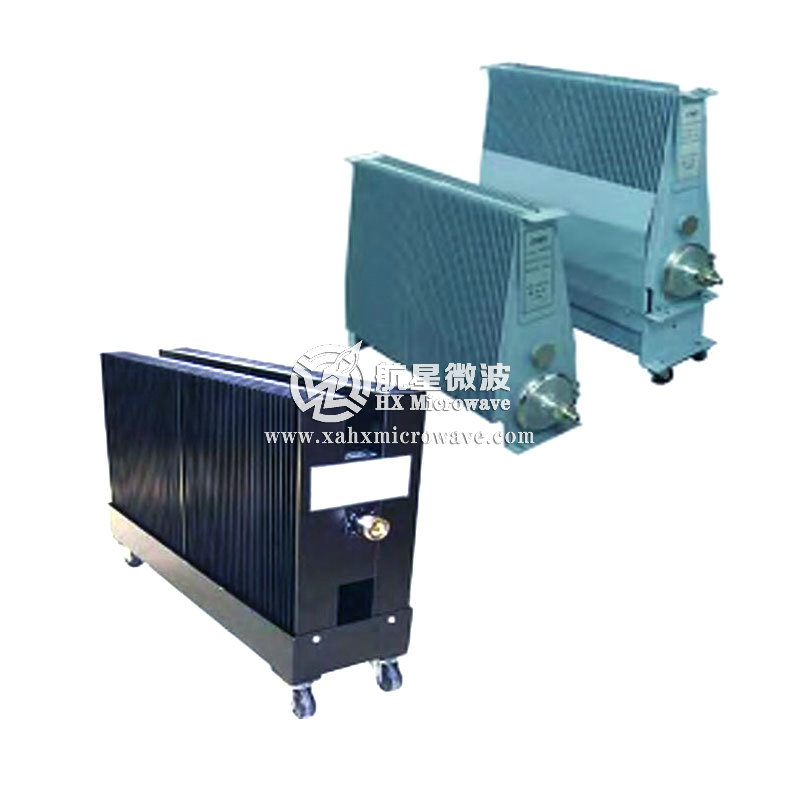

1000W Attenuator

  • 1000W RF Coaxial Attenuator DC-6GHz 20-60DB N,7/16
1000W RF Coaxial Attenuator DC-6GHz 20-60DB N,7/16

1000W RF Coaxial Attenuator DC-6GHz 20-60DB N,7/16

  • Power：1000W
  • Frequency:DC-2GHz_DC-3GHz_DC-6GHz
  • Attenuation value:20-50DB
  • Connector：N,7/16
  • Product description: Good heat dissipation, high cost performance ♦ Low VSWR ♦ High precision attenuation ♦ Resistance to pulse ♦ Wide working frequency ♦ Working temperature and 55 ℃ ~ + 125 ℃
  • PDF technical index download
1000W Coaxial Attenuato
Technology Manual
Model Number Freq. Range Attenuation Value/Tolerance VSWR Max
20dB 30dB 40dB 50dB /
HXTS1000-XX-3G DC-3GHz / ±2.0 ±2.0 / 1.4
Model Number Freq. Range Attenuation Value/Tolerance VSWR Max
20dB 30dB 40dB 50dB /
HXDTS1000-XX-2-X DC-0.7GHz / ±1.0 ±1.0 ±1.0 / 1.2
0.7-2GHz Attenuation Curve Available 1.3
Model Number Freq. Range Attenuation Value/Tolerance VSWR Max
20dB 30dB 40dB 50dB /
HXWTS1000-XX-2G DC-2GHz / / / ±1.8 / 1.35
HXWTS1000-XX-4G DC-4GHz / / / ±1.8 / 1.35
HXWTS1000-XX-6G DC-6GHz / / / ±2.0 / 1.35
