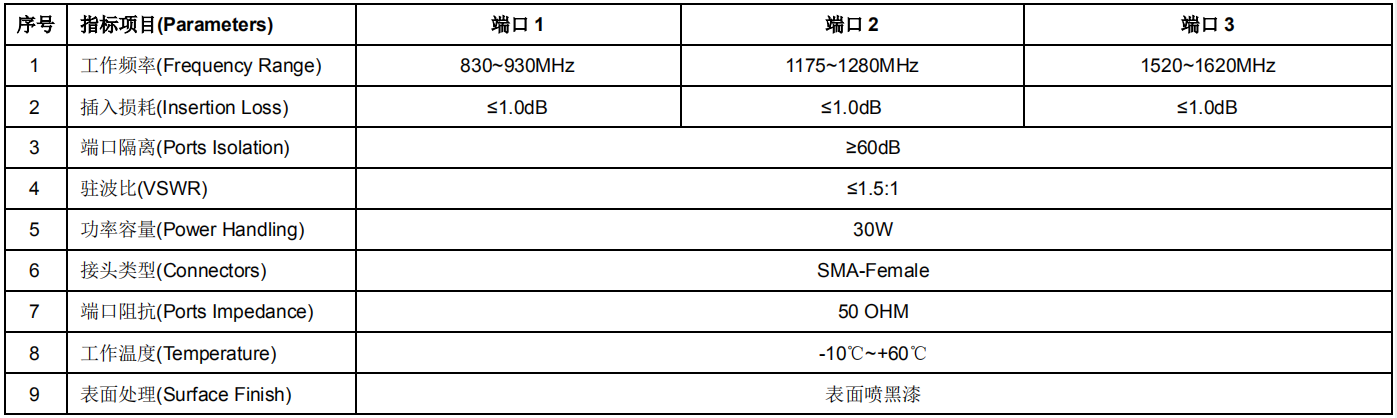

| Technical Data Sheet | ||||
| Serial | Parameters | P1 | P2 | P3 |
| 1 | Pass Band Frequency | 830 ~ 930MHz | 1175 ~ 1280MHz | 1520 ~ 1620MHz |
| 2 | Pass Band Insertion Loss | ≤1.0dB | ≤1.0dB | ≤1.0dB |
| 3 | Pass Band VSWR | ≤1.5:1 | ≤1.5:1 | ≤1.5:1 |
| 4 | Port Isolation | ≥60dB | ||
| 5 | Impedance | 50 Ohms | ||
| 6 | Power | 30W Max. | ||
| 7 | Connectors | SMA-Female | ||
| 8 | Surface Finish | Painted Black | ||
| 9 | Temperature Range | -10℃ ~ +60℃ | ||
| 10 | Working Environment | Indoor | ||
| Test Curve | ||||
