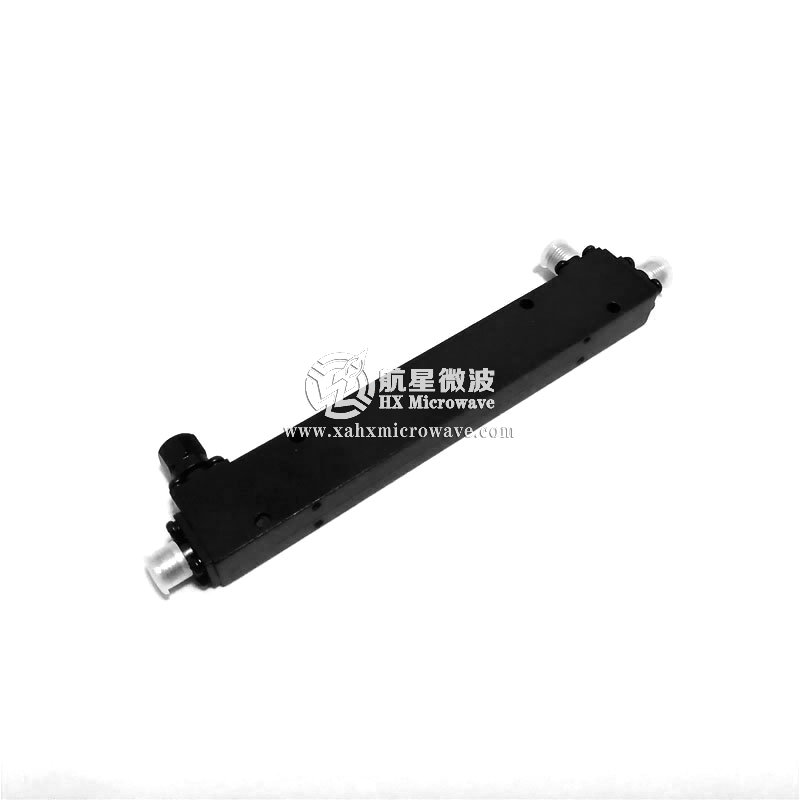

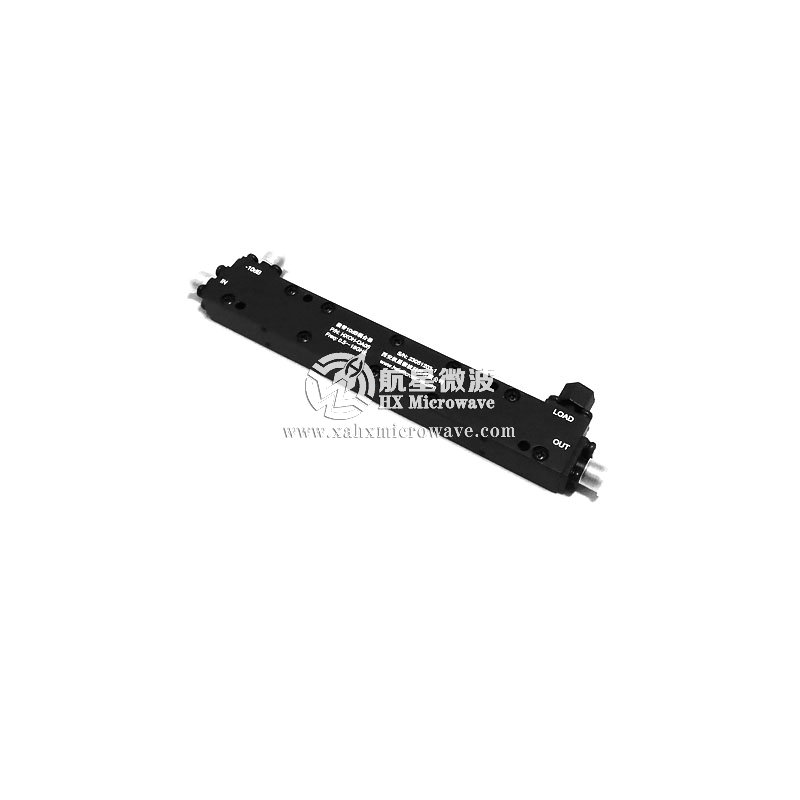

Directional Coupler

1.0-12GHz Coupler 16DB Directional Coupler

P/N:HXOH-OA02
Loss：≤0.86dB
Directivity:≥15dB
Connectors：SMA-Female
Product description: ♦isolation of high，high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency（0-70 GHZ Covering frequency range）
PDF technical index download

Technical Data Sheet
●	Coupling	16±1.0dB
●	Frequency Range	1～12GHz
●	Insertion Loss	≤0.86dB (Excluding coupling losses 0.14dB)
●	Frequency Sensitivity	≤±1.0dB
●	VSWR	≤1.45:1
●	Directivity	≥15dB
●	Power Handling	≤30W
●	Impedance	50 Ohms
●	Surface Finish	Black Paint
●	Connectors	SMA-Female
Test Curve
