Technical Data Sheet
1	Center Frequency(F0)	2442.5MHz	5785MHz
2	Pass Band Frequency	2400 ~ 2485MHz	5720 ~ 5850MHz
3	Pass Band Insertion Loss	≤1.8dB	≤1.8dB
4	Pass Band VSWR	≤1.3:1	≤1.3:1
5	Stop Band Rejection	≥30dB @ DC ~ 2370MHz , 2530 ~ 5670MHz , 5900 ~ 6000MHz
6	Impedance	50 Ohms
7	Power	20W Max.
8	Connectors	SMA-Female
9	Surface Finish	Painted Black
10	Temperature Range	-30℃ ~ +70℃

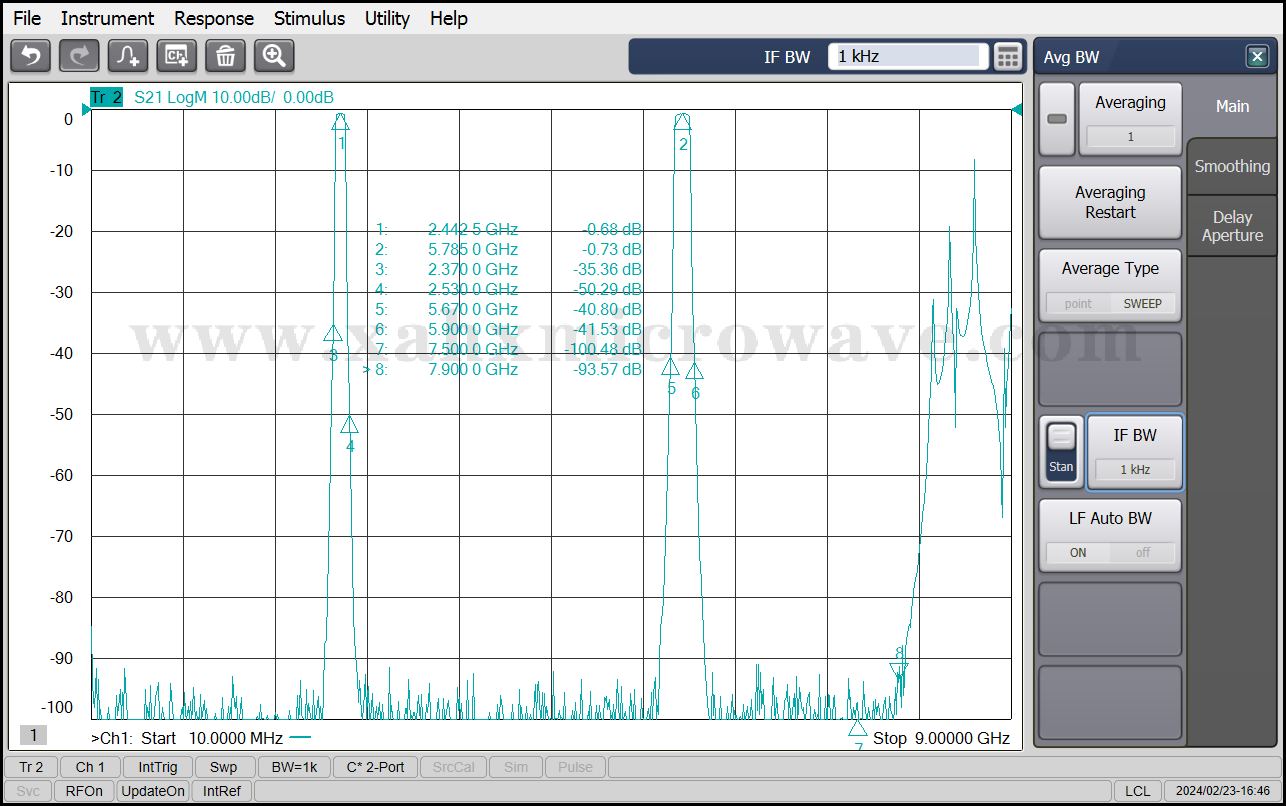

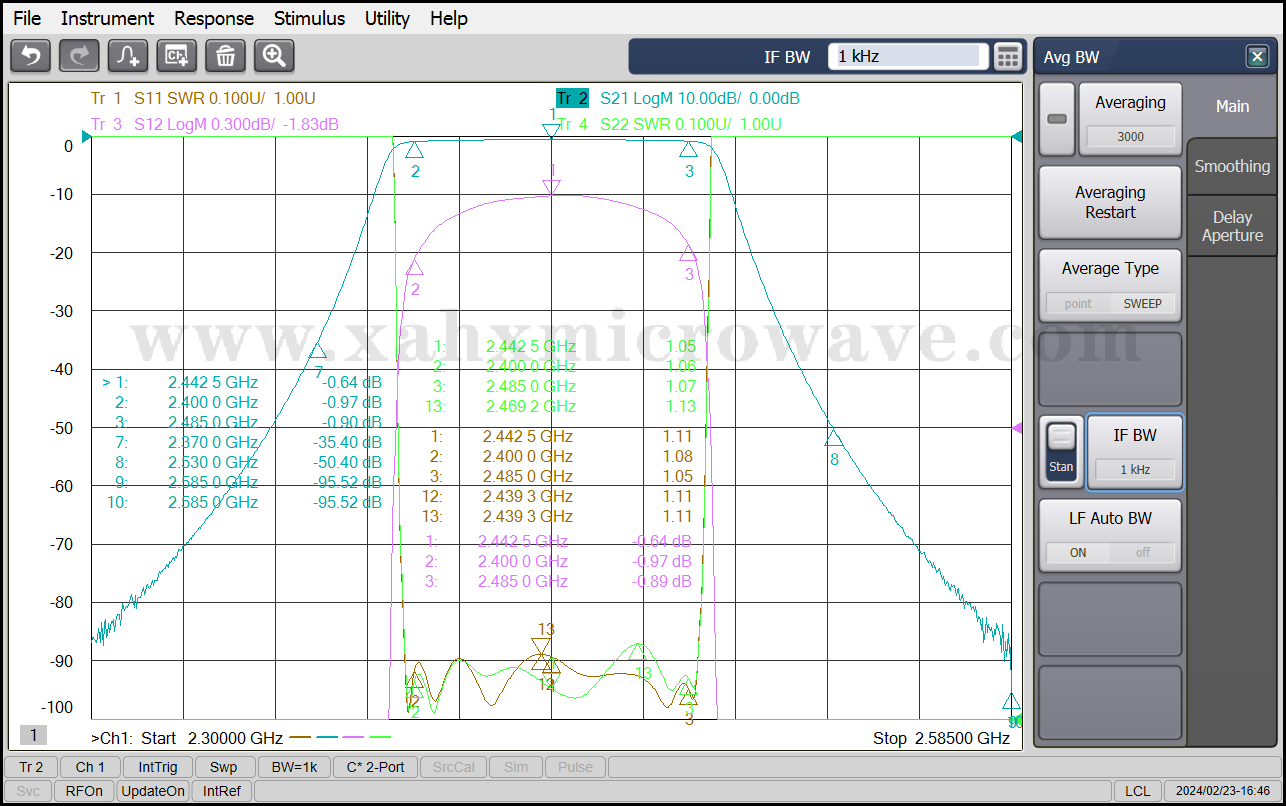

Test Curve
