Microstrip 3dB Hybrid Coupler

  • 1.0-8.0GHz 3dB 90 Degree Hybrid Coupler
1.0-8.0GHz 3dB 90 Degree Hybrid Coupler

1.0-8.0GHz 3dB 90 Degree Hybrid Coupler

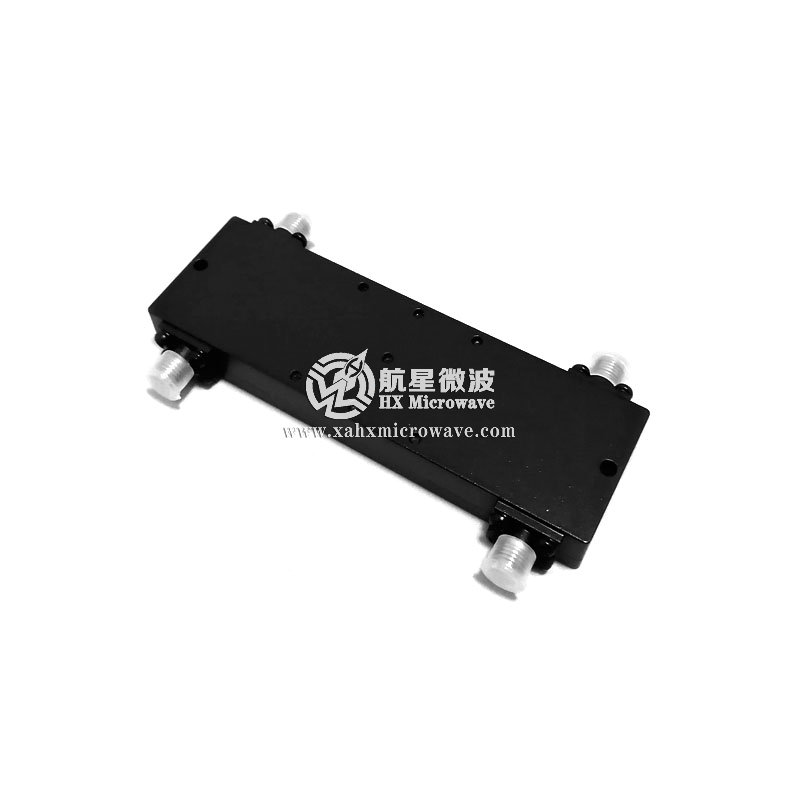

  • P/N:HXDQ-DA04
  • Frequency Range：1.0～8.0GHz
  • isolation：≥16dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Frequency Range 1.0～8.0GHz
● Phase Difference 90°
● Nominal Split 3.1dB
● Insertion Loss ≤1.0dB
● VSWR ≤1.5:1
● Amplitude Balance ≤±0.8dB
● Phase Balance ≤±5°
● Isolation ≥16dB
● Power Handling Average≤30W (Peak ≤1KW)
● Connectors SMA-Female
Test Curve
