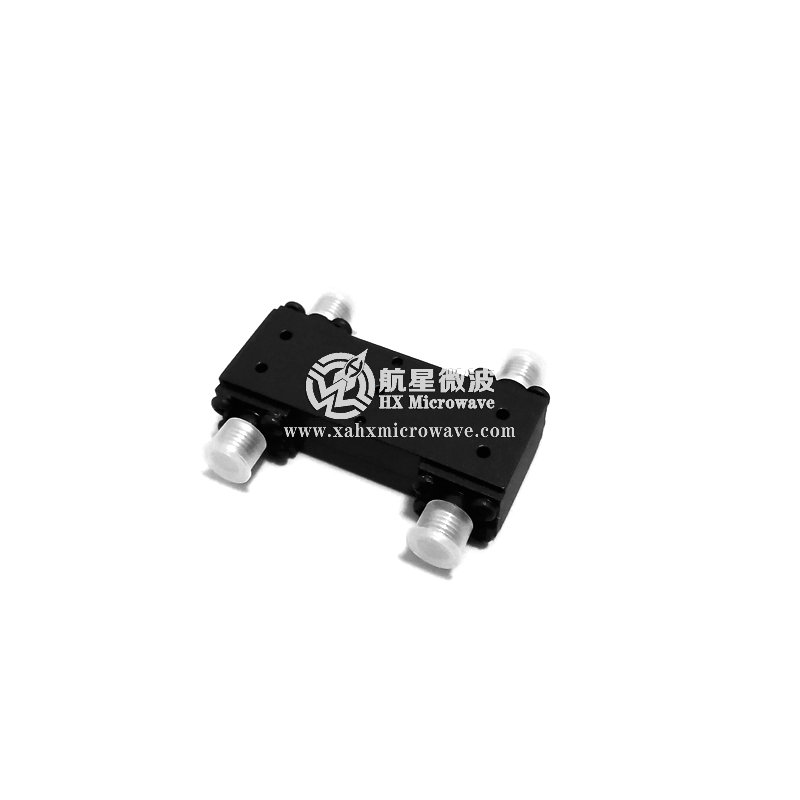

Microstrip 3dB Hybrid Coupler

  • 2.0-6.0GHz 3dB 90 Degree Hybrid Coupler
2.0-6.0GHz 3dB 90 Degree Hybrid Coupler

2.0-6.0GHz 3dB 90 Degree Hybrid Coupler

  • P/N:HXDQ-DA03
  • Loss：0.8dB
  • isolation：≥20dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Frequency Range 2～6GHz
● Phase Difference 90°
● Nominal Split 3.1dB
● Insertion Loss 0.8dB
● VSWR ≤1.35:1
● Isolation ≥20dB
● Impedance 50 Ohms
● Operating Temperature -30℃～+70℃
● Power Handling 20W
● Connectors SMA-Female
