Technical Data Sheet
●	Frequency Range	0.5～6.0GHz
●	Phase Difference	90°
●	Nominal Split	3.01dB
●	Insertion Loss	≤1.3dB
●	VSWR	≤1.3:1
●	Amplitude Balance	≤±0.7dB
●	Phase Balance	≤±5.0°
●	Isolation	≥18dB
●	Impedance	50 ohms
●	Power	≤20W
●	Surface Finish	Black Paint
●	Connectors	SMA-Female

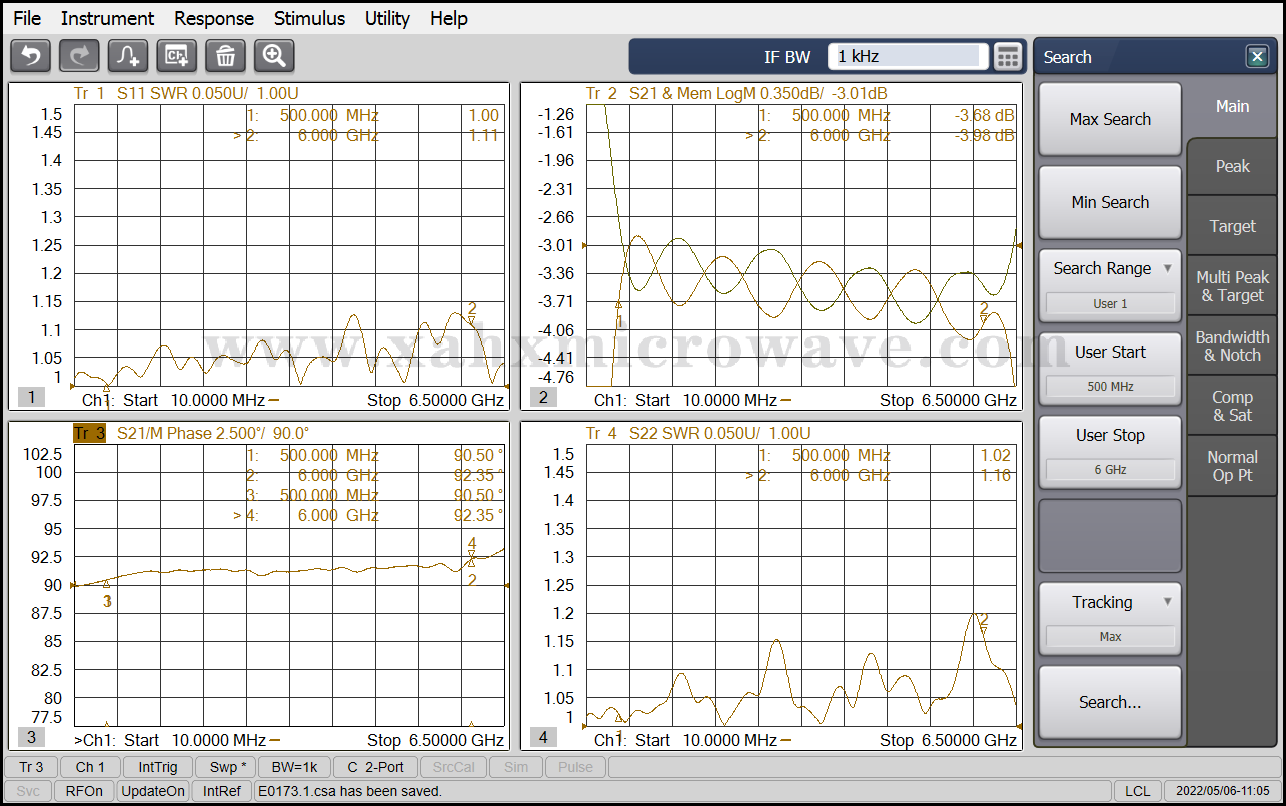

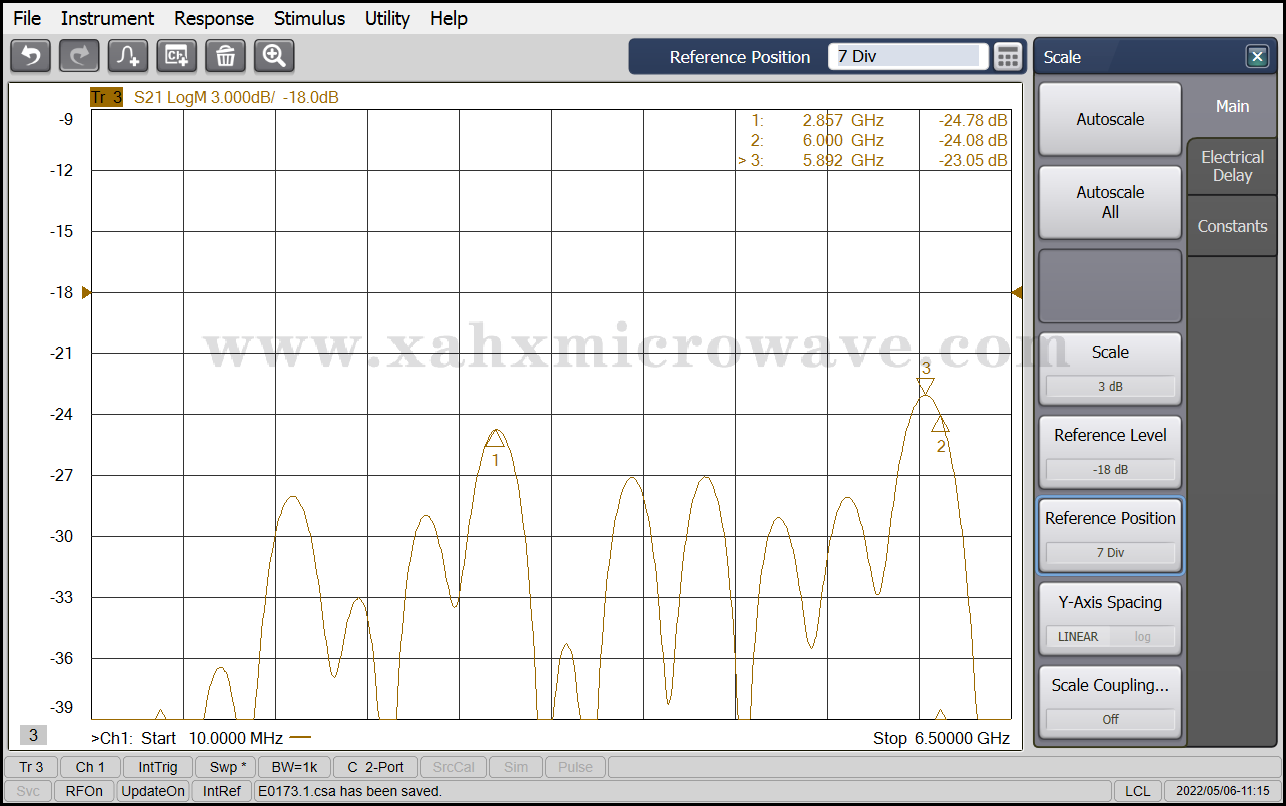

Test Curve
