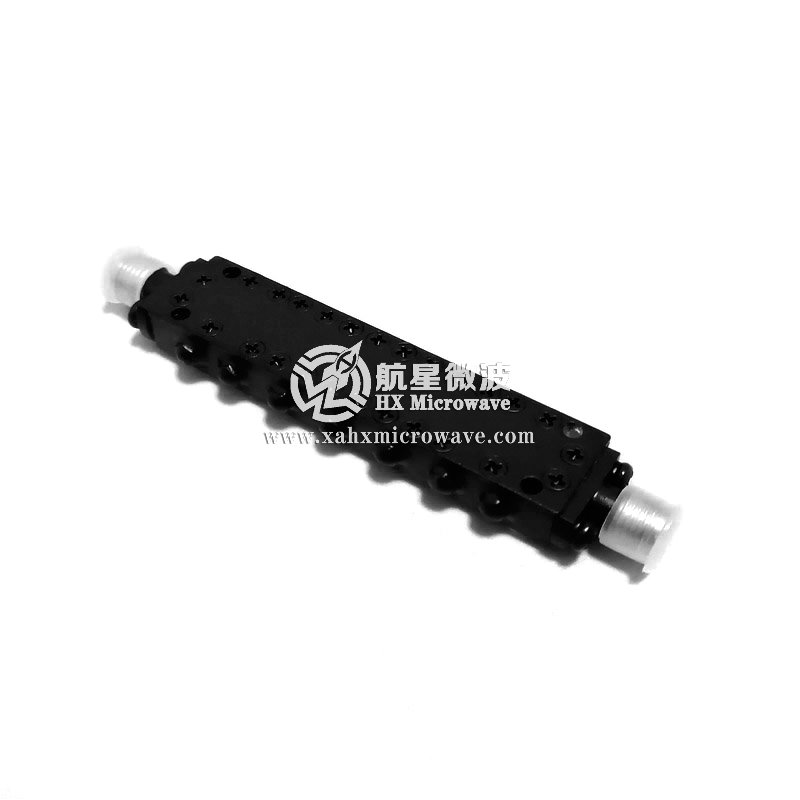

10-14GHz Interdigital Band Pass Filter

P/N：HXLBQ-DTA102
Pass Band Frequency:10～14GHz
inhibition：≥60dB
Insertion loss：≤1.0dB
Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
PDF technical index download

Technical Data Sheet
●	Center Frequency(F0)	12GHz
●	Pass Band Frequency	10～14GHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.5dB
●	Pass Band VSWR	≤1.5:1
●	Stop Band Rejection	≥60dB @ DC～7.0GHz
●	Stop Band Rejection	≥60dB @ 15.3～18GHz
●	Impedance	50 ohms
●	Power	≤2W
●	Surface Finish	The Original Silver Color or Black Paint
●	Connectors	SMA-Female
Test Curve
