  • 1610-1620MHz Cavity Band Pass Filter
1610-1620MHz Cavity Band Pass Filter

1610-1620MHz Cavity Band Pass Filter

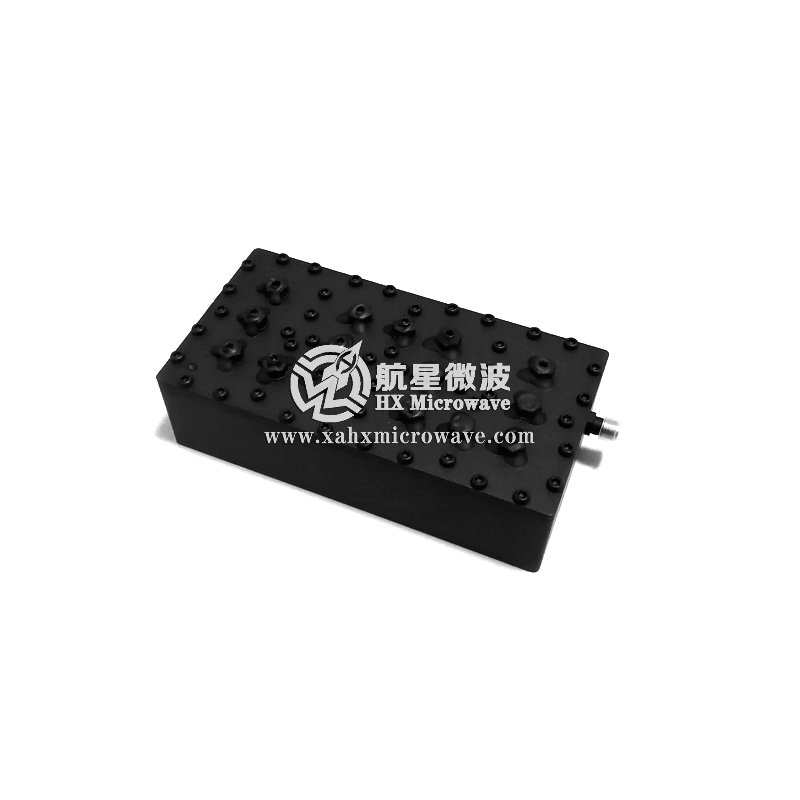

  • P/N：HXLBQ-DTA113
  • Pass Band Frequency:1610～1620MHz
  • inhibition：≥30dB
  • Insertion loss：≤2.0dB
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download
Technical Data Sheet
● Center Frequency (F0) 1615MHz
● Pass Band Bandwidth 10MHz (1610～1620MHz)
● Pass Band Insertion Loss ≤2.0dB
● Pass Band VSWR ≤1.3:1
● Stop Band Attenuation ≥20dB @ F0±10MHz (1605MHz、1625MHz)
≥30dB @ F0±20MHz (DC～1595MHz、1635～3000MHz)
● Impedance 50 ohms
● Power Handling ≤10W
● Connectors SMA-Female
● Surface Finish Black Paint
Test Curve
