Technical Data Sheet
●	Center Frequency(F0)	15GHz
●	Pass Band Frequency	12 ~ 18GHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band VSWR	≤1.7:1
●	Stop Band Rejection	≥40dB @ DC ~ 10GHz	≥40dB @ 20 ~ 23GHz
●	Impedance	50 Ohms
●	Power	5W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

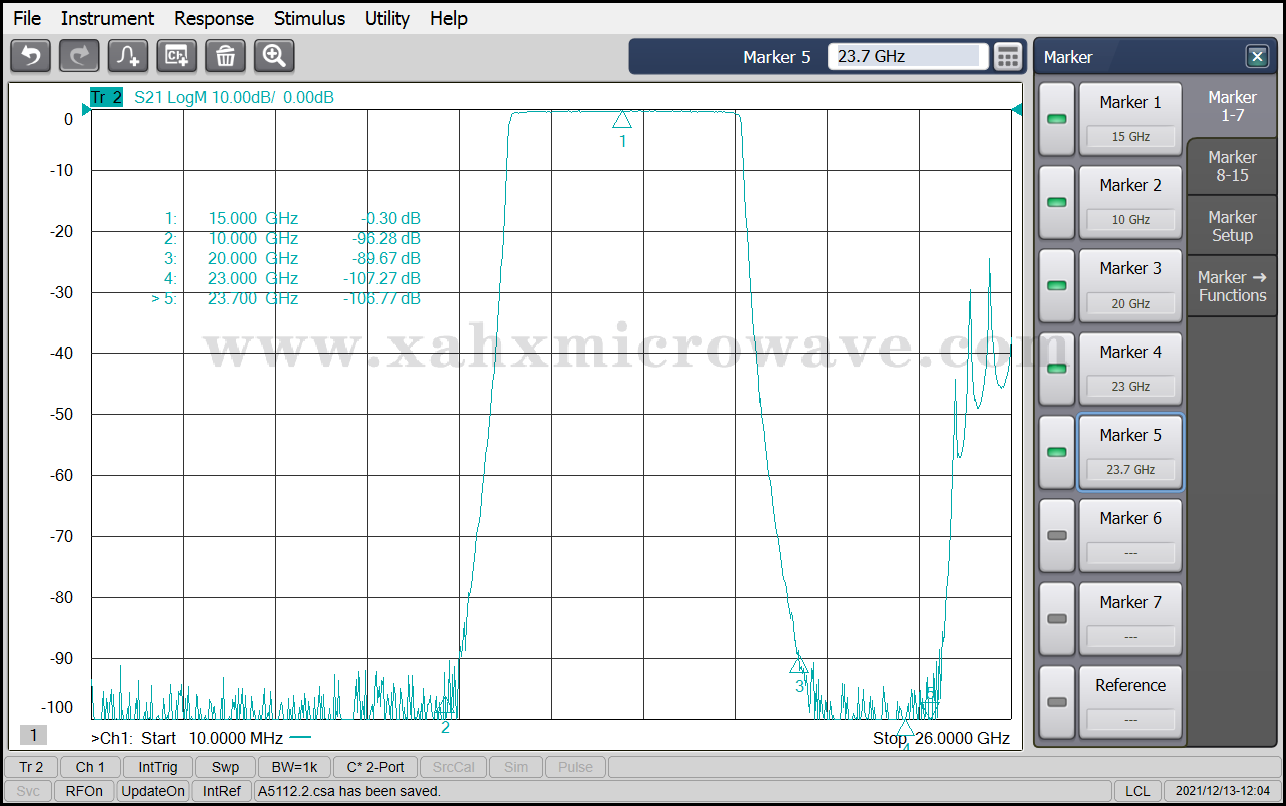

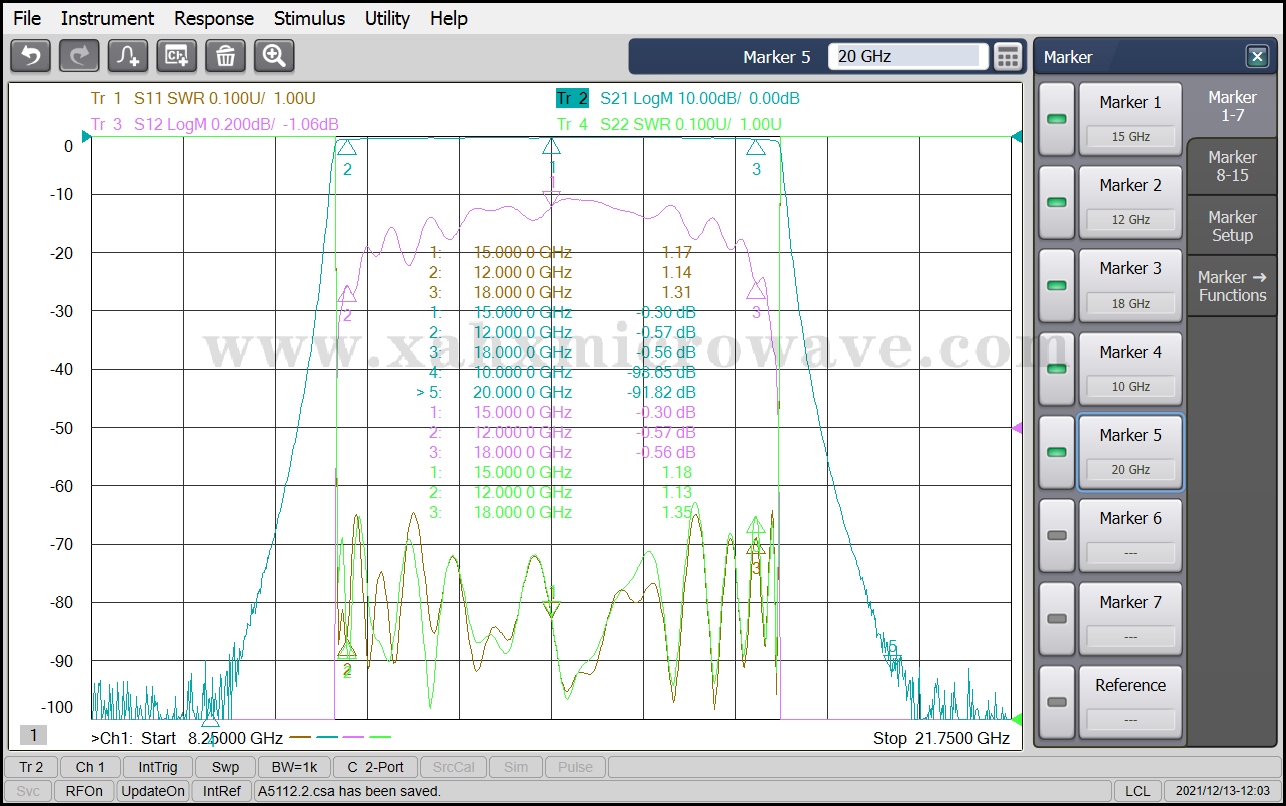

Test Curve
