4 way Microstrip Power Divider

  • 10-20GHz 4 Way Power Divider

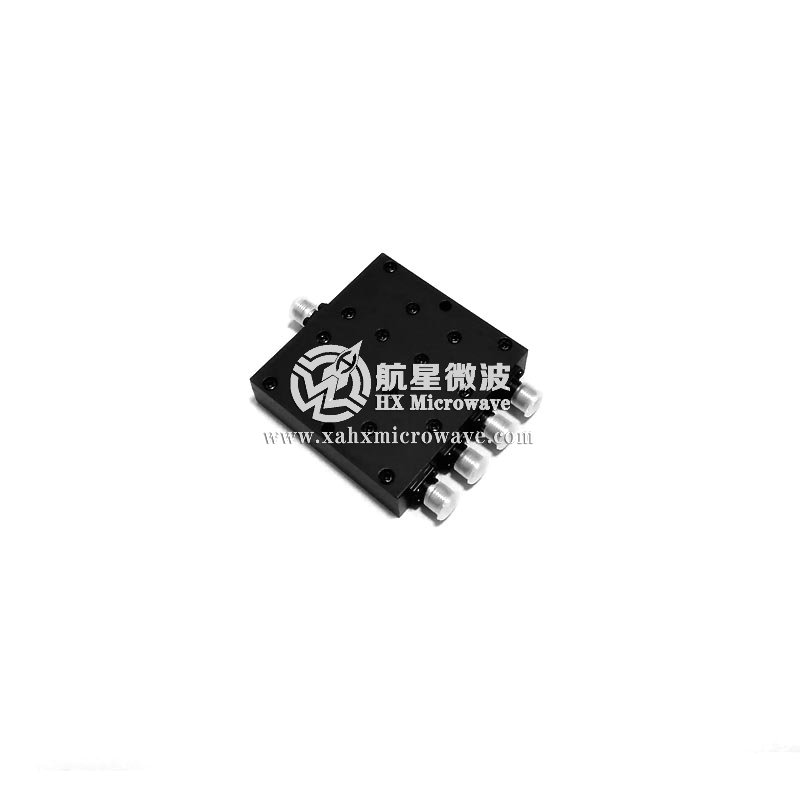

10-20GHz 4 Way Power Divider

10-20GHz 4 Way Power Divider

  • P/N：HXGF-G4A02
  • Frequency Range：10-20GHz
  • isolation：≥10dB
  • Connectors：SMA-Female
  • Product description: ♦High frequency bandwidth ♦ Low VSWR ♦ Isolation degree is high ♦ Small insertion loss♦Can be customized
  • PDF technical index download
Technical Data Sheet
● Way 4
● Frequency Range 10～20GHz
● Insertion Loss ≤2.8dB（Without theoretical loss）
● VSWR ≤1.8:1
● Isolation ≥10dB
● Impedance 50 Ohms
● Power Handling 5W
● Surface Finish Painted Black
● Connectors SMA-Female
Test Curve
