Technical Data Sheet
●	Way	4
●	Frequency Range	500～6000MHz
●	Insertion Loss	≤1.9dB (Does not contain theory loss 6.0dB)
●	VSWR	IN: ≤1.4:1    OUT: ≤1.3:1
●	Isolation	≥19dB
●	Amplitude Balance	≤±0.5dB
●	Phase Balance	≤±6°
●	Power	Forward: 100W Max.  ;  Reverse: 10W Max.
●	Surface Finish	Natural Silver
●	Connectors	SMA-Female

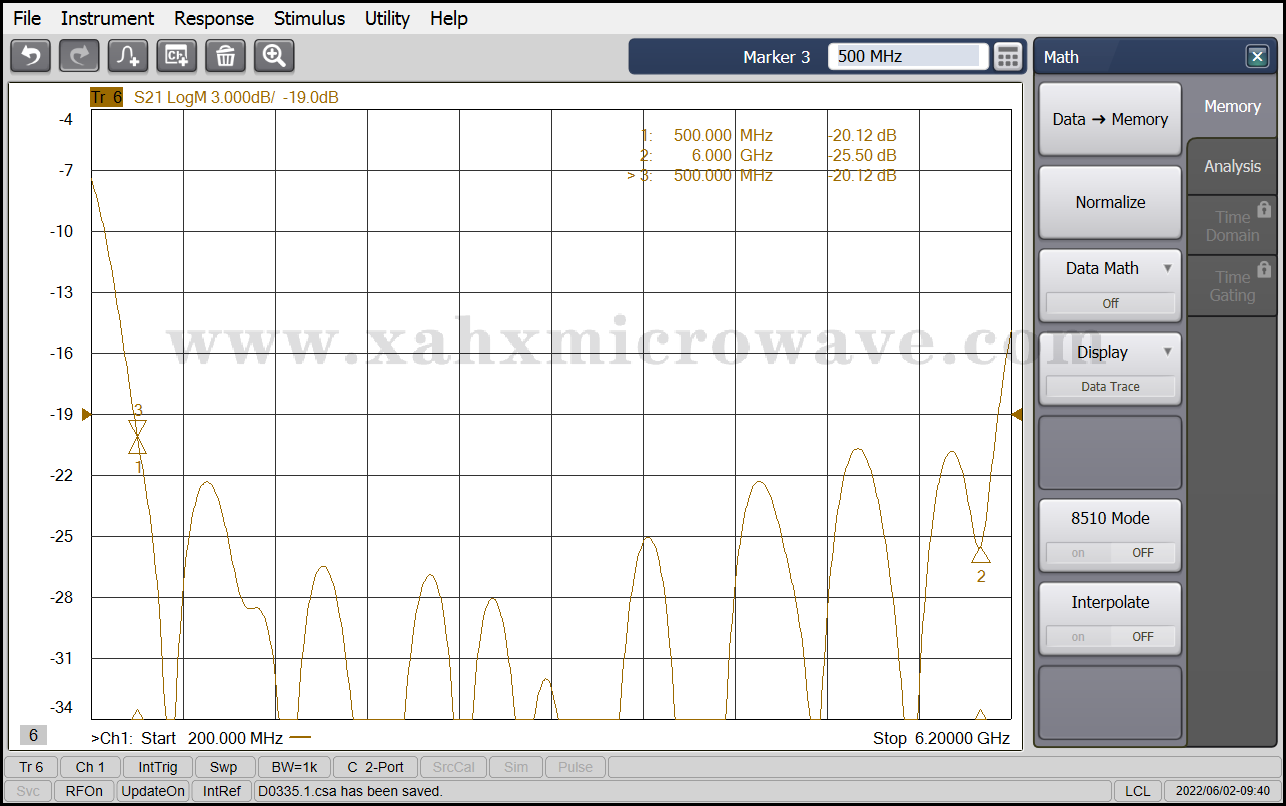

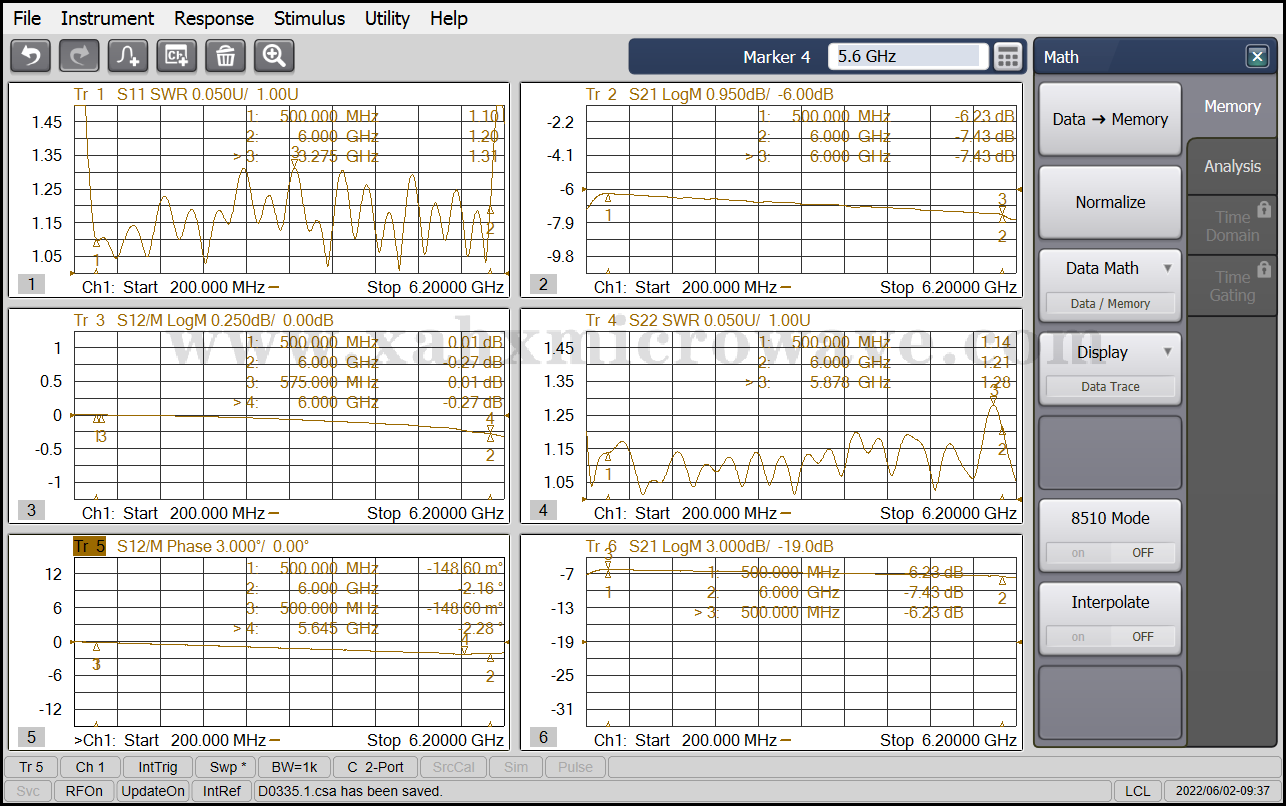

Test Curve
