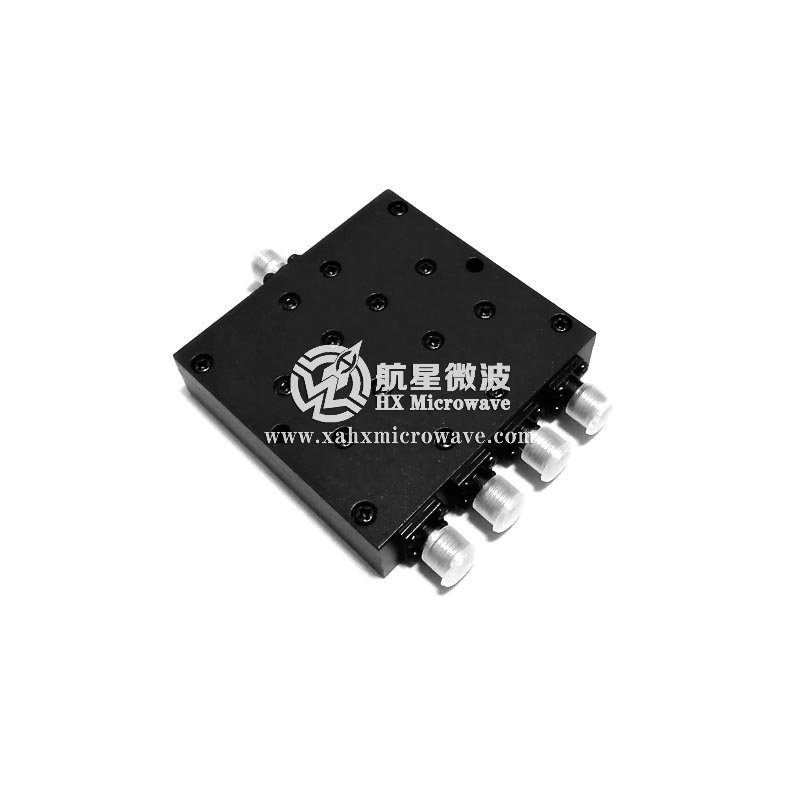

4 way Microstrip Power Divider

0.5-18GHz 4 Way Power Divider

P/N:HXGF-G4A08
Frequency Range：0.5-18GHz
isolation：≥15dB
Connectors：SMA-Female
Product description: ♦High isolation ♦Small insertion loss ♦Small size ♦Working frequency bandwidth ♦Size can be customized ♦Various frequency bands (DC-70GHz frequency range) can be customized according to customer requi
PDF technical index download

Technical Data Sheet
●	Way	4
●	Frequency Range	0.5 ~ 18GHz
●	Insertion Loss	≤2.5dB (Does not contain theory loss 6.0dB)
●	VSWR	Input: ≤2.1:1 (Typical: 1.55:1) ; Output: ≤1.4:1 (Typical: 1.3:1)
●	Isolation	≥15dB (Typical: 18dB)
●	Amplitude Balance	≤ ±0.4dB
●	Phase Balance	≤ ±8°
●	Impedance	50 Ohms
●	Power	Forward: 20W Max. ; Reverse: 1W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-40℃ ~ +85℃
Test Curve
