| Technical Data Sheet | |||
| S/N | Item | RX | TX |
| ● | Center Frequency(F0) | 1900MHz | 2017.5MHz |
| ● | Pass Band Frequency | 1885~ 1915MHz | 2010~ 2025MHz |
| ● | Pass Band Insertion Loss | ≤1.3dB | ≤1.3dB |
| ● | VSWR | ≤1.40:1 | ≤1.40:1 |
| ● | Stop Band Rejection | ≥80dB @2010~ 2025MHz | ≥80dB @1885~ 1915MHz |
| ● | Average Power | 50W Max. | |
| ● | Impedance | 50 Ohms | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -20℃ ~ +65℃ | |

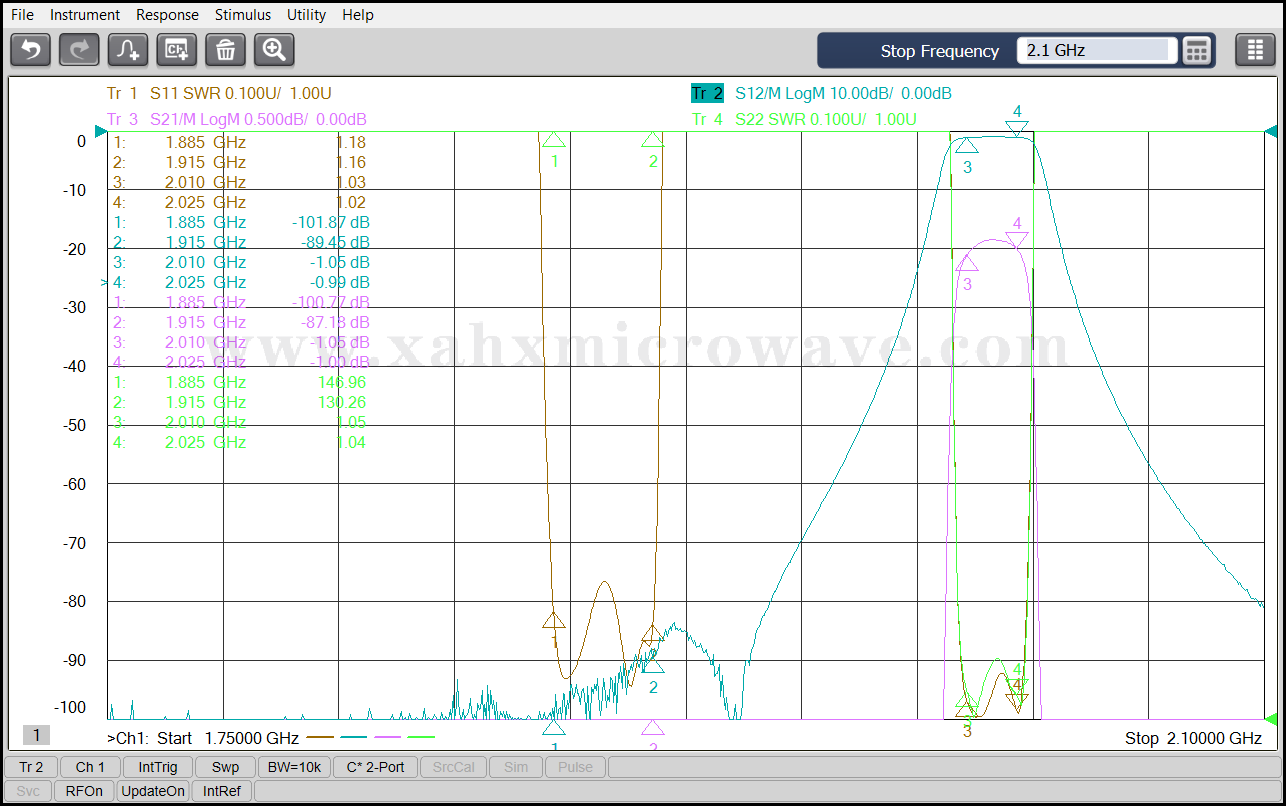

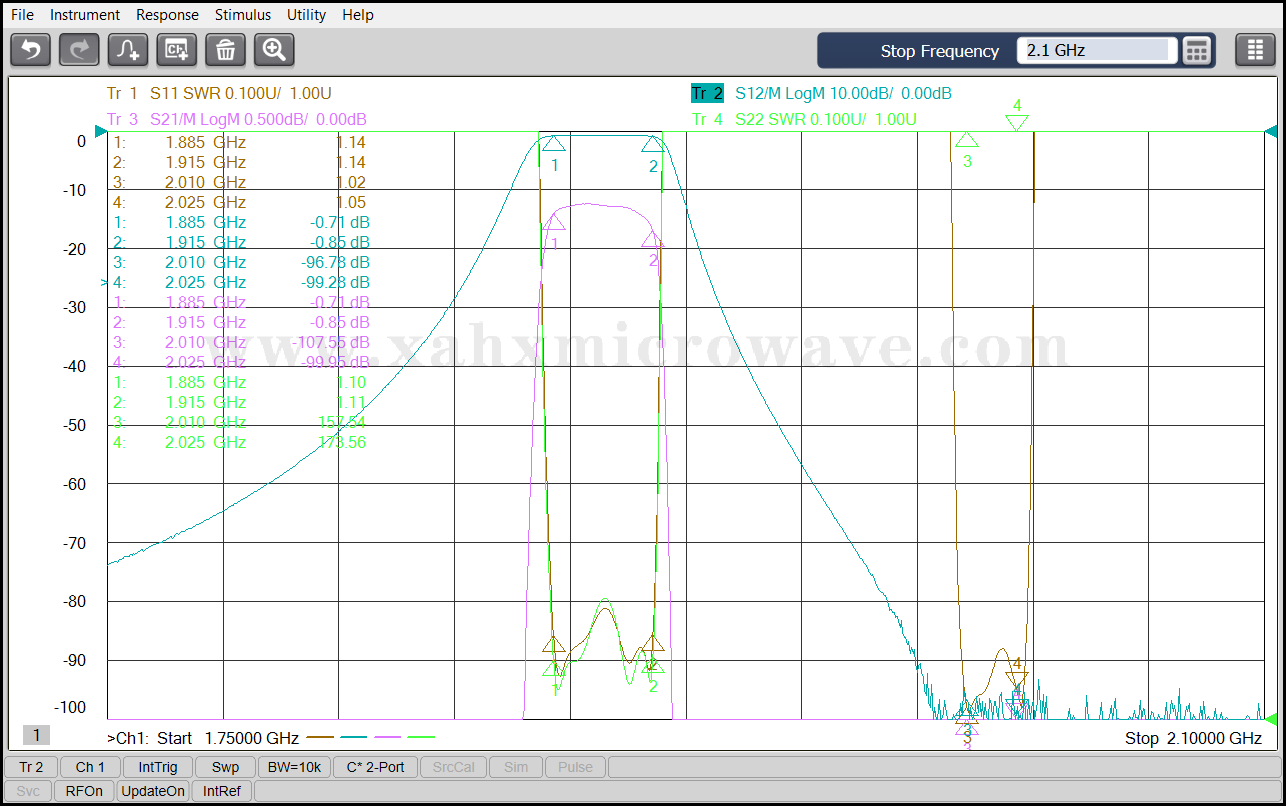

| Test Curve | |||
