Technical Data Sheet
●	Center Frequency(F0)	13.5GHz
●	Pass Band Frequency	12 ~ 15GHz
●	Pass Band Insertion Loss	≤0.5dB
●	Pass Band Ripple	≤0.25dB
●	Pass Band VSWR	≤1.2:1
●	Stop Band Rejection	≥80dB @ DC ~ 9.0GHz	≥70dB @ 16.5 ~ 17GHz
		≥50dB @ 9.0 ~ 10.5GHz	≥80dB @ 17 ~ 24GHz
●	Impedance	50 Ohms
●	Power	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

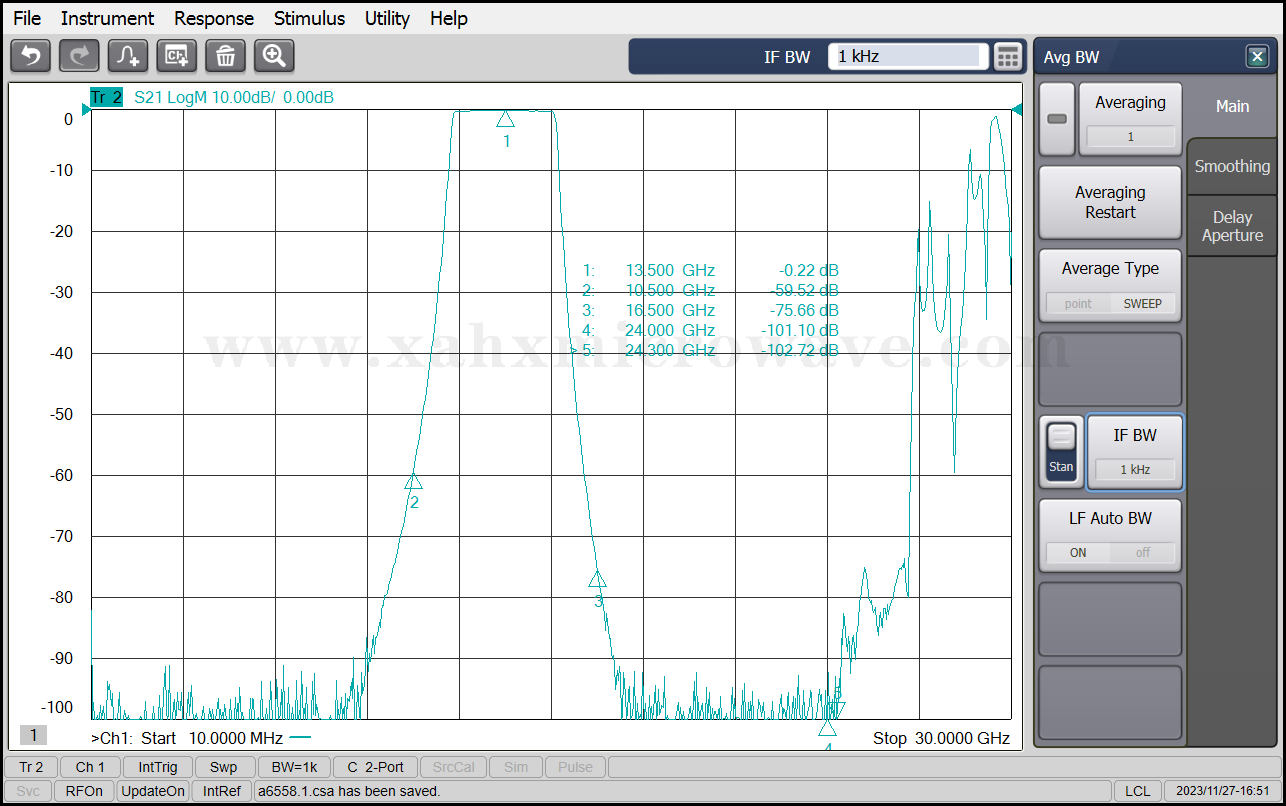

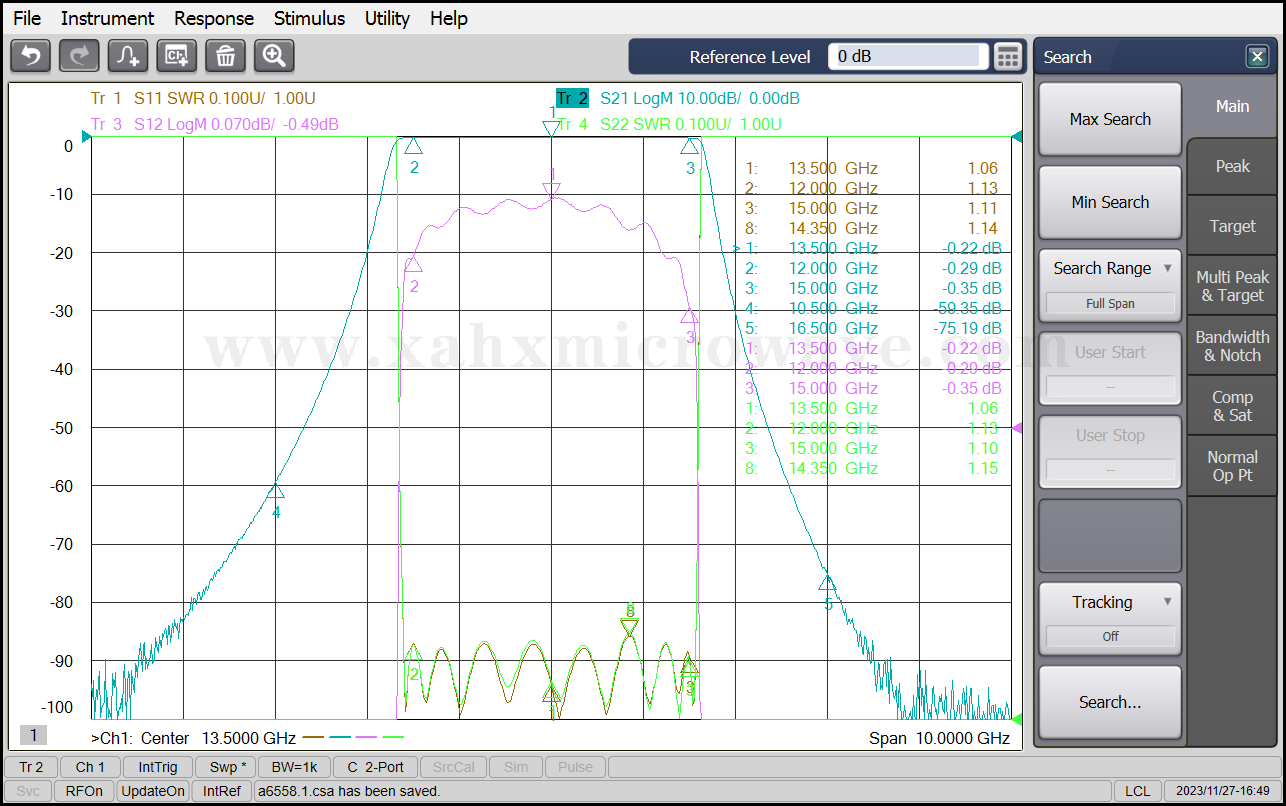

Test Curve
