Technical Data Sheet
●	Center Frequency(F0)	4000MHz
●	Pass Band Bandwidth	400MHz (3800 ~ 4200MHz)
●	Pass Band Insertion Loss	≤0.6dB
●	Pass Band Ripple	≤0.2dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 3000MHz	≥80dB @ 4800 ~ 9000MHz
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

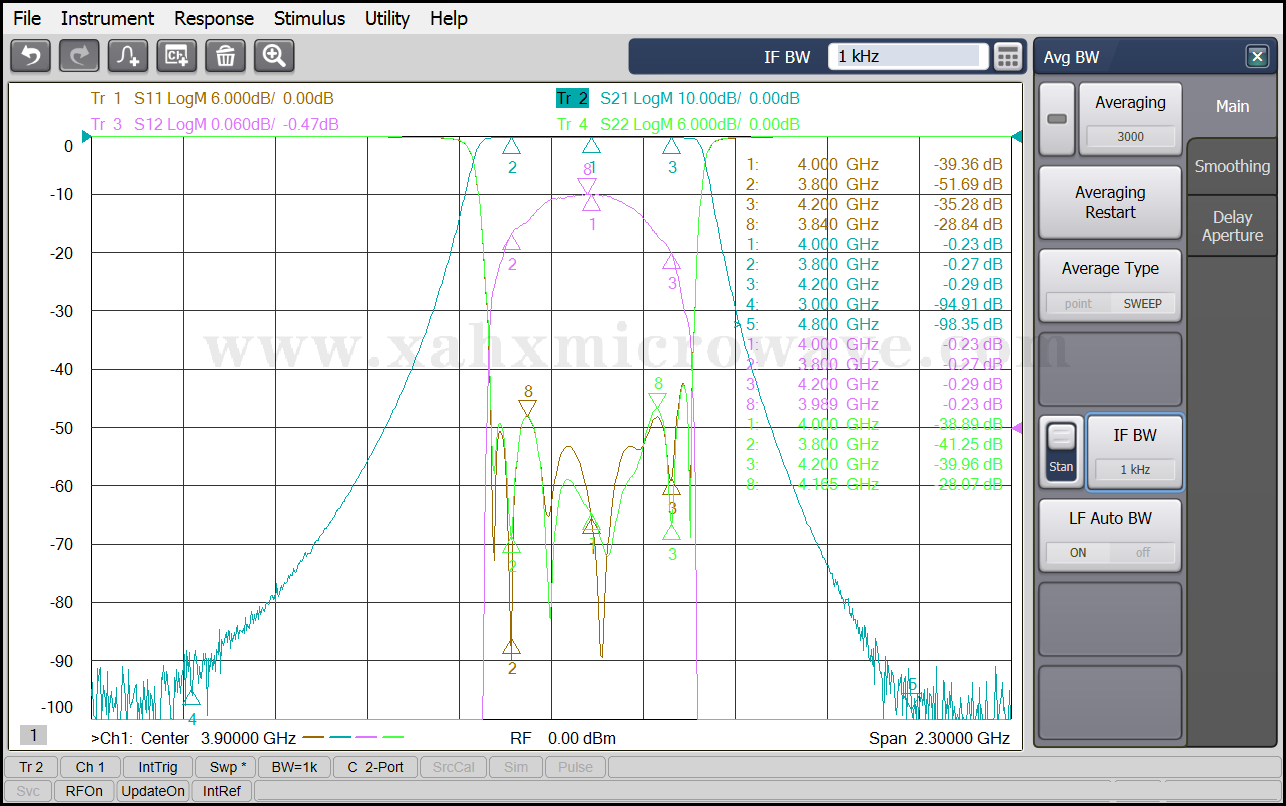

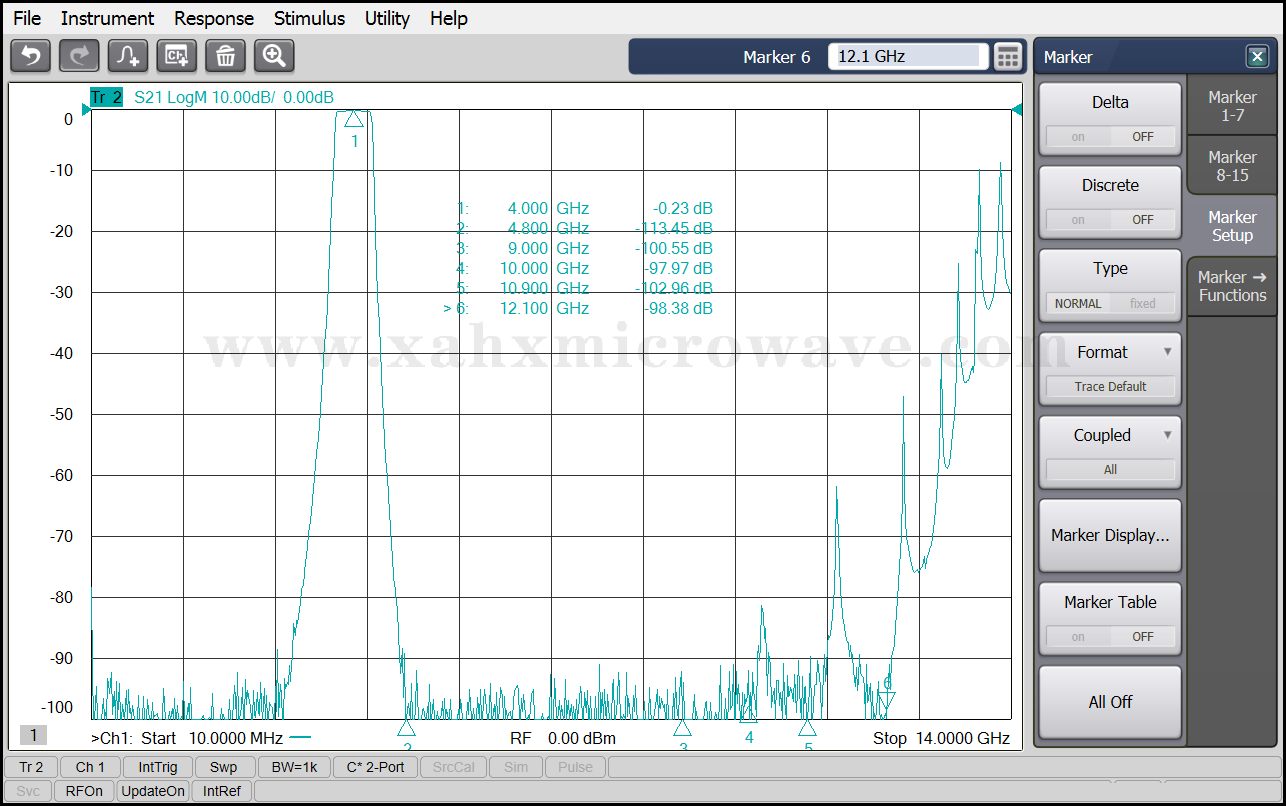

Test Curve
