| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1590MHz | |
| ● | Pass Band Frequency | 1560 ~ 1620MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.8dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 1540MHz | ≥40dB @ 1640 ~ 4000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 50W Max. | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

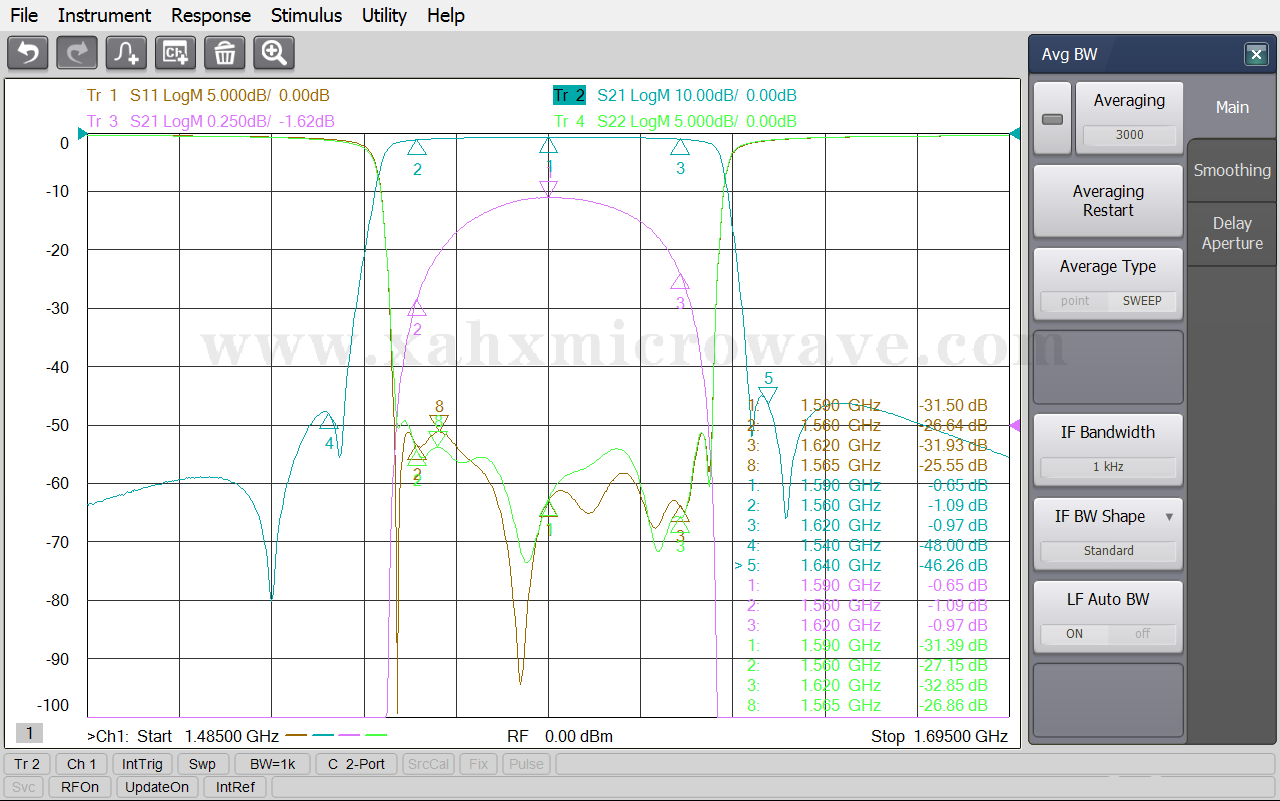

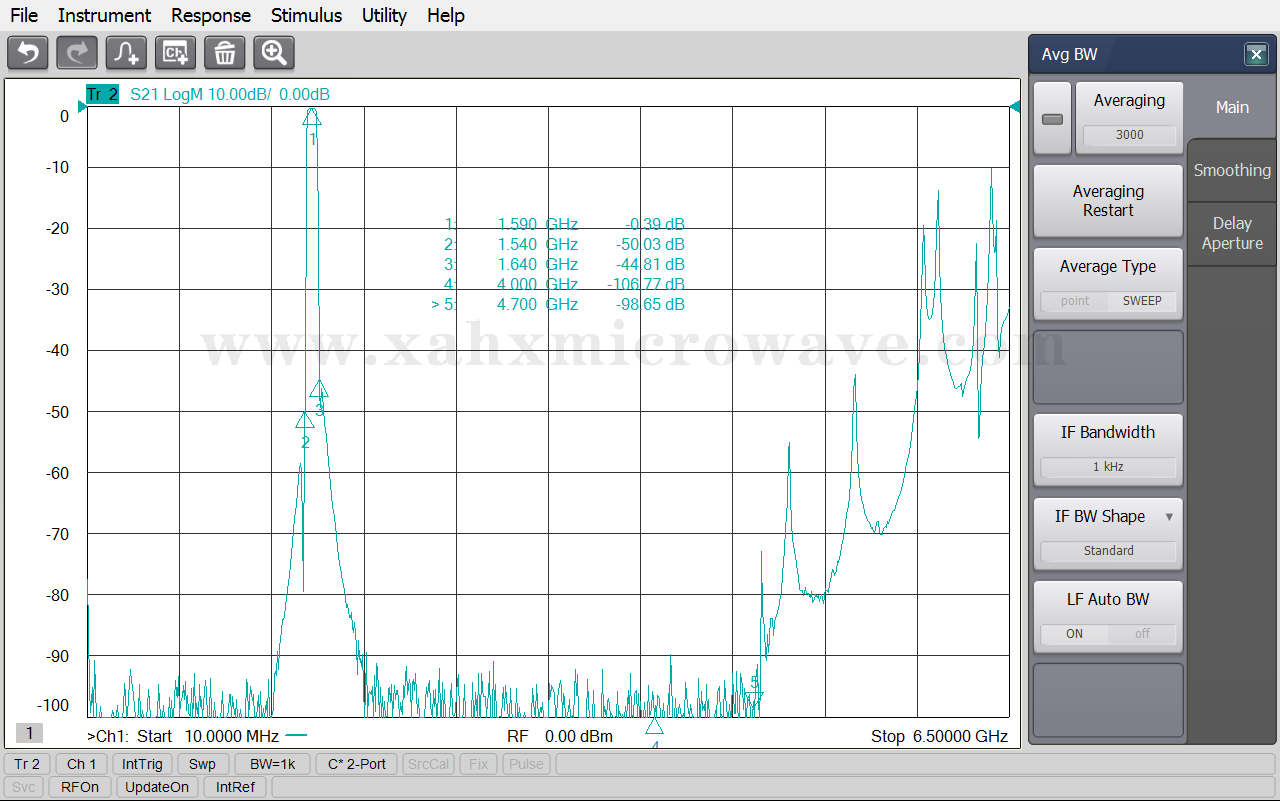

| Test Curve | |||
