| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1542.5MHz | |
| ● | Pass Band Frequency | 1525 ~ 1560MHz | |
| ● | Pass Band Insertion Loss | ≤2.2dB | |
| ● | Pass Band Ripple | ≤1.7dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥60dB @ DC ~ 1509MHz | ≥60dB @ 1576 ~ 4500MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -20℃ ~ +60℃ | |

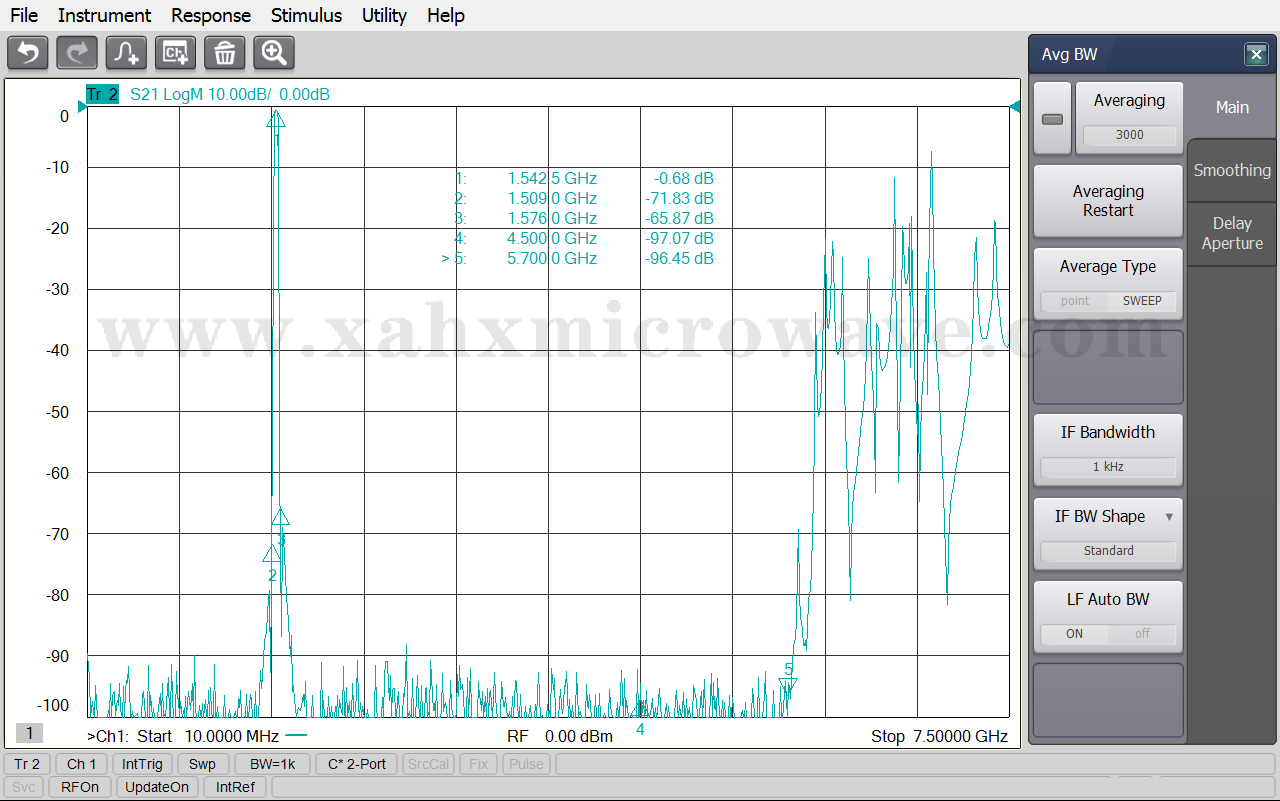

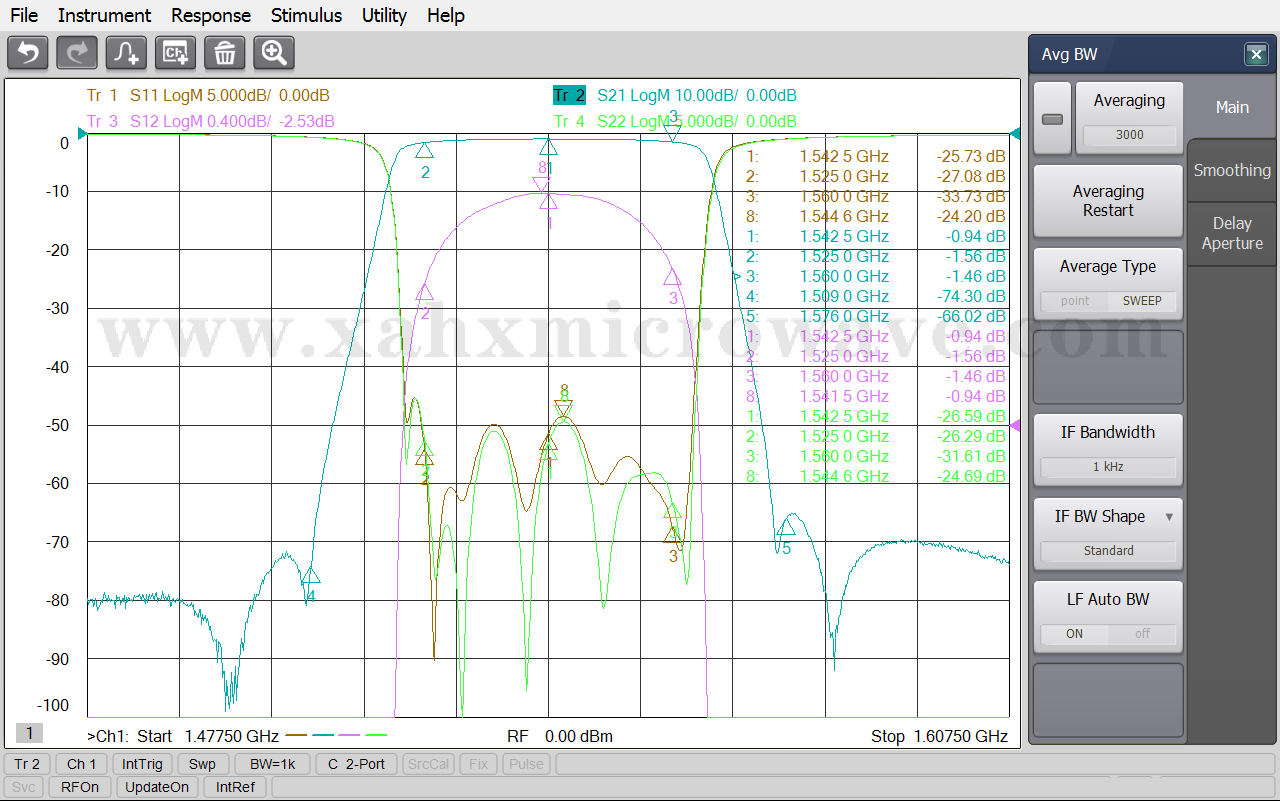

| Test Curve | |||
