| Technical Data Sheet | ||
| ● | Center Frequency(F0) | 3024MHz |
| ● | Design Bandwidth | About: 4.2MHz |
| ● | Insertion Loss @ F0 | ≤4.5dB @ F0 |
| ● | Return Loss @ F0 | ≥18dB @ F0 |
| ● | Stop Band Rejection | ≥60dB @ F0±25MHz（DC~2999MHz，3049MHz~8000MHz） |
| ● | Impedance | 50 Ohms |
| ● | Power | 5.0W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

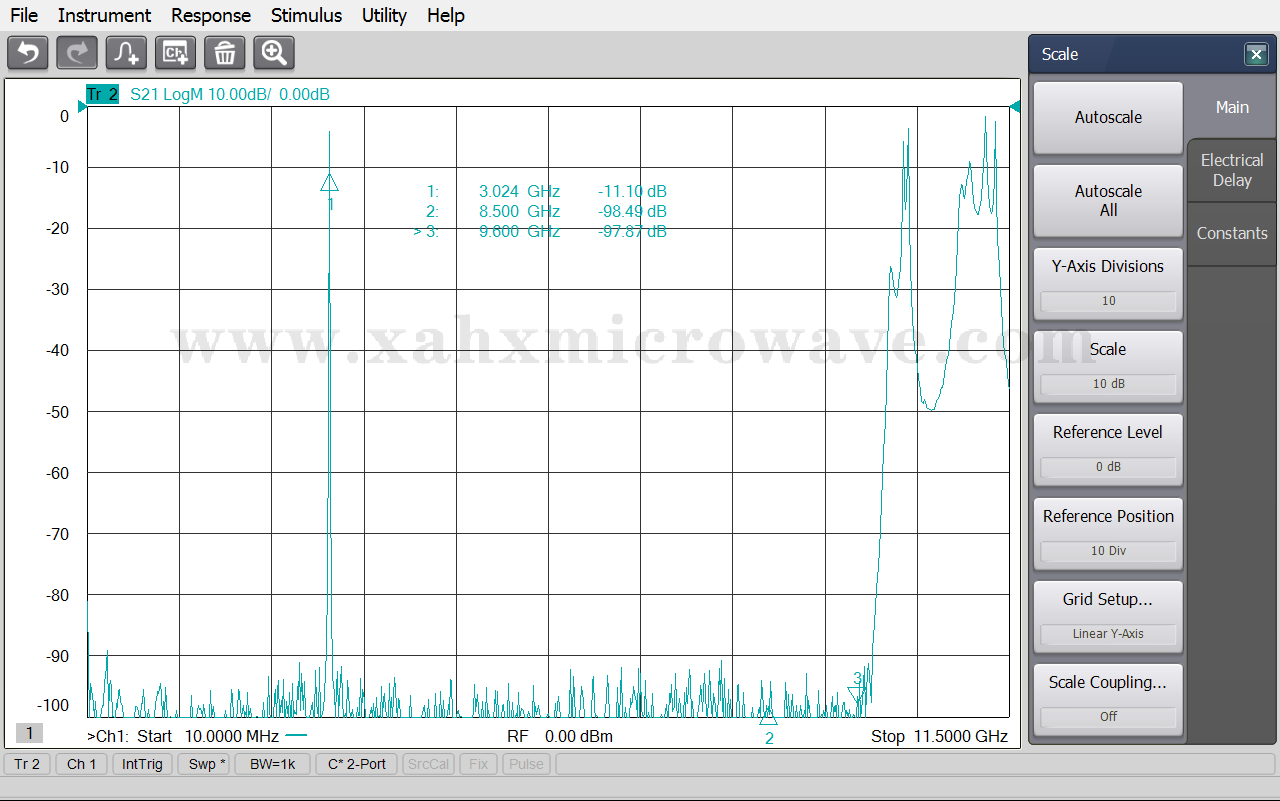

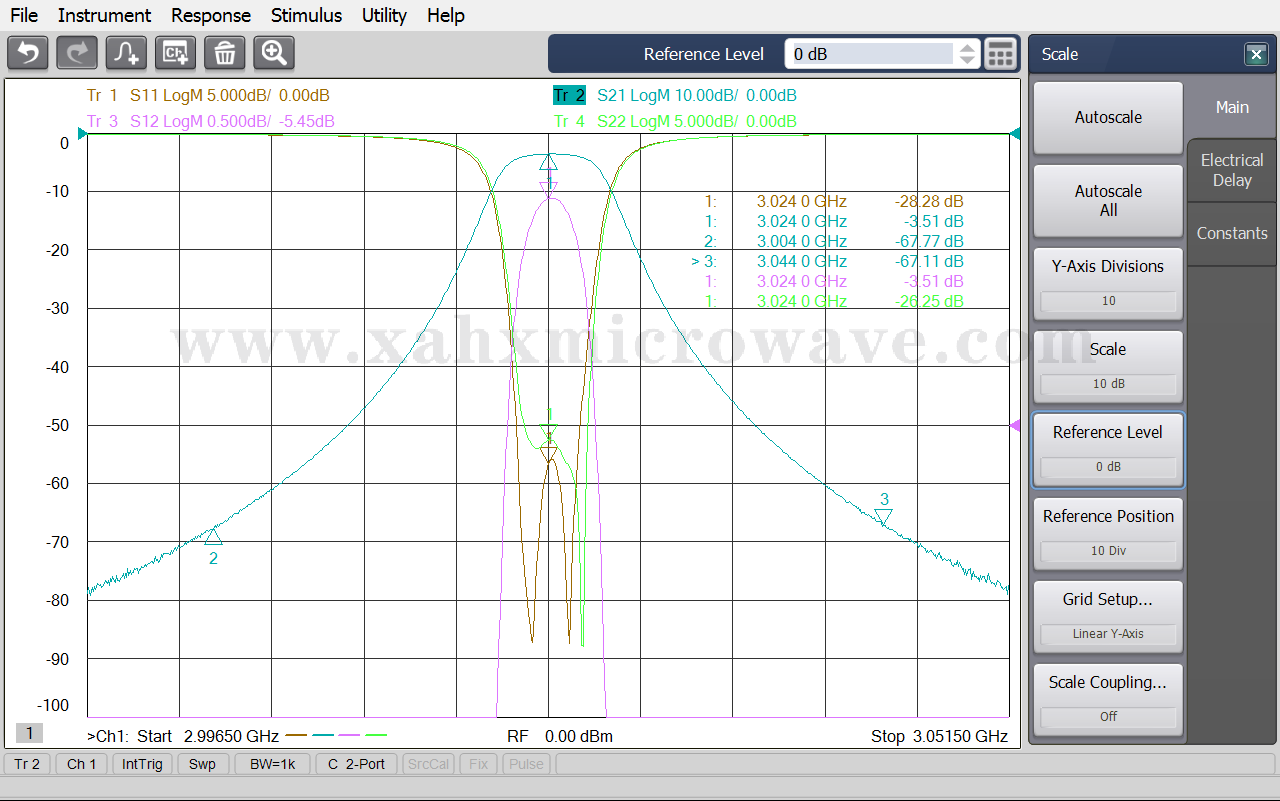

| Test Curve | ||
