Technical Data Sheet
●	Center Frequency(F0)	30GHz
●	Pass Band Frequency	20 ~ 40GHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.45dB
●	Pass Band Return Loss	≥15dB
●	Stop Band Rejection	≥80dB @ DC ~ 17000MHz	≥10dB @ 41000 ~ 43500MHz
		≥30dB @ 17000 ~ 19000MHz
●	Impedance	50 Ohms
●	Power Handling	5W Max.
●	Connectors	2.92mm(K)-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

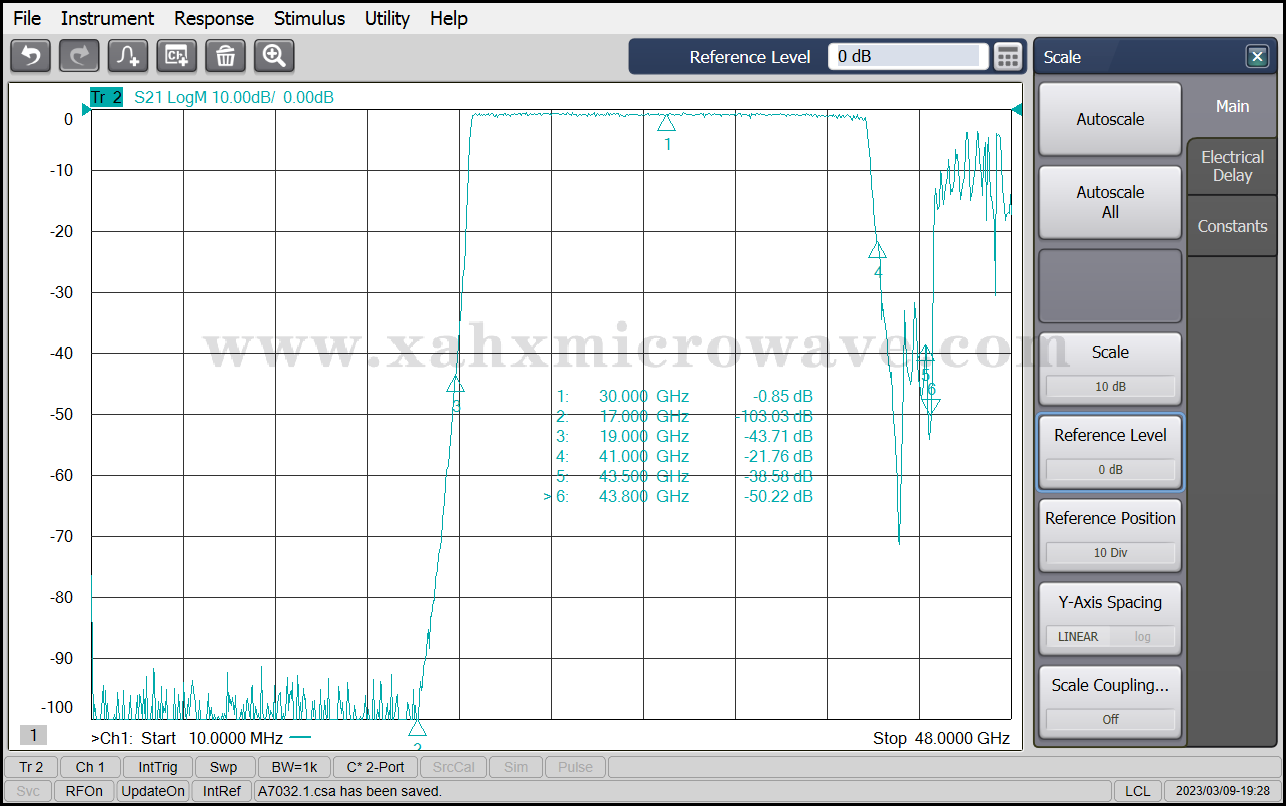

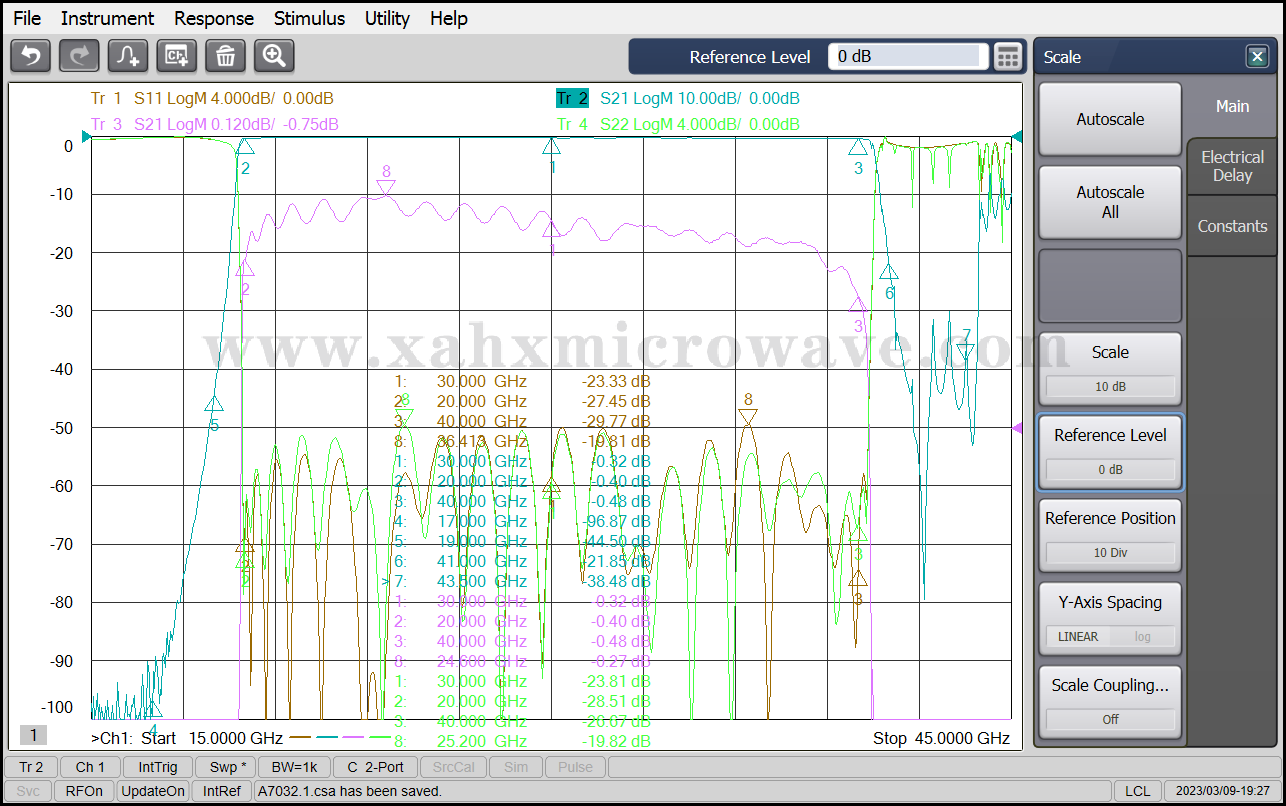

Test Curve
