Band Pass Filter

  • 1200-1300MHz Cavity Band Pass Filter

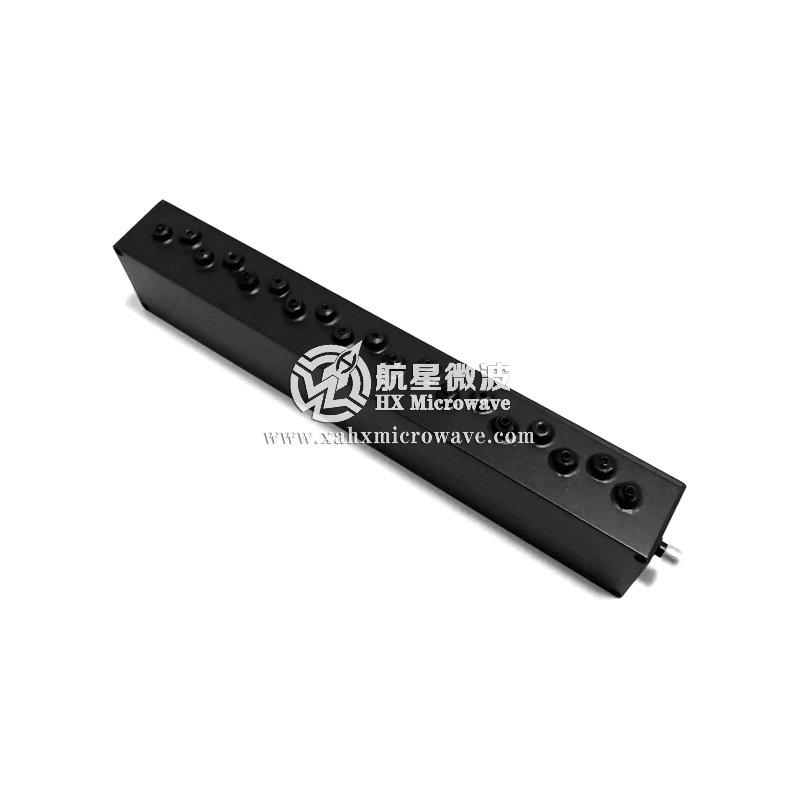

1200-1300MHz Cavity Band Pass Filter

1200-1300MHz Cavity Band Pass Filter

  • P/N：HXLBQ-DTA331
  • Pass Band Frequency：1200-1300MHz
  • Stop Band Attenuation：≥40dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high__Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigi
  • PDF technical index download
Technical Data Sheet
● Center Frequency 1250MHz
● Operating Frequency 1200～1300MHz
● Insertion Loss ≤1.0dB
● Ripple in Band ≤0.8dB
● VSWR ≤1.3:1
● Rejection ≥40dB@ Fc±30MHz(1170MHz，1330MHz)
≥60dB@ Fc±50MHz(1150MHz，1350MHz)
● Power ≤150W
● Impedance 50 ohms
● Connectors SMA-Female
● Surface Finish Black Paint
● Temperature Range -30℃～+70℃
Test Curve
