Technical Data Sheet
●	Center Frequency(F0)	41GHz
●	Pass Band Frequency	37.5 ~ 44.5GHz
●	Pass Band Insertion Loss	≤1.1dB
●	Pass Band Ripple	≤0.37dB
●	Pass Band Return Loss	≥18dB
●	Stop Band Rejection	≥80dB @ DC ~ 35.3GHz	≥70dB @ 47.5 ~ 48GHz
			≥80dB @ 48 ~ 54.5GHz
●	Impedance	50 Ohms
●	Power Handling	5W Max.
●	Connectors	2.4mm-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

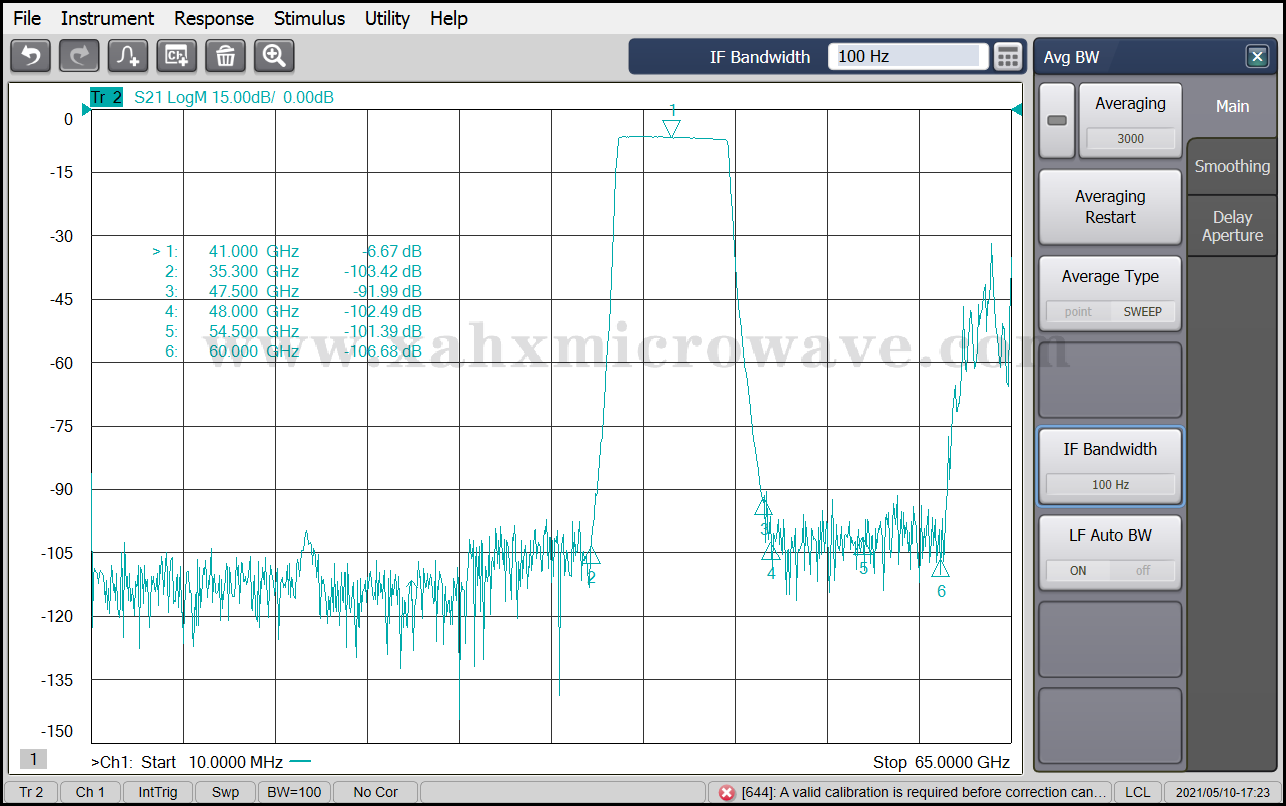

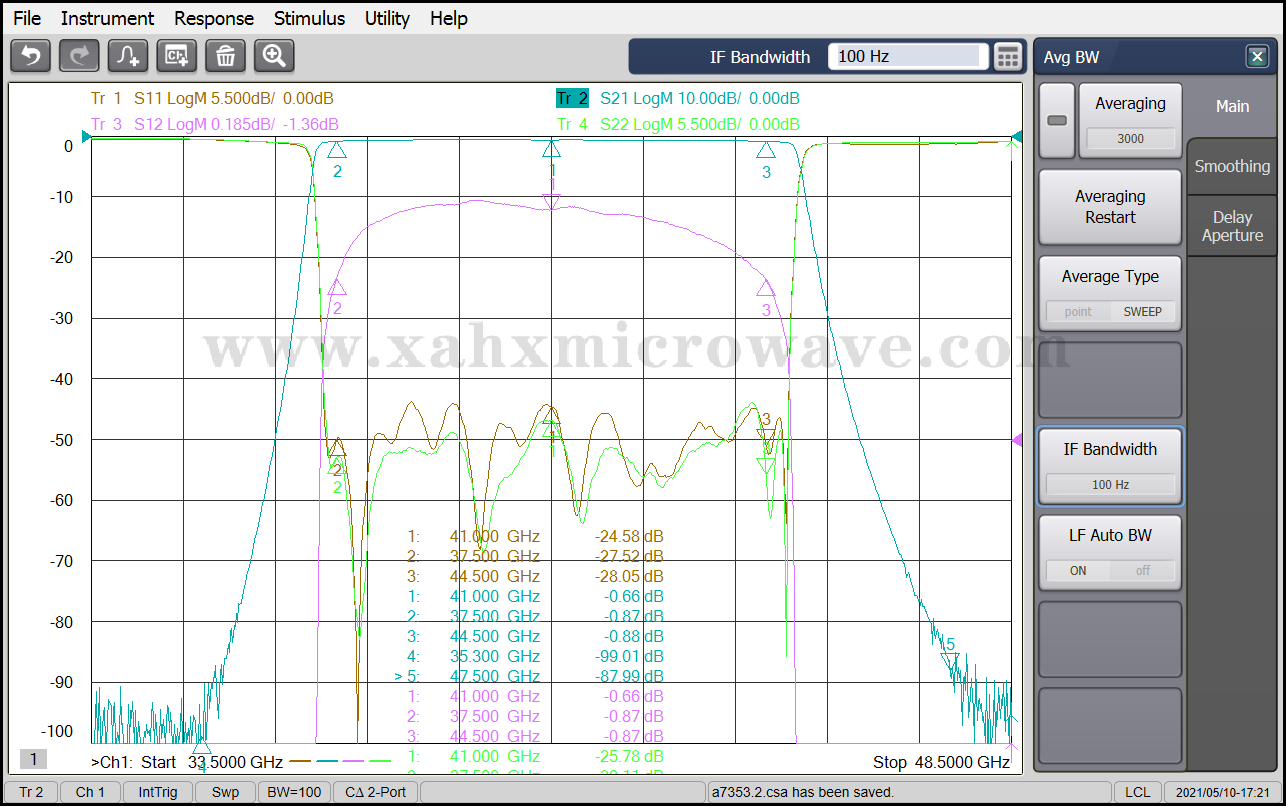

Test Curve
