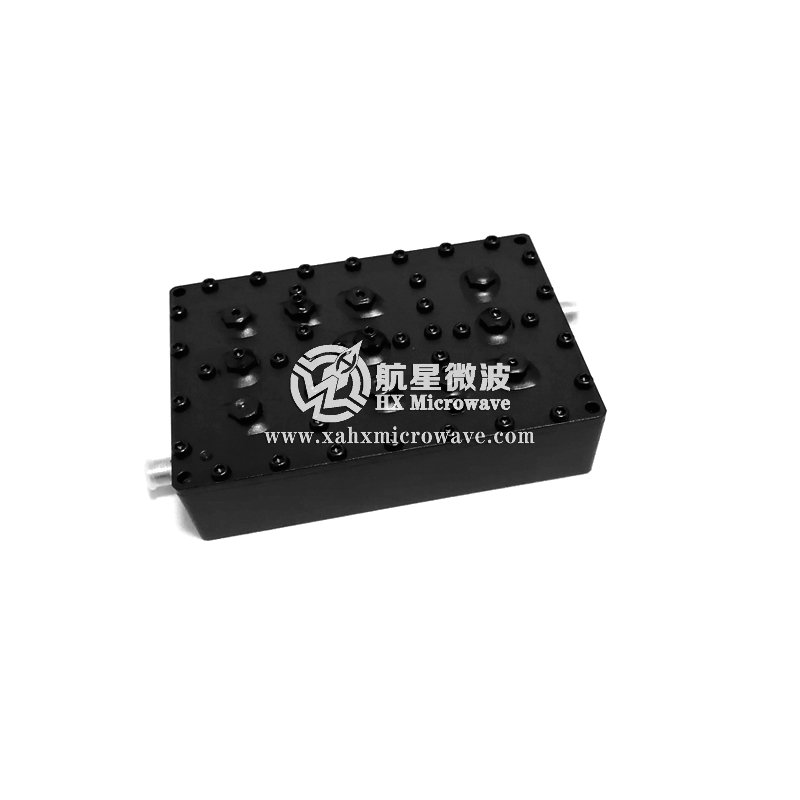

| Technical Data Sheet | ||
| ● | Center Frequency(F0) | 2042MHz |
| ● | Pass Band Frequency | 2037 ~ 2047MHz |
| ● | Pass Band Insertion Loss | ≤2.0dB |
| ● | Pass Band Ripple | ≤0.5dB |
| ● | Pass Band VSWR | ≤1.22:1 |
| ● | Stop Band Rejection | ≥40dB @ F0±20MHz (DC ~ 2022MHz , 2062 ~ 5000MHz) |
| ● | Impedance | 50 Ohms |
| ● | Power | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | -30℃ ~ +70℃ |
| Test Curve | ||
