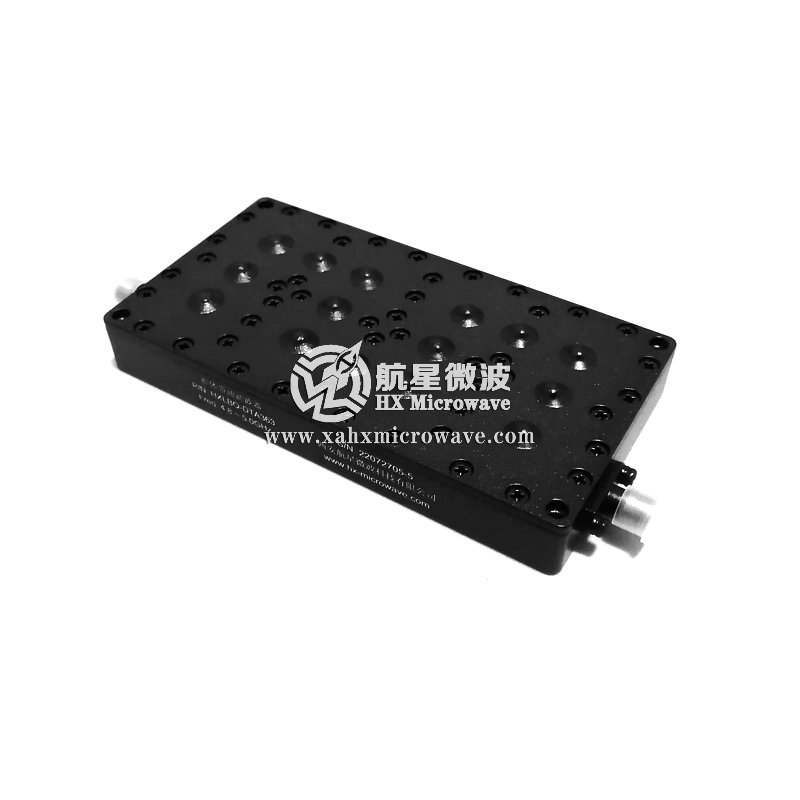

Technical Data Sheet
●	Center Frequency(F0)	4.9GHz
●	3.0dB Bandwidth	250MHz Max. (4.775 ~ 5.025GHz Max.)
●	Pass Band Frequency	4.8 ~ 5.0GHz
●	Pass Band Insertion Loss	≤1.0dB @ 4.8 ~ 5.0GHz
●	Pass Band Ripple	≤0.4dB @ 4.8 ~ 5.0GHz
●	Pass Band VSWR	≤1.22:1 @ 4.8 ~ 5.0GHz
●	Stop Band Rejection	≥60dB @ DC ~ 4.6GHz	≥60dB @ 5.2 ~ 8.0GHz
●	Impedance	50 Ohms
●	Power	40W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃
Test Curve
