Technical Data Sheet
●	Center Frequency(F0)	4025MHz
●	Pass Band Frequency	3550 ~ 4500MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band Ripple	≤1.0dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥80dB @ DC ~ 3280MHz	≥35dB @ 4600 ~ 4690GHz
		≥30dB @ 3280 ~ 3450MHz	≥80dB @ 4690 ~ 9000MHz
●	Impedance	50 Ohms
●	Power	5W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

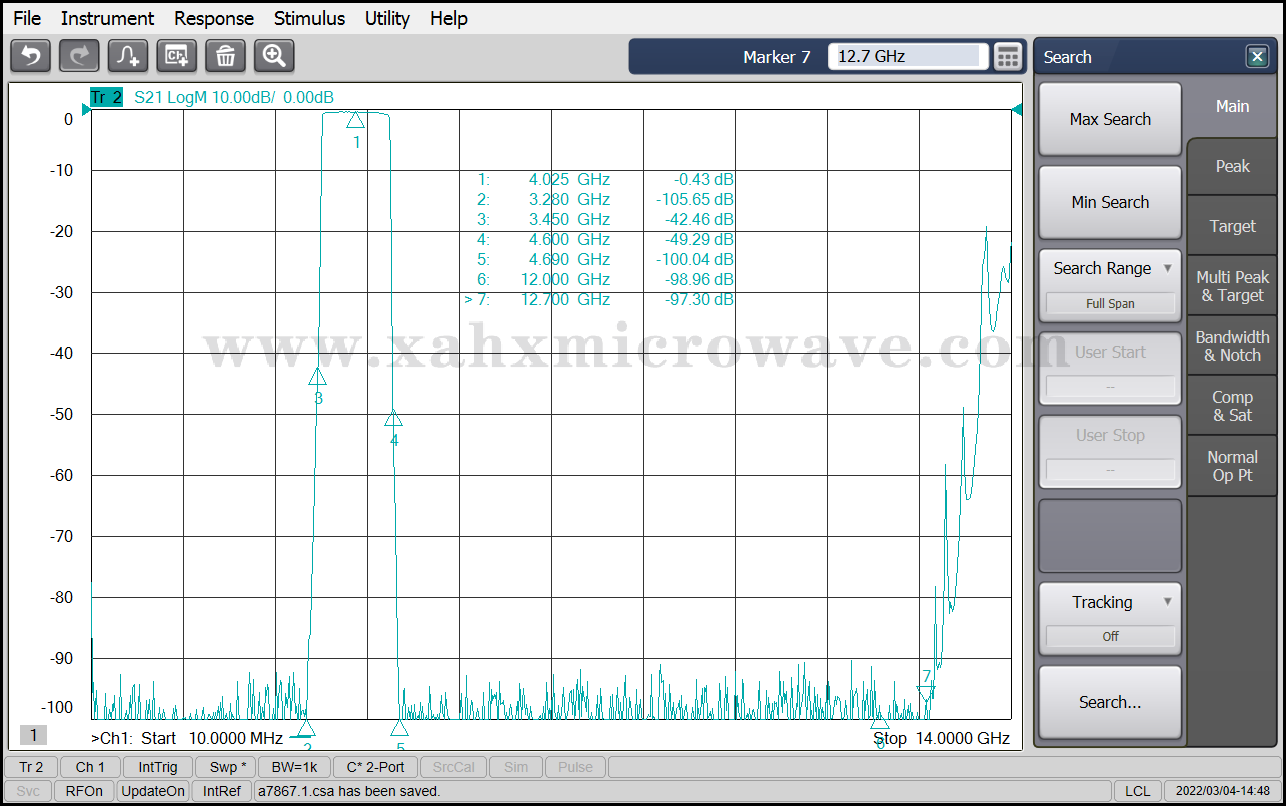

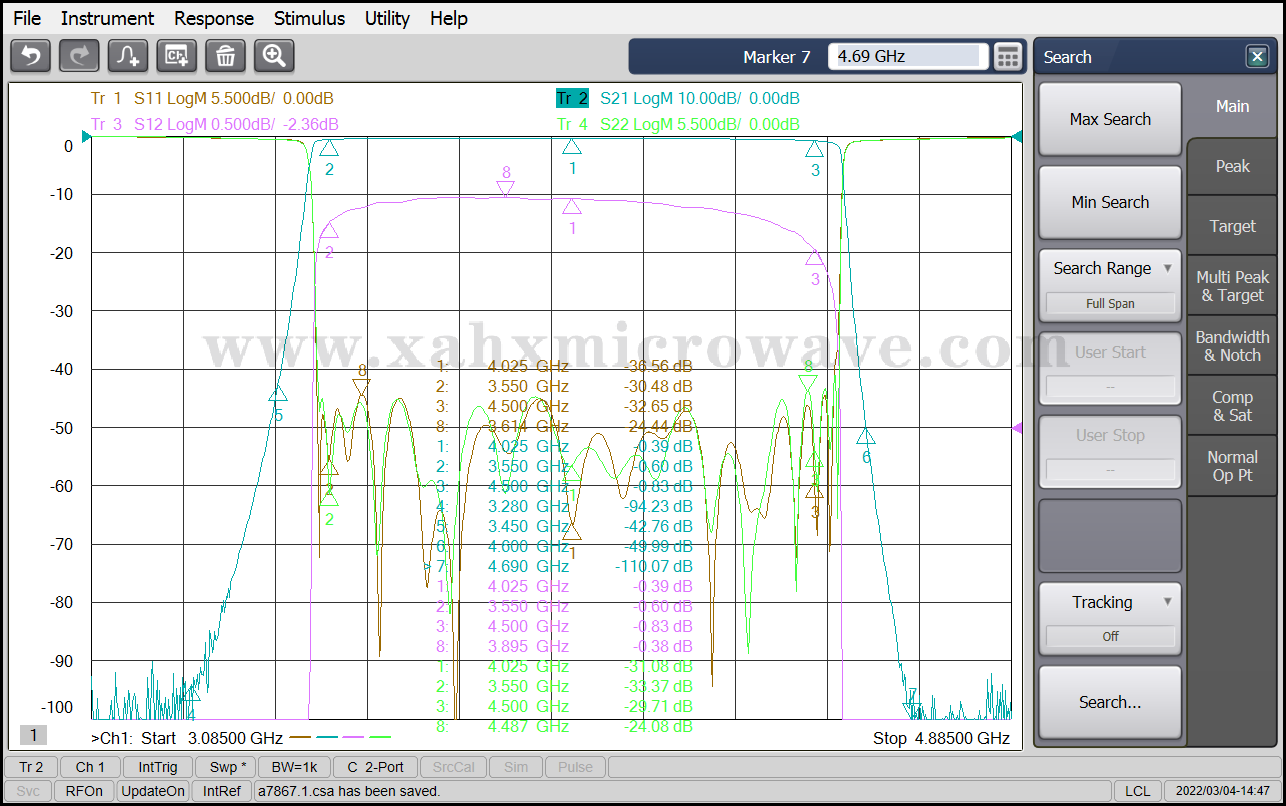

Test Curve
