Technical Data Sheet
●	Center Frequency(F0)	1.3GHz
●	Pass Band Bandwidth	200MHz (1.2 ~ 1.4GHz)
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.5dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥60dB @ DC ~ 1.15GHz	≥60dB @ 1.45 ~ 5.5GHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

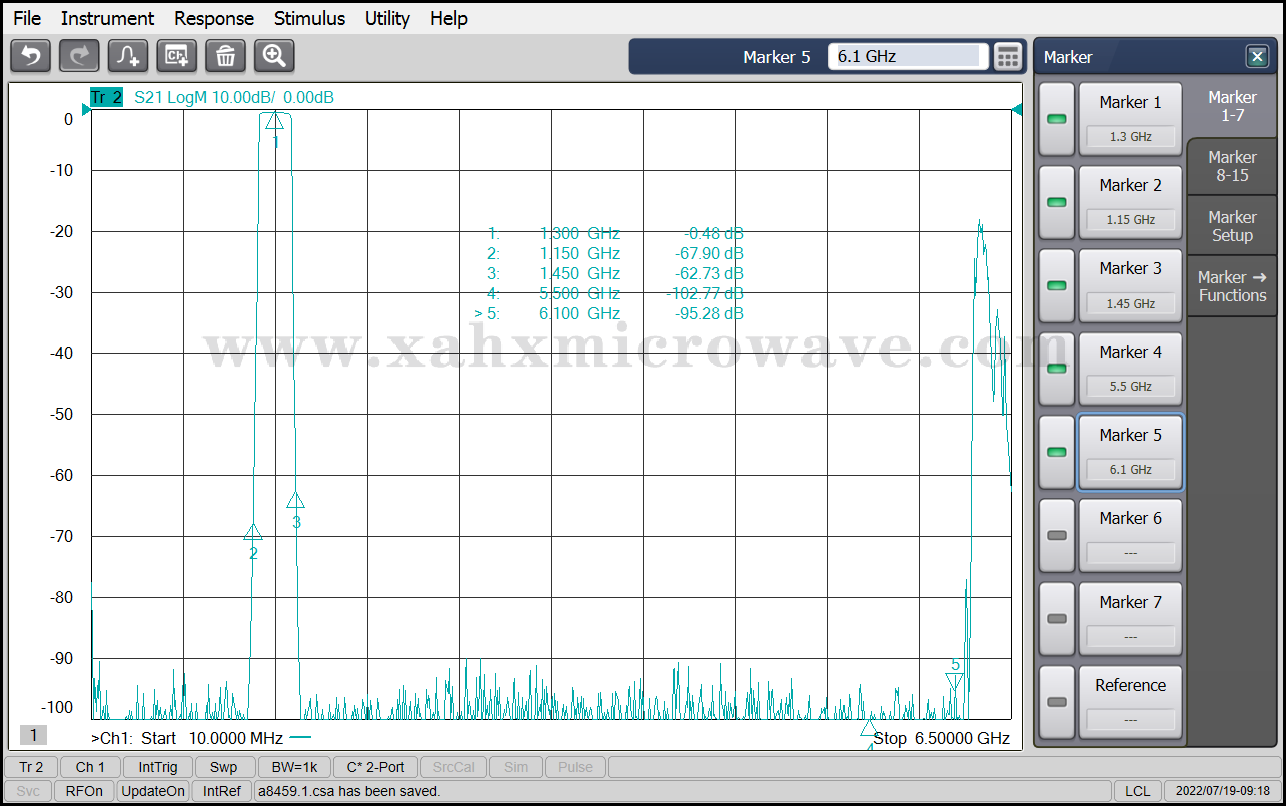

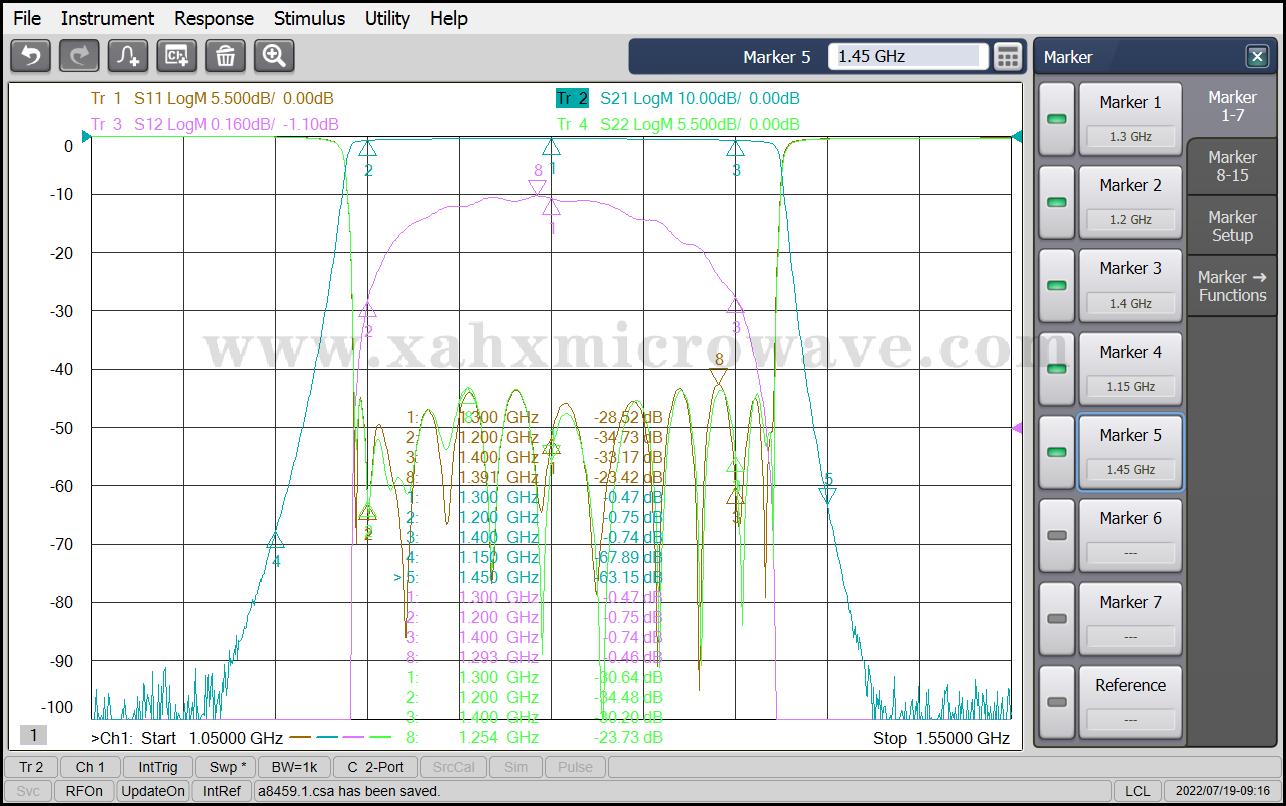

Test Curve
