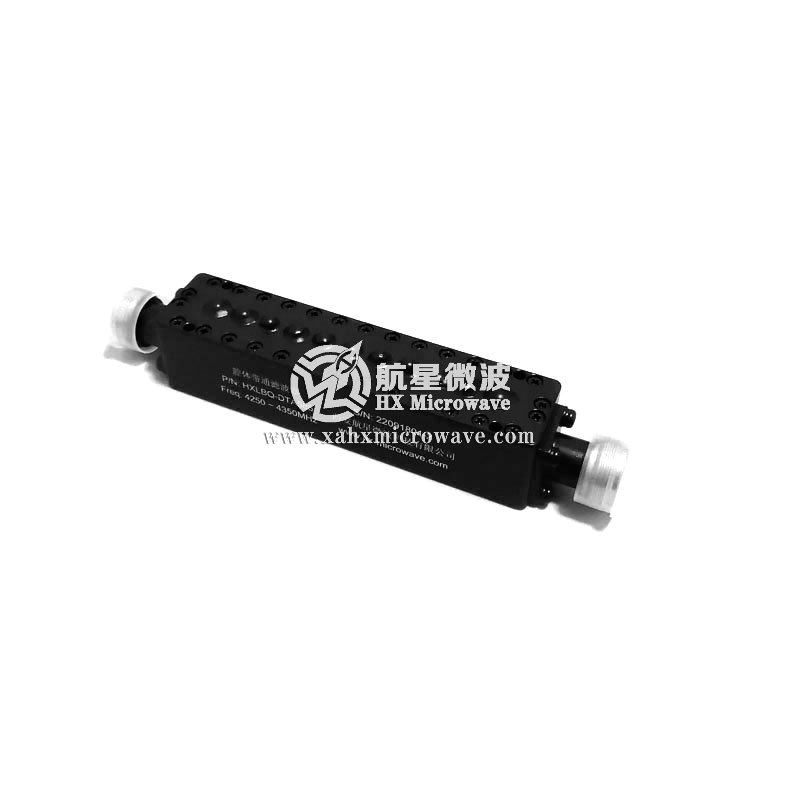

Technical Data Sheet
●	Center Frequency(F0)	4300MHz
●	Pass Band Frequency	4250 ~ 4350MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.3dB
●	Pass Band VSWR	≤1.2:1
●	Stop Band Rejection	≥55dB @ DC ~ 4050MHz	≥55dB @ 4550 ~ 7000MHz
●	Impedance	50 Ohms
●	Power Handling	50W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃
Test Curve
