Technical Data Sheet
●	Center Frequency(F0)	4687.5MHz
●	Pass Band Frequency	4680 ~ 4695MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band Ripple	≤0.3dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥50dB @ DC ~ 4630MHz	≥50dB @ 4745 ~ 9000MHz
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

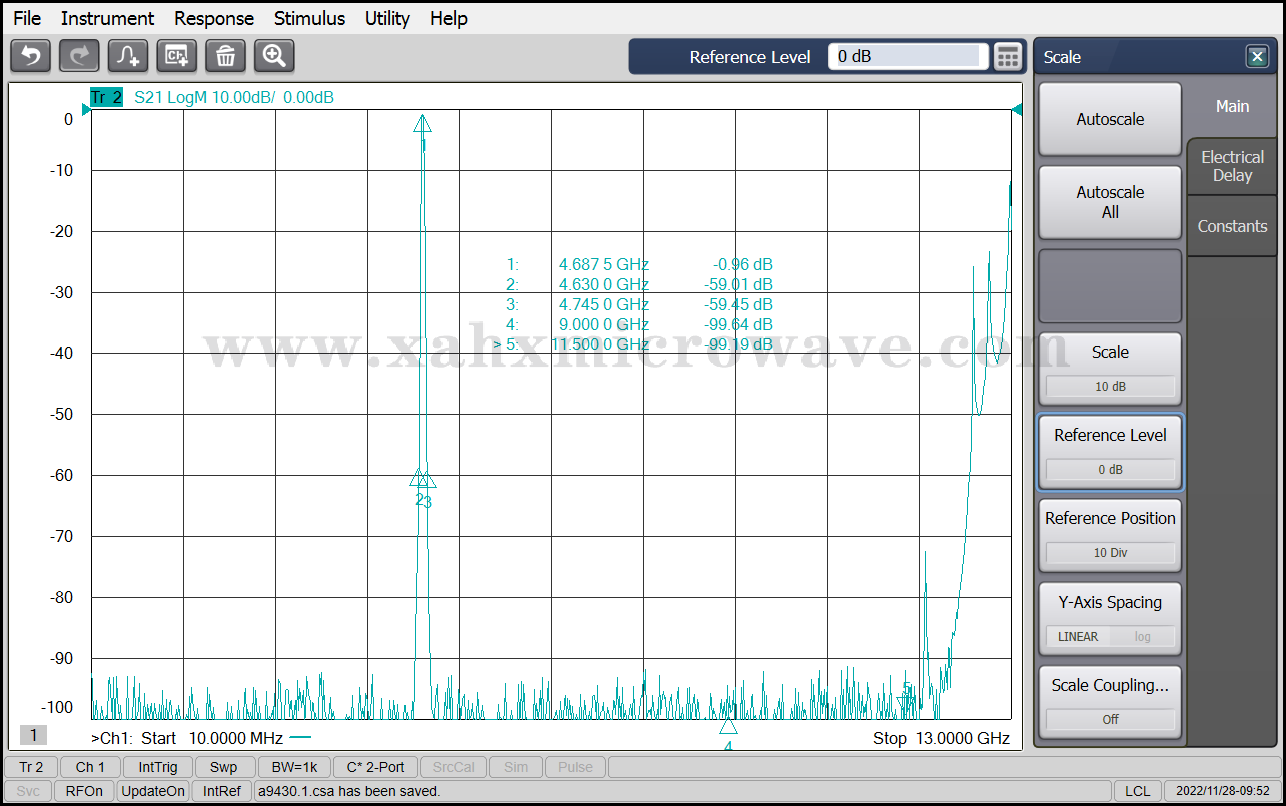

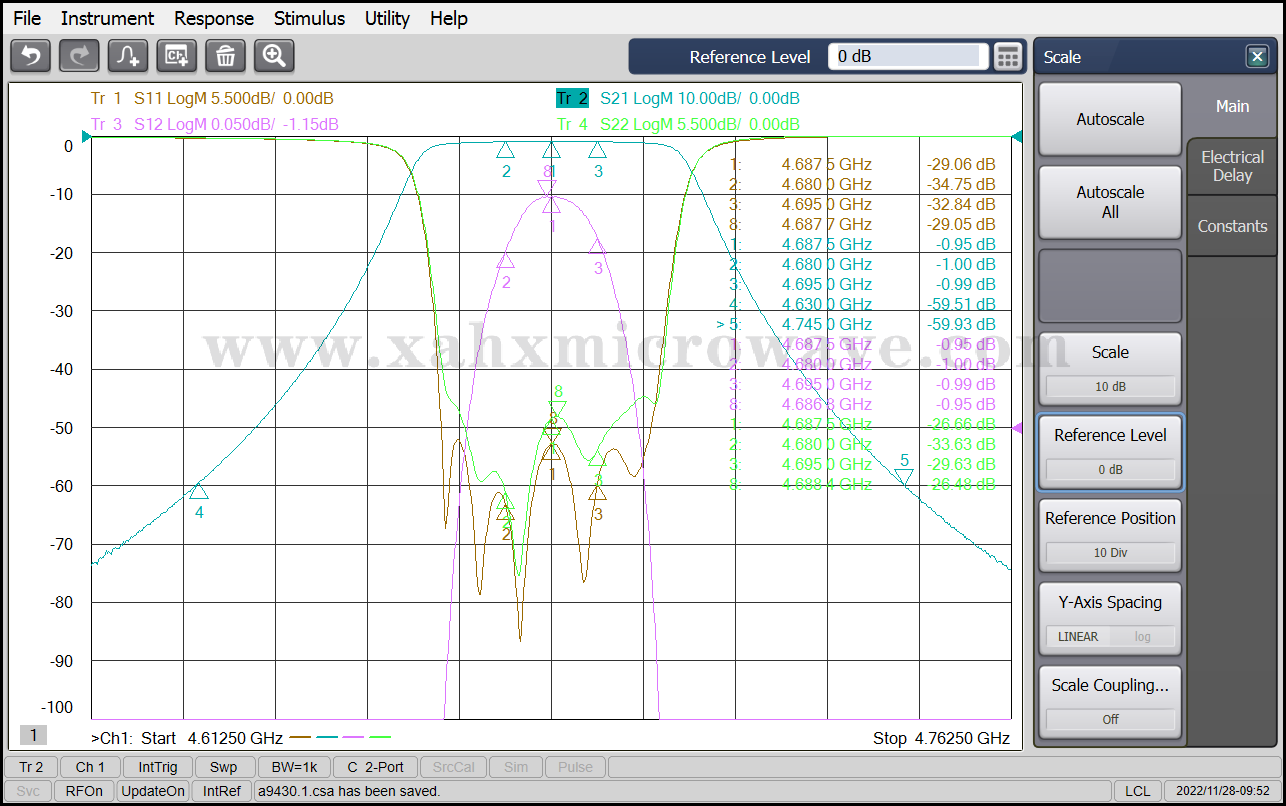

Test Curve
