Technical Data Sheet
●	Center Frequency(F0)	12.5GHz
●	Pass Band Frequency	11 ~ 14GHz
●	Pass Band Insertion Loss	≤0.6dB
●	Pass Band Ripple	≤0.25dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥80dB @ DC ~ 9.1GHz	≥60dB @ 15.3 ~ 15.8GHz
		≥60dB @ 9.1 ~ 9.7GHz	≥80dB @ 15.8 ~ 21GHz
●	Impedance	50 Ohms
●	Power Handling	10W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

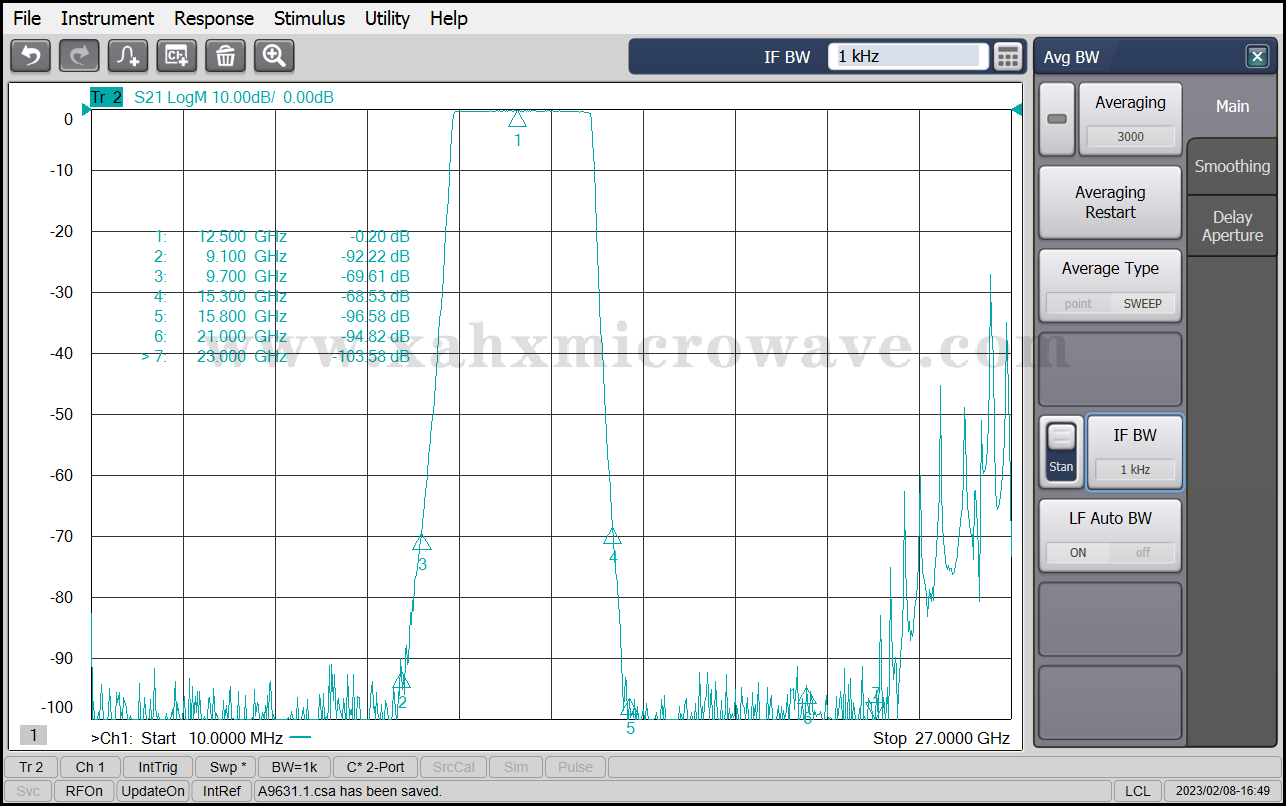

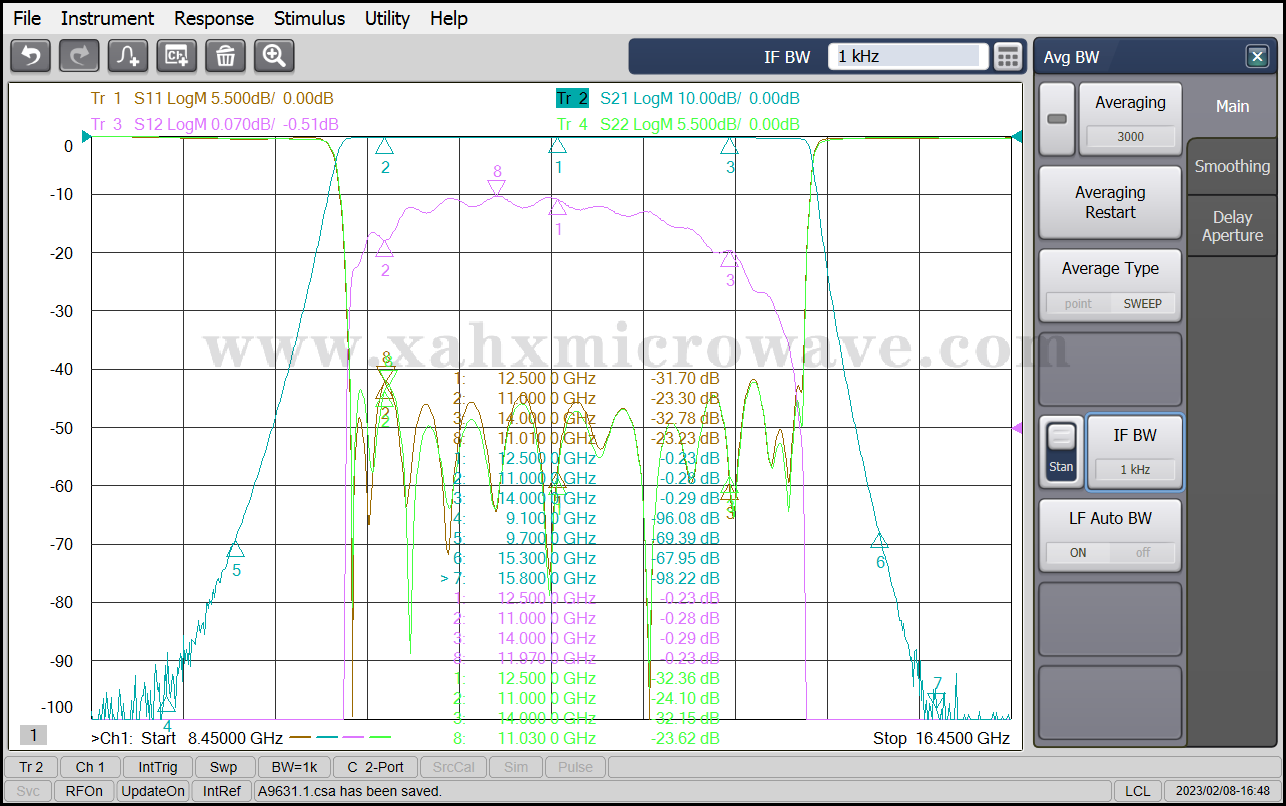

Test Curve
