Technical Data Sheet
●	Center Frequency(F0)	922.5MHz
●	Pass Band Frequency	920 ~ 925MHz
●	Pass Band Insertion Loss	≤3.0dB
●	Pass Band Ripple	≤1.5dB
●	Pass Band Return Loss	≥18dB
●	Stop Band Rejection	≥40dB @ Fc±5.0MHz (DC ~ 915MHz , 930 ~ 1500MHz)
●	Impedance	50 Ohms
●	Power	10W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

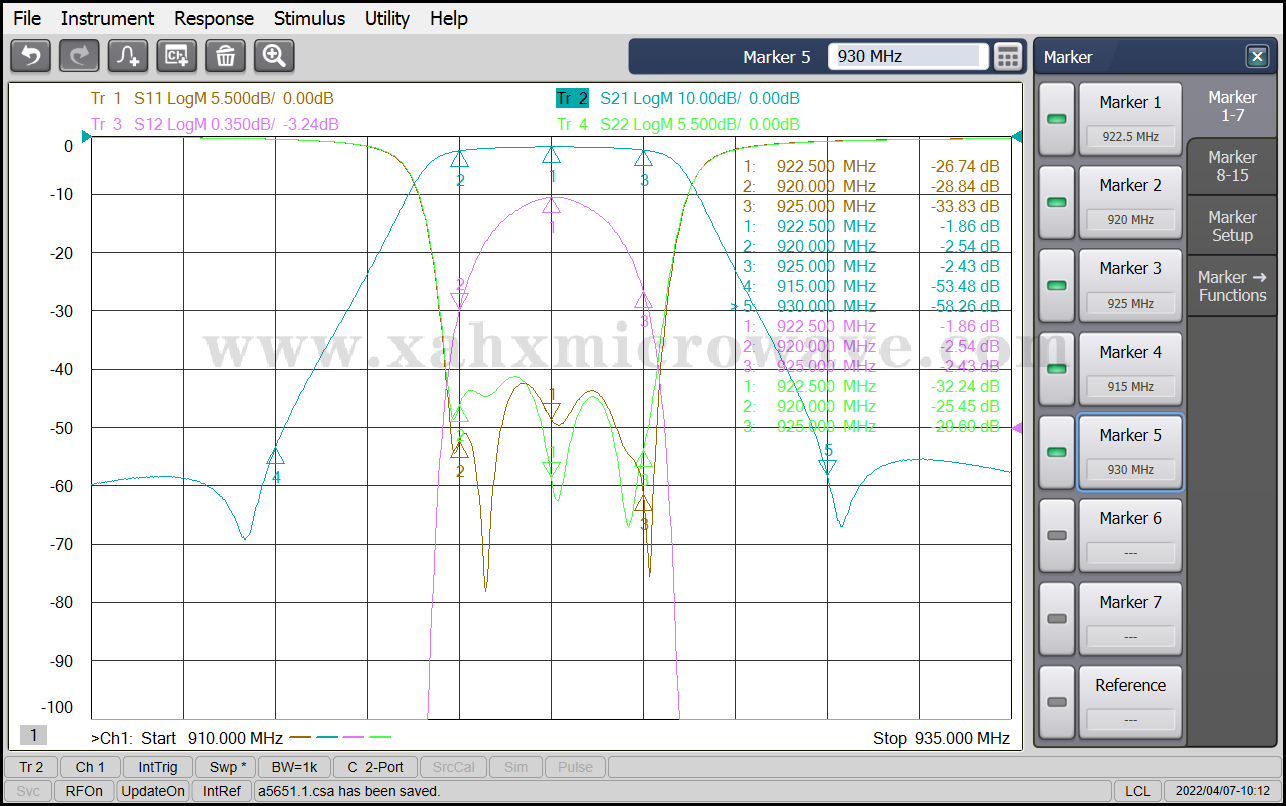

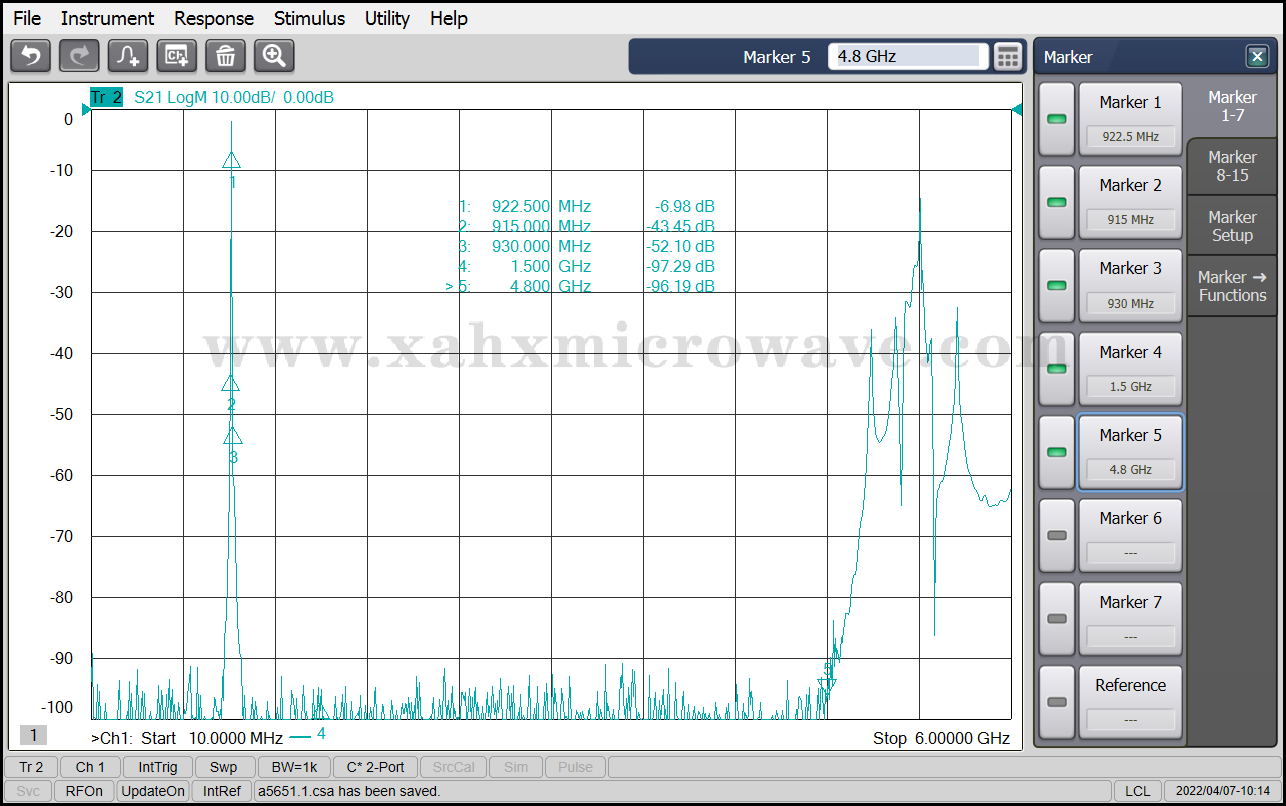

Test Curve
