Technical Data Sheet
●	Center Frequency(F0)	8482MHz
●	Pass Band Frequency	8452 ~ 8512MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.08dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 8072MHz	≥50dB @ 8712 ~ 8892MHz
		≥50dB @ 8072 ~ 8252MHz	≥80dB @ 8892 ~ 17000MHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

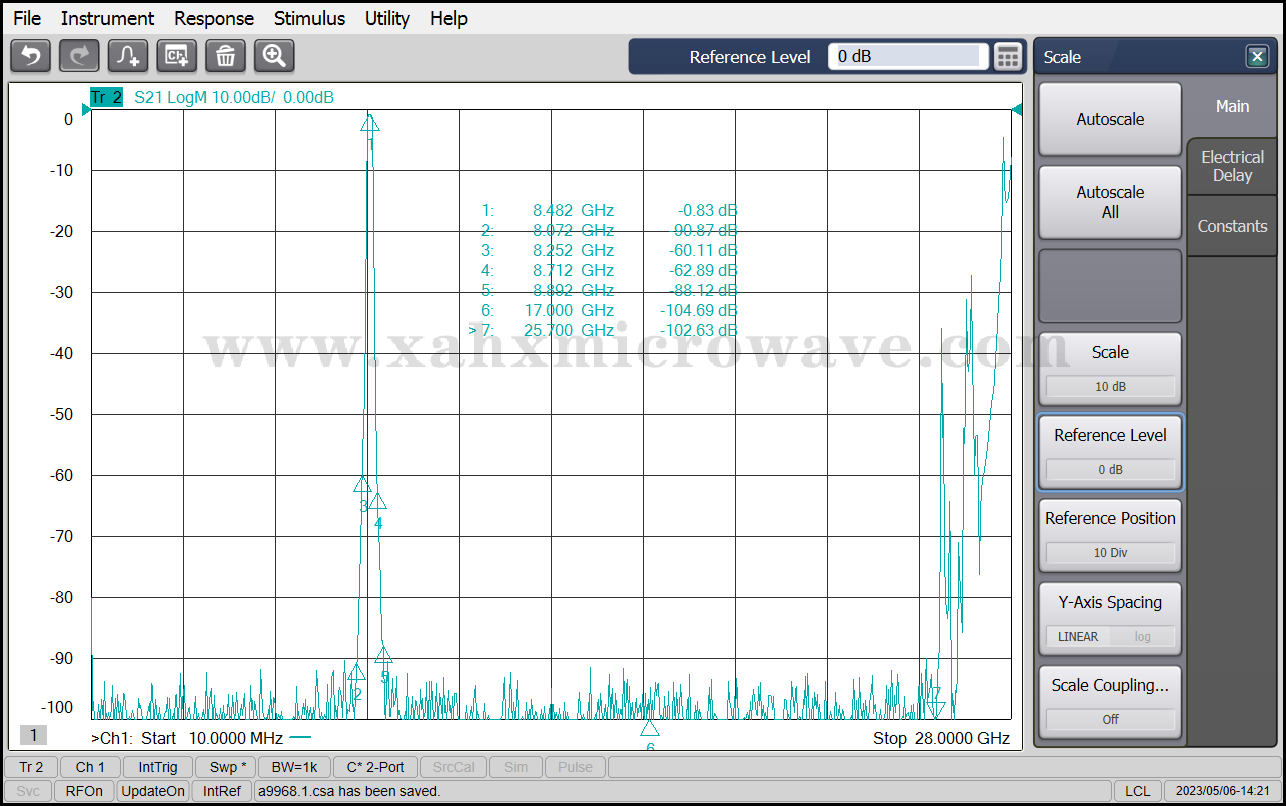

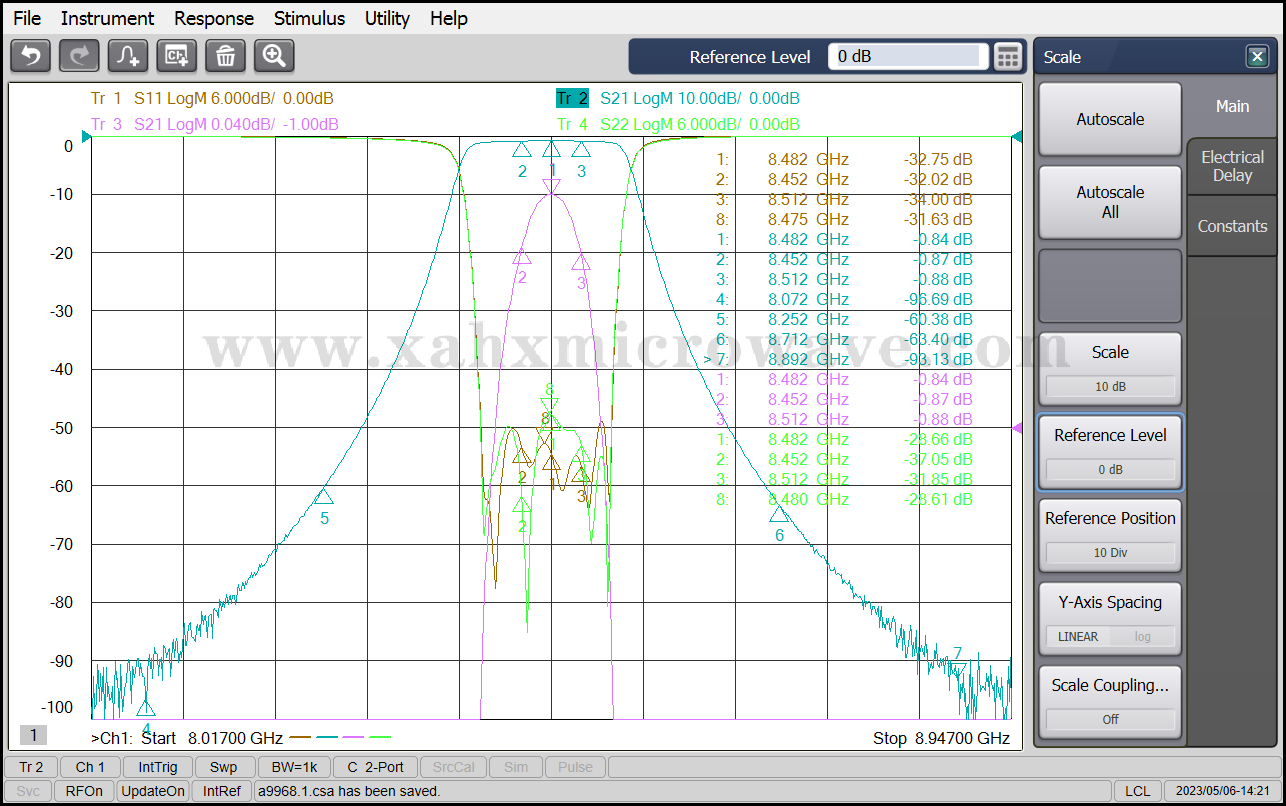

Test Curve
