Technical Data Sheet
●	Center Frequency(F0)	13125MHz
●	Pass Band Frequency	12250 ~ 14000MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.45dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥80dB @ DC ~ 11000MHz	≥80dB @ 15100 ~ 30000MHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

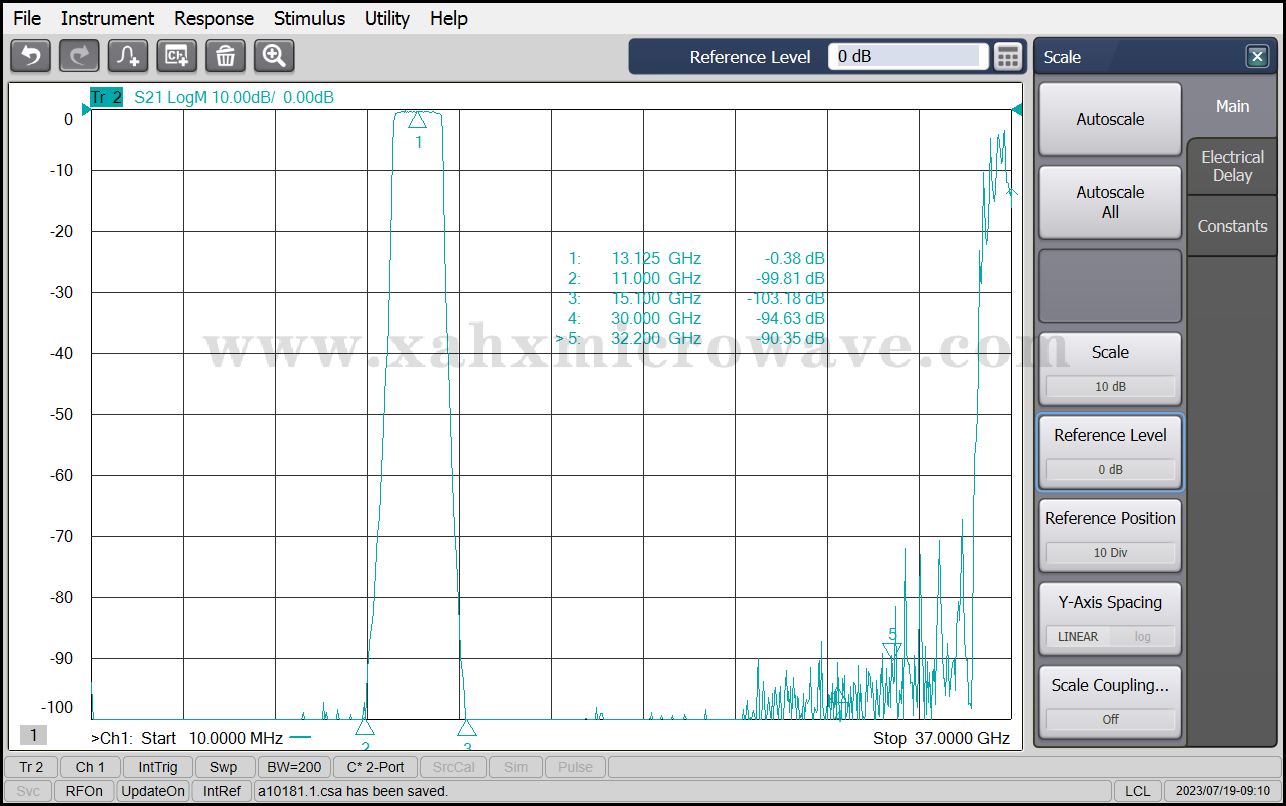

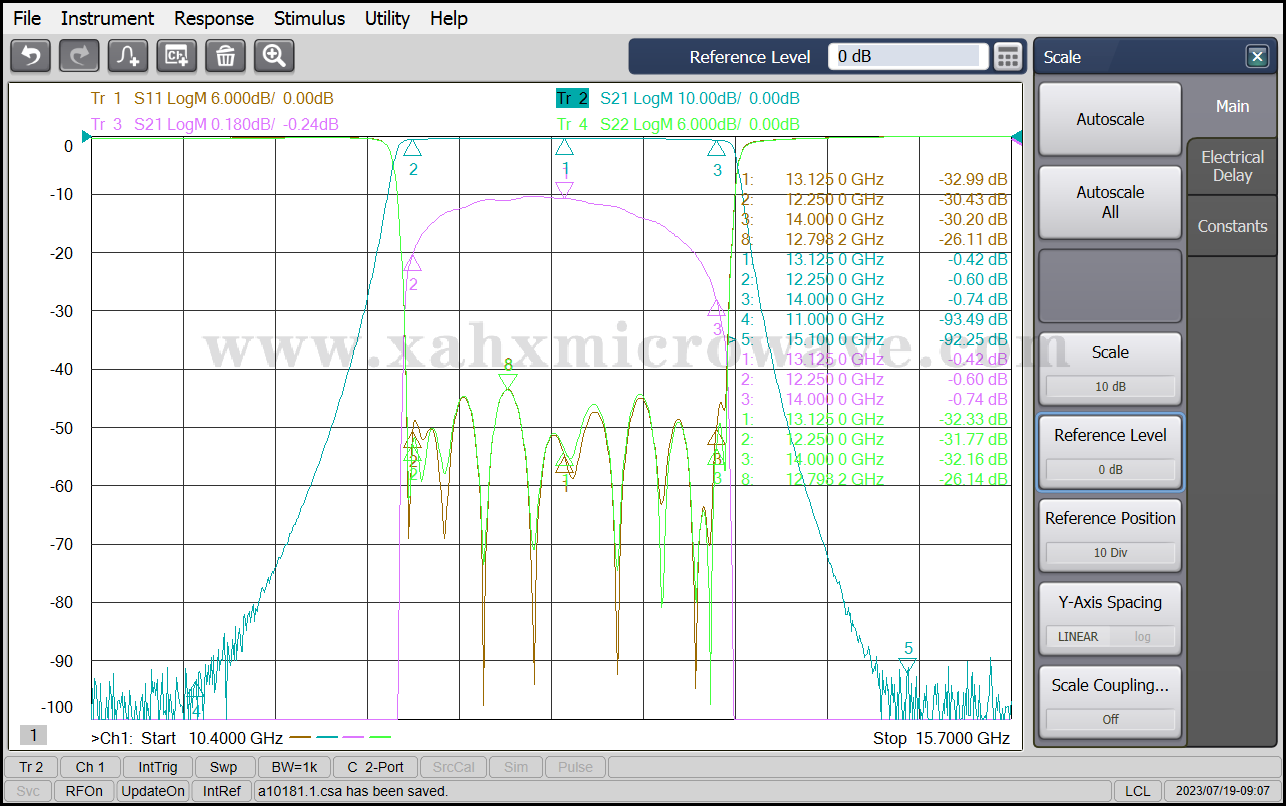

Test Curve
